£1,108.69 (options vary)
Warranty 1 year
Available to order
183 five-star Google reviews
Delivery
We're closed for a family wedding from Monday 26 to Wednesday 28 October. Orders placed during this time are processed when we reopen on Thursday 29 October.
Free UK delivery on orders over £50
Every option below is priced live from the shop. Choose on this page or in the panel above.
| Option | Price |
|---|---|
| 190W Rigid / Small Van A | £1,108.69 |
| 190W Rigid / Small Van B | £1,108.69 |
| 190W Rigid / Small Van C | £1,108.69 |
| 190W Rigid / Small Van D | £1,108.69 |
| 190W Rigid / Large Van 1 | £1,128.69 |
| 190W Rigid / Large Van 2 | £1,128.69 |
| 190W Rigid / Large Van 3 | £1,128.69 |
| 190W Rigid / Large Van 4 | £1,128.69 |
| 190W Rigid / Large Van 5 | £1,128.69 |
| 190W Rigid / Large Van 6 | £1,128.69 |
| 150W Flexible / Small Van A | £1,184.33 |
| 150W Flexible / Small Van B | £1,184.33 |
| 150W Flexible / Small Van C | £1,184.33 |
| 150W Flexible / Small Van D | £1,184.33 |
| 150W Flexible / Large Van 1 | £1,204.33 |
| 150W Flexible / Large Van 2 | £1,204.33 |
| 150W Flexible / Large Van 3 | £1,204.33 |
| 150W Flexible / Large Van 4 | £1,204.33 |
| 150W Flexible / Large Van 5 | £1,204.33 |
| 150W Flexible / Large Van 6 | £1,204.33 |

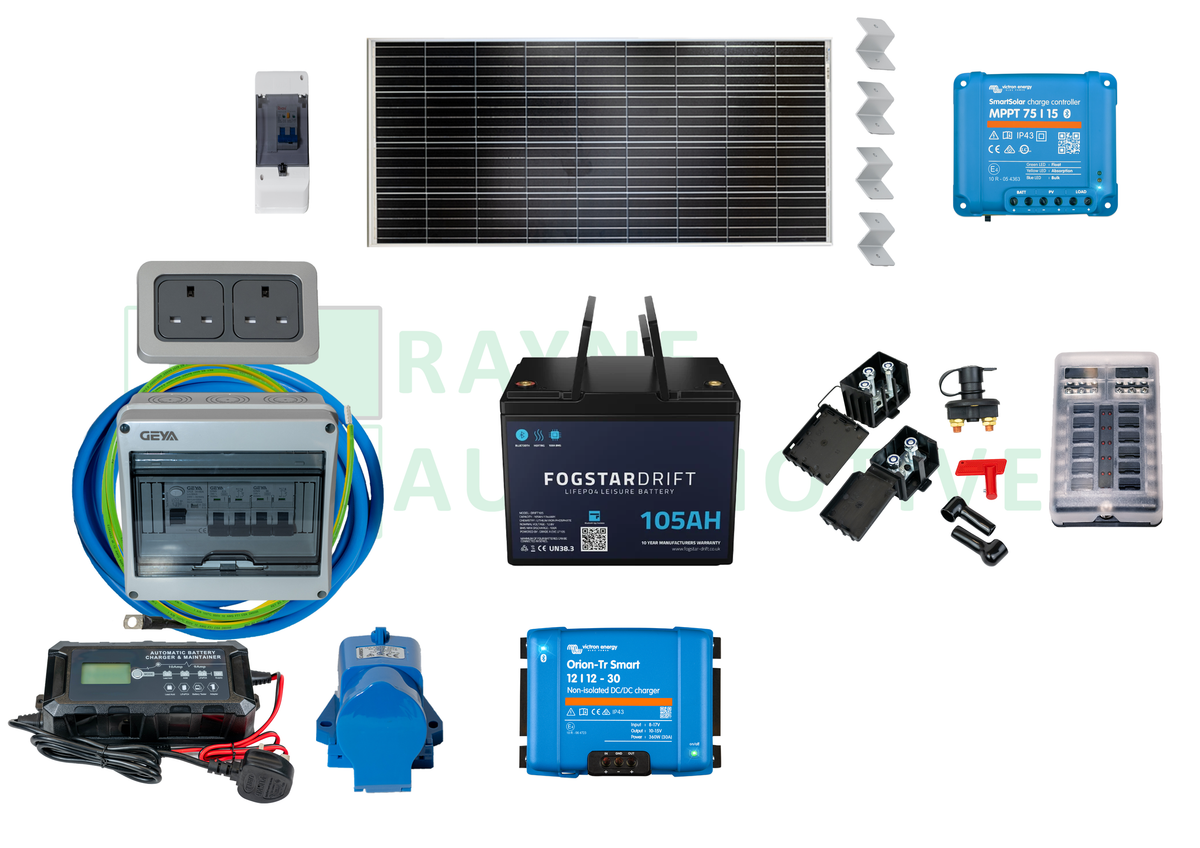

One purchase and the whole electrical system of your camper is sorted — split charge, solar, mains hook up and charging, and the battery to hold your energy in. The aim here is to cover all of your fusing, switching, wiring, battery and charging for the complete electrical system. Every part is specified to work together: the charger suits the battery, the cable suits the charger, the fuse box distributes it all safely. This is the component version: the 12V Core Install Kit gives you the Orion Smart 30A charger, 12-way fuse box, busbar and isolator set, and the van layout wiring loom; the solar kit adds up to 190W of harvesting with its SmartSolar MPPT controller; the mains hook-up kit brings the 10A charger, consumer unit, inlet and sockets. If you want a conventional, self-mounted/connected install with layout freedom — this is it. Charging comes from three directions: 30A from the alternator on the drive, solar when parked, and 10A from the mains when hooked up. The included Fogstar Drift 105Ah lithium battery shows its charge state live in the app.
454Wh
approx. 35Ah per day141Wh
approx. 11Ah per day359Wh
approx. 28Ah per day111Wh
approx. 9Ah per dayReal UK seasonal estimates from our power calculator's solar model — 2.39 effective sun-hours/day in summer, 0.74 in winter. Yields shown per full day.
Based on the System Builder’s appliance power and daily-use settings, with a 105Ah × 12.8V = 1344Wh lithium battery. Each tile shows one load on its own, with no solar or alternator charging; no reserve or losses are deducted. Real mixed-use runtime will be shorter.
~4.2 days
40W × 8h/day = 320Wh/day~33.6 days
8W × 5h/day = 40Wh/day~33.6 days
20W × 2h/day = 40Wh/day~14.9 days
30W × 3h/day = 90Wh/day~19.1 days
8.8W × 8h/day = 70.4Wh/day~89.6 days
60W × 0.25h/day = 15Wh/dayCharger, battery, solar, mains — sized for each other and supplied together. One matched system, one warranty point, one place to go if you ever need help.
Lithium takes charge fast — 30A on the drive refills the 105Ah battery from half in under two hours. The sweet spot of the range for weekend use.
The 12-way fuse box gives every circuit its own fuse and one tidy distribution point — safer than piggy-backing feeds, and ready for the loads you'll add later.
Bluetooth in the DC-DC charger and MPPT controller (VictronConnect) and in the battery (Fogstar app) — live charge state everywhere it matters.
clean pass-through cable entry for the solar run
your 240V outlets and 12V fittings for the living area
not supplied with the mount hardware

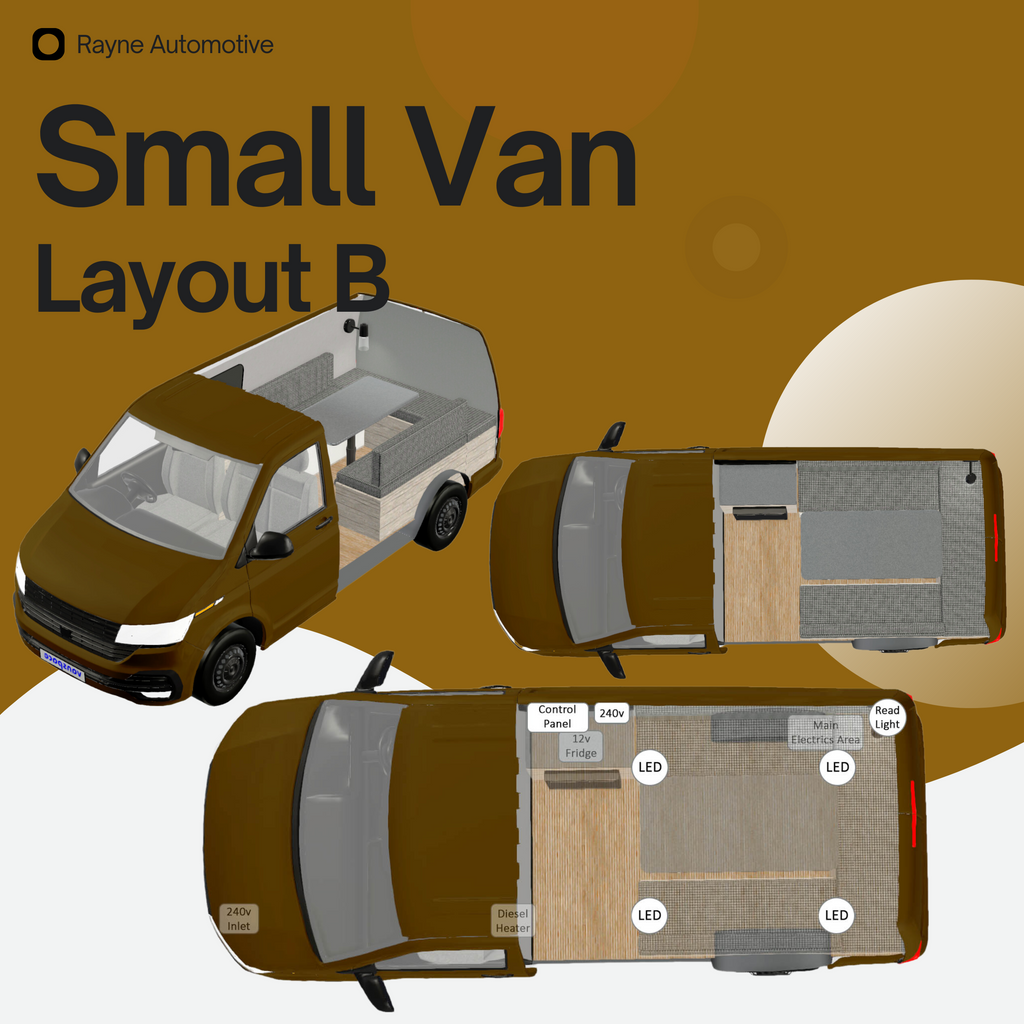

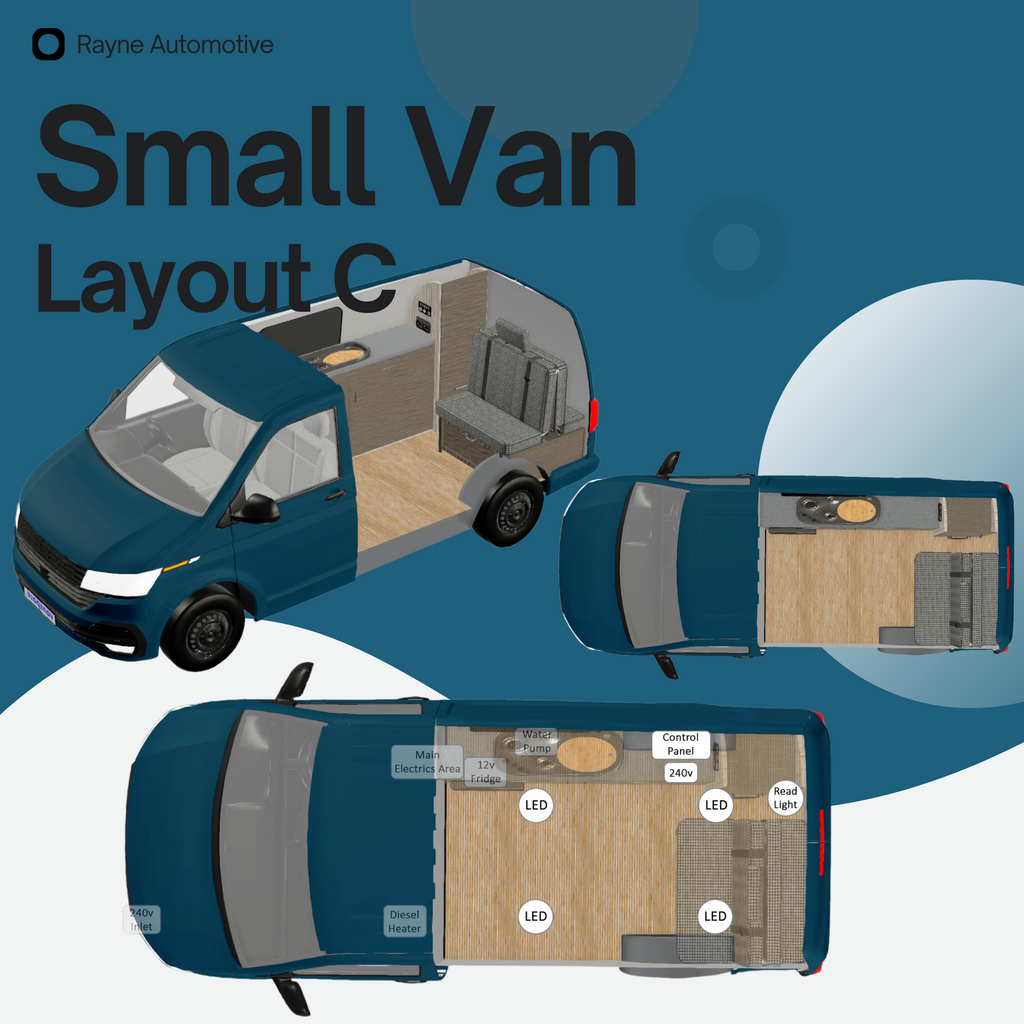

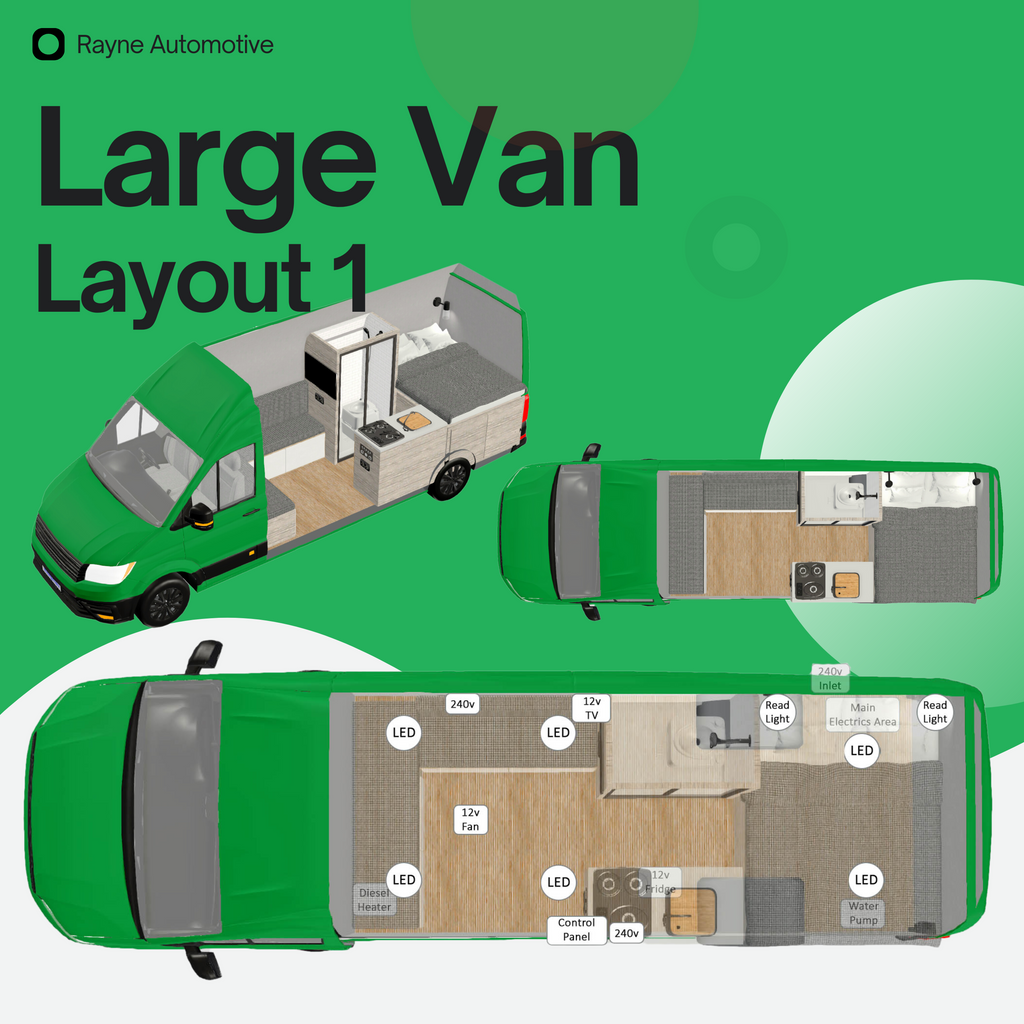

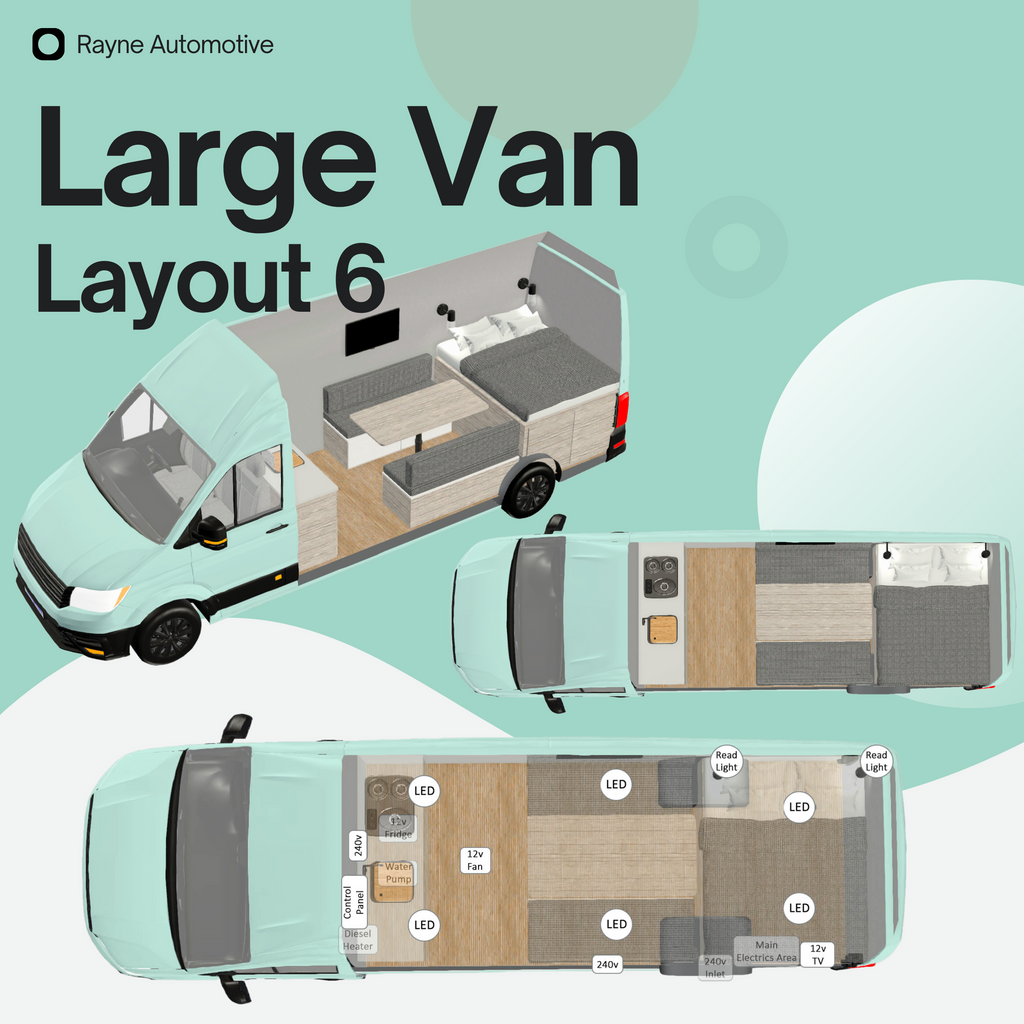

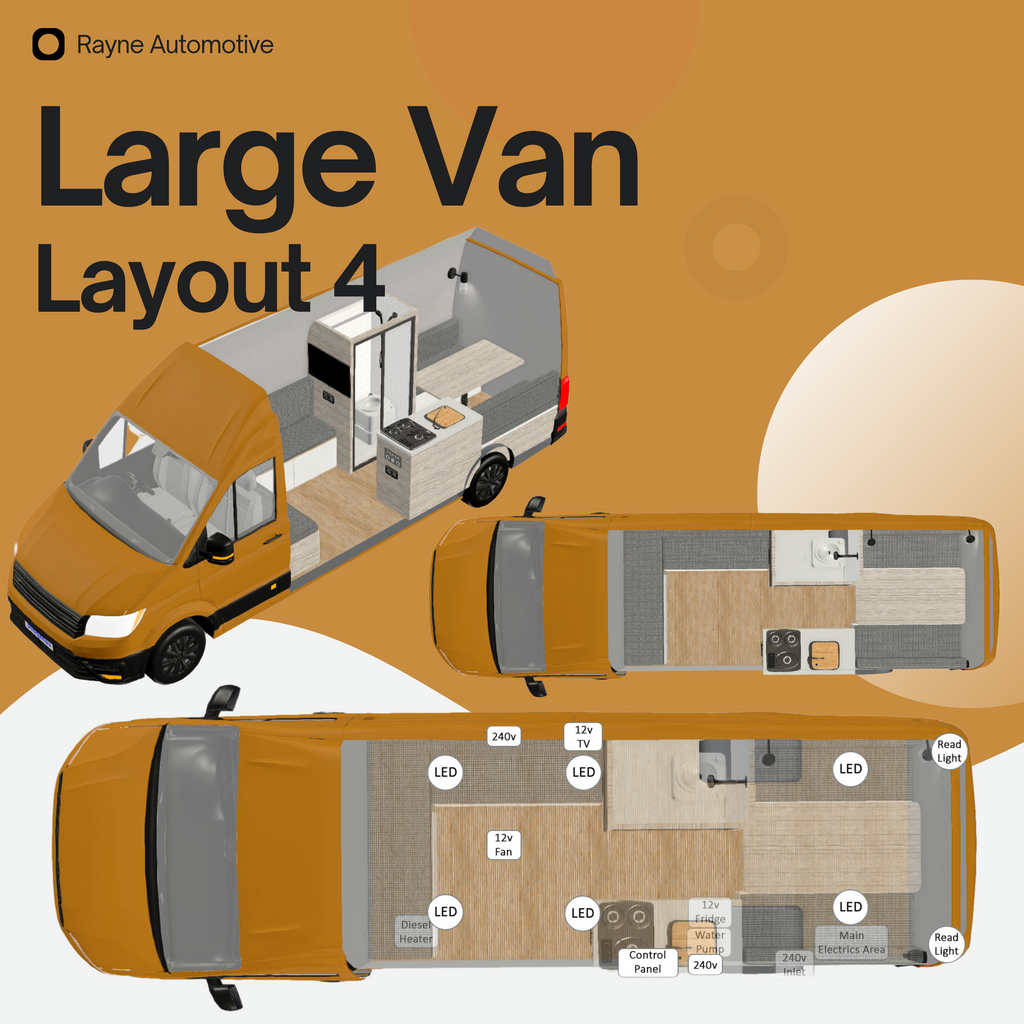

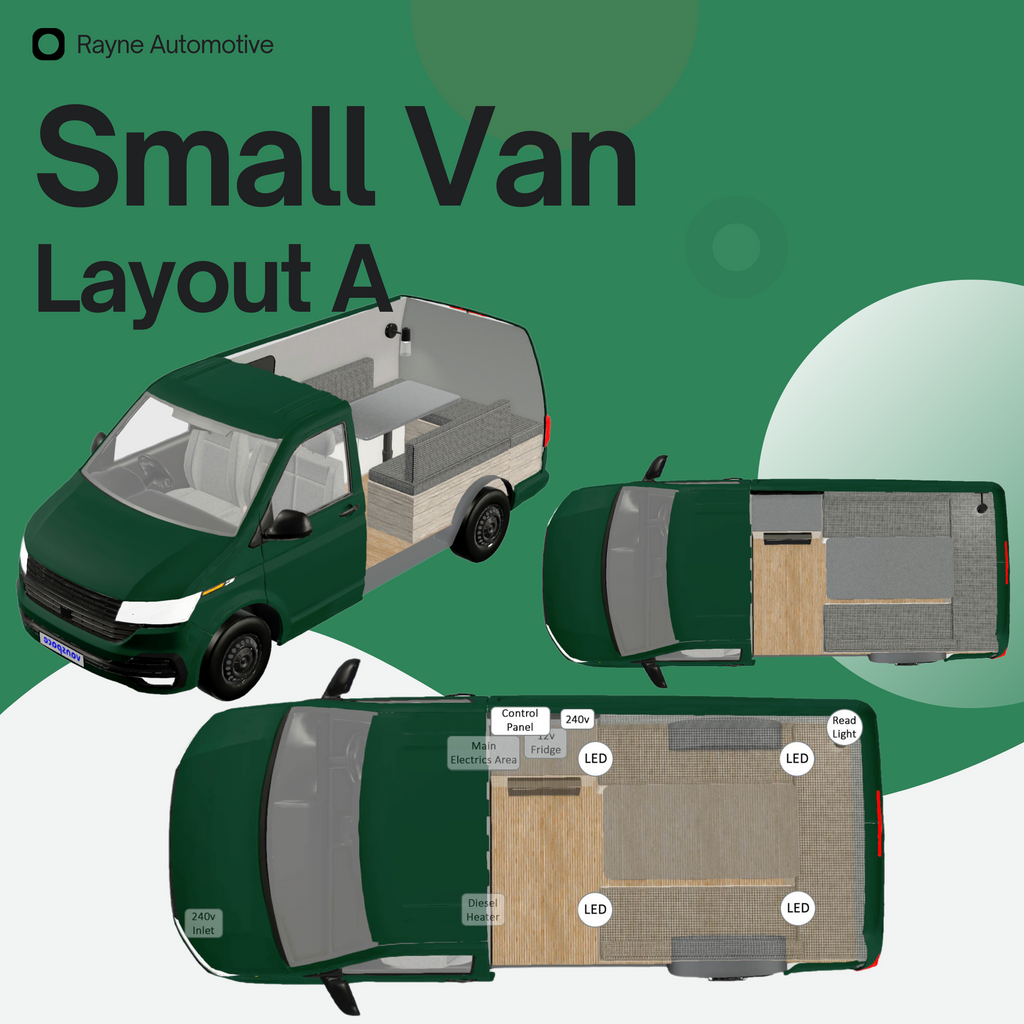

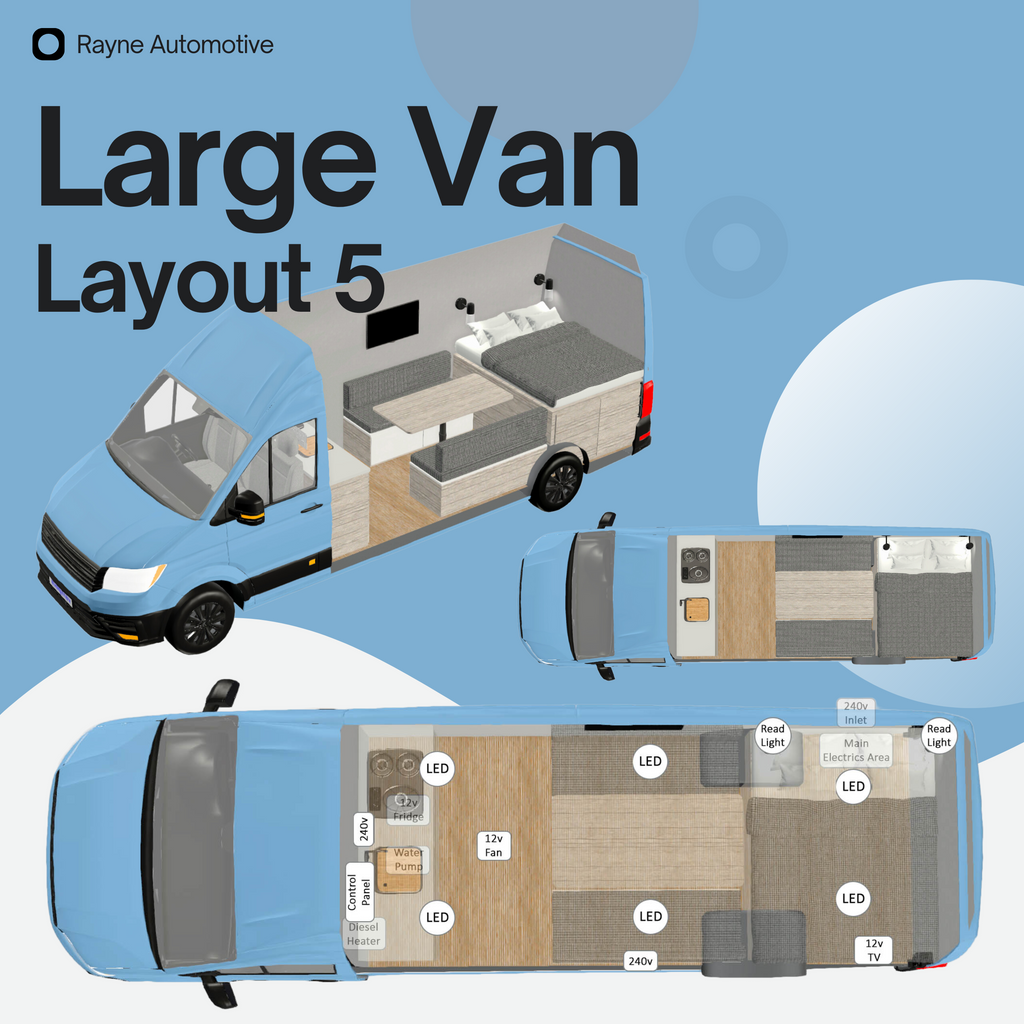

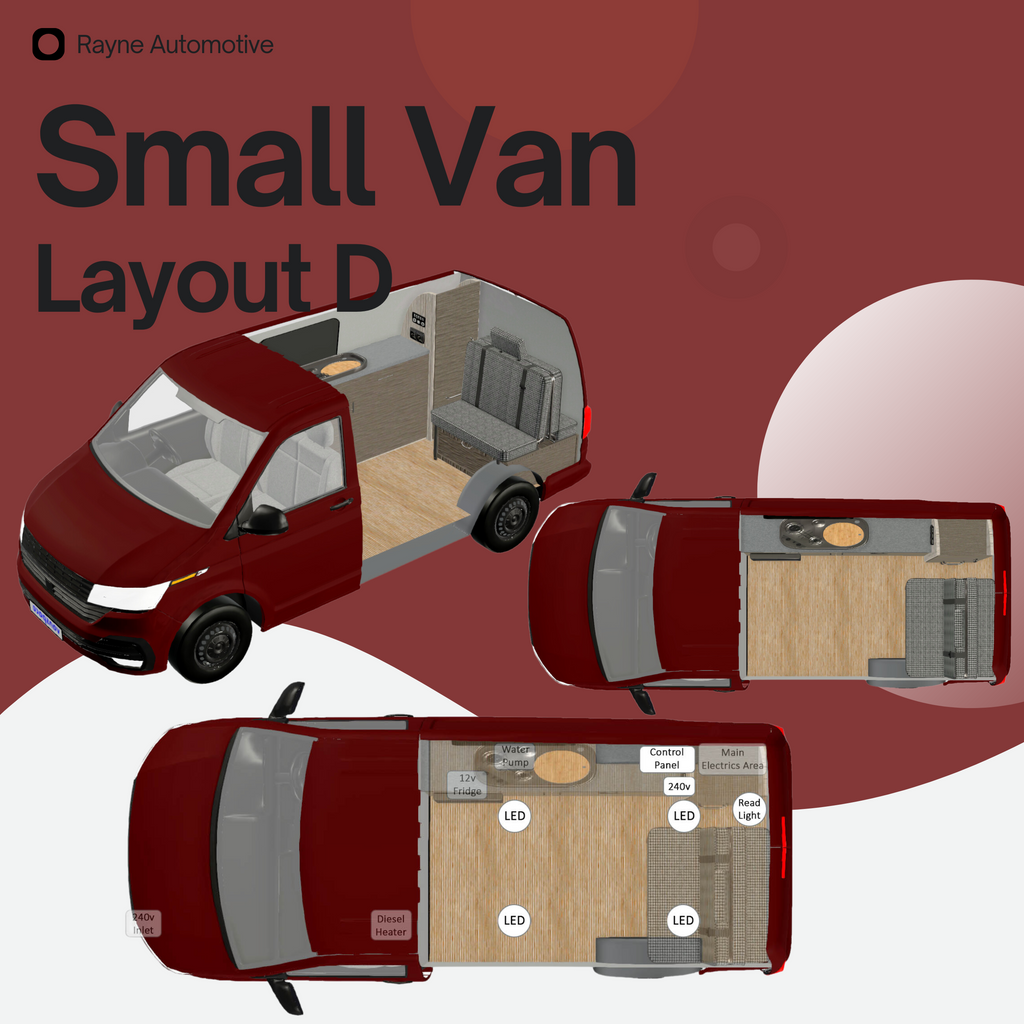

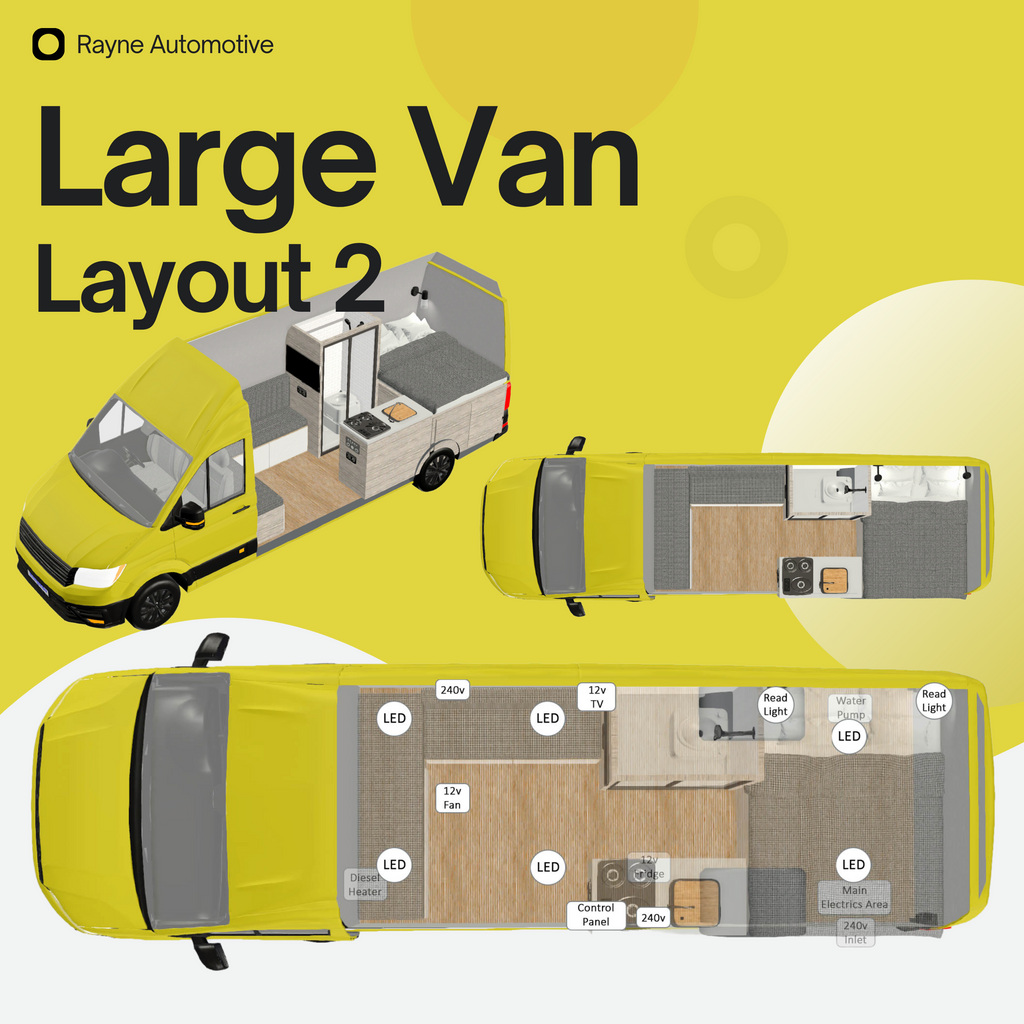

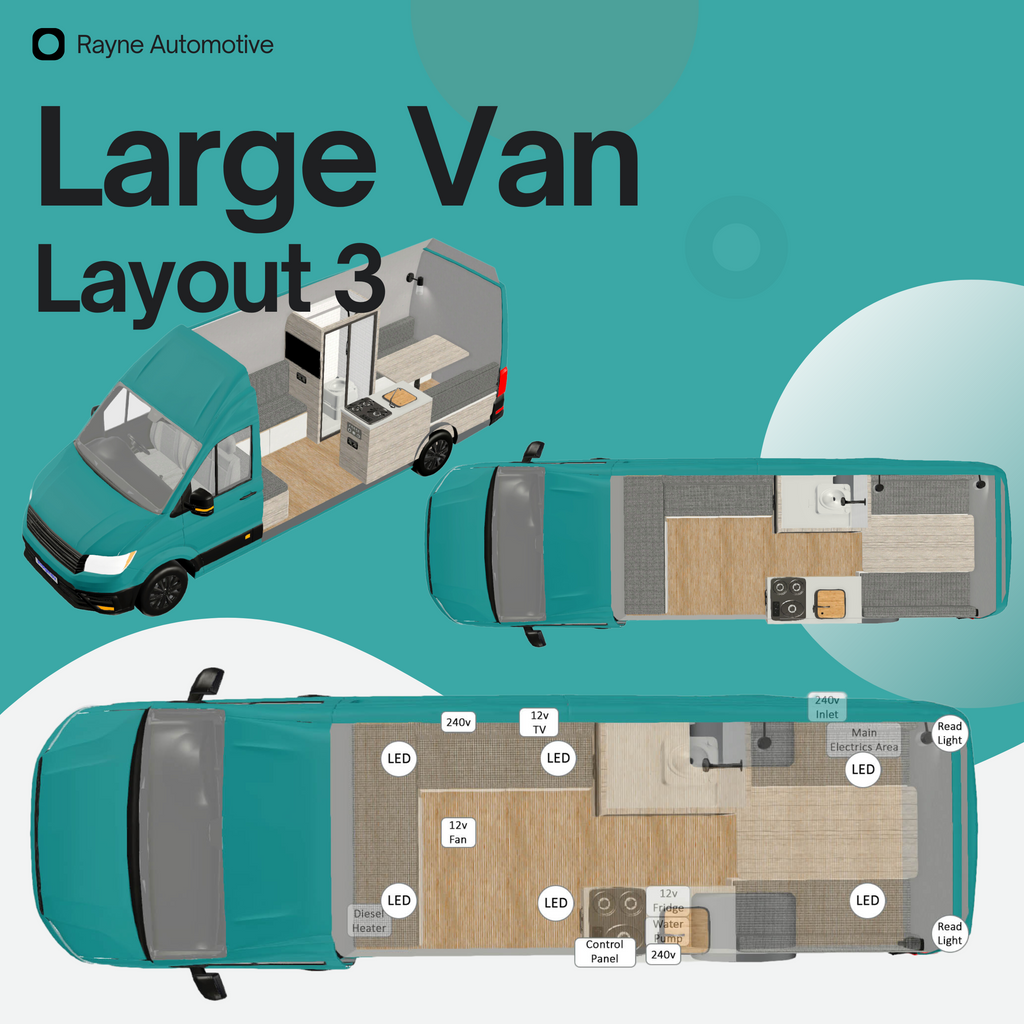

We offer 10 layouts covering the common camper conversions — Small Van A-D and Large Van 1-6. The loom and battery cables are drawn to order for your layout. If yours isn't listed, call or email us before ordering and we'll spec a custom one.
Try our online System Builder at systembuilder.rayneautomotive.co.uk — it sizes a system to how you use your van. The Weekend Explorer covers weekend-to-weekend use with fridge, lights, fan, and charging; for 240V power look at the Off-Grid Adventure or Full Off-Grid systems.
Yes — many customers do. Pre-cut and drawn-to-order cables, a labelled loom, and straightforward connections make this very achievable for a competent DIYer. If DC electrics aren't your thing, any professional installer will have it in quickly.
The 190W rigid panel gives the best yield for the money and suits a flat roof section. The 150W flexible panel sits low-profile for curved or weight-sensitive roofs. Both feed the same SmartSolar 75/15 MPPT controller.
Yes. Use the System Builder for a full specification, or book a consultation and tell us what you want to run and what is already fitted.
Yes. Van converters can apply for a Rayne Automotive trade account for kit pricing and support.
Yes. The Help Centre carries installation instructions, and the team supports what it sells.
Plan the charging, storage and distribution together with the System Builder, browse the example complete systems, or book a consultation and tell us what you want to run and what is already fitted.
