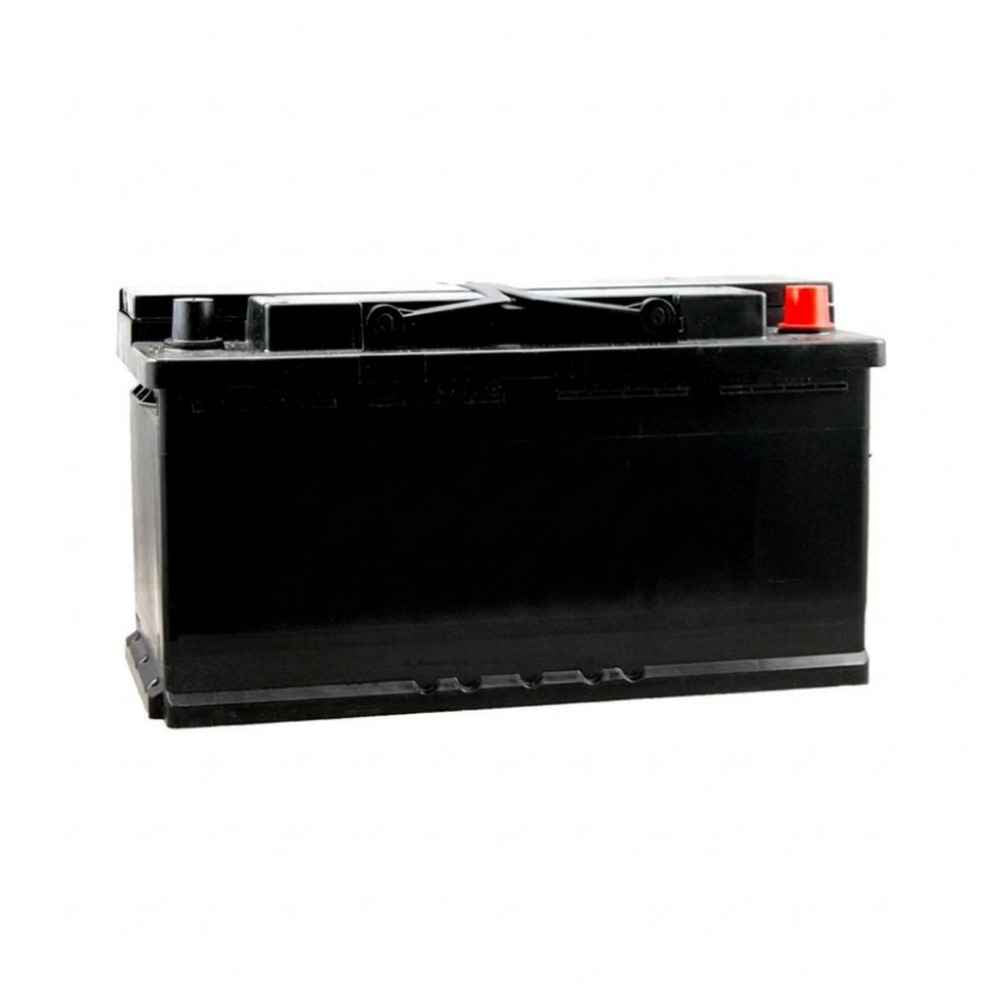

Essentials Low Height 70Ah AGM 12V Leisure Battery

NCC Trained · Victron Dealer

Essentials Low Height 70Ah AGM 12V Leisure Battery

Unbranded

£150.00

Available to order

Design your full system

Delivery

Dispatched every Monday and Thursday with next-day delivery

  • Made in the UK · NCC & Victron trained team
  • Technical support from the people who build the systems
  • Need help? Speak with an expert

About this product

Campervan Conversions · Compact Off-Grid Power · Under-Seat Installation
✓ Low Height (190mm)✓ Sealed AGM Lead-Acid✓ Maintenance-Free✓ 420Wh Usable Power✓ 2-Year Warranty
Compact 70Ah sealed AGM leisure battery with a 190mm low-profile height designed for tight campervan seat bases and clean, reliable 12V power.

Provides reliable maintenance-free 12V power from a low-height AGM unit designed for under-seat fitting. It delivers 70Ah of deep-cycle energy for essential lighting and device charging whilst maintaining a compact 190mm profile. The sealed construction ensures spill-proof operation without requiring maintenance. If you need a budget-friendly option for basic off-grid setups with limited vertical clearance, this is the ideal choice.

  • 70Ah 12V AGM leisure battery providing 420Wh of usable off-grid energy (at 50% DoD)
  • Low-profile 190mm height tailored for campervan seat pedestals (VW Transporter, Transit, Vivaro)
  • Absorbed Glass Mat (AGM) sealed maintenance-free design — leakproof and vibration resistant
  • Safe for internal van installation with supplied external venting tube attachment
  • Low self-discharge rate ideal for seasonal campervan storage and weekend touring
  • Standard post terminal arrangement for easy wiring into split-charge or DC-DC systems
  • Backed by a 2-year manufacturer warranty

⚡ Key Features

01Low-Profile 190mm Casing

Designed explicitly to clear low seat bases in popular UK campervan conversions like the VW T5/T6 and Ford Transit Custom without modifying seat pedestals.

02Sealed AGM Technology

Absorbed Glass Mat chemistry locks electrolyte in fibreglass matting, making the battery completely leakproof, maintenance-free, and resistant to road vibration.

03Dependable 12V Power

Delivers reliable current for essential 12V loads including compressor fridges, diesel heaters, LED lighting, and water pumps.

042-Year Warranty Protection

Built to withstand regular cycling with peace of mind backed by a full 2-year UK warranty.

🔋 Estimated Runtime

Based on System Builder appliance loads. This 70Ah AGM estimate uses 12V and a 50% discharge limit (420Wh available); the System Builder itself lists lithium batteries only. Each tile assumes that one load alone and no recharging or other loads. Actual runtime varies.

Compressor Fridge (48L)

~1.3 days

40W × 8h/day = 320Wh/day

LED Down Lights x 4

~10.5 days

8W × 5h/day = 40Wh/day

Phone/Tablet Chargers

~10.5 days

20W × 2h/day = 40Wh/day

12V TV (24 inch)

~4.7 days

30W × 3h/day = 90Wh/day

Diesel Heater

~6.0 days

8.8W × 8h/day = 70.4Wh/day

Water Pump

~28.0 days

60W × 0.25h/day = 15Wh/day

🔧 Tech Specs

Shared
  • Capacity : 70Ah (420Wh usable power at 50% DoD)
  • Nominal Voltage : 12V
  • Chemistry : AGM (Absorbed Glass Mat) Lead-Acid
  • Weight : 13.5 kg
  • Dimensions : 278mm (L) x 175mm (W) x 190mm (H)
  • Max Continuous Discharge Current : 15A
  • Cycle Life : 300-500 cycles at 50% DoD
  • Warranty : 2 Years

🔌 You Might Also Need

Victron Orion Smart or Orion 18A DC-DC Charger

Ensures proper 3-stage AGM charging profiles from your smart alternator while driving.

Smart 12V Battery Charger

A dedicated mains leisure battery charger to keep your battery maintained on hookup or at home.

Battery Cable & Fuse Kit

Heavy-duty flexible copper cables with suitable mega fuses for clean and safe wiring.

Questions and answers

Can Rayne Automotive help me choose the right option?

Yes. Use the System Builder for a full specification, or book a consultation and tell us what you want to run and what is already fitted.

Do you supply trade accounts?

Yes. Van converters can apply for a Rayne Automotive trade account for kit pricing and support.

Is help available after I buy?

Yes. The Help Centre carries installation instructions, and the team supports what it sells.
