Victron Energy 250A busbar with 4 terminals and cover

NCC Trained · Victron Dealer

Victron Energy Busbar 250A With 4 Terminals With Cover

Victron Energy

£51.30

Warranty 5 years

Available to order

Design your full system

183 five-star Google reviews

Delivery

We're closed for a family wedding from Monday 26 to Wednesday 28 October. Orders placed during this time are processed when we reopen on Thursday 29 October.

Free UK delivery on orders over £50

  • Made in the UK · NCC & Victron trained team
  • Technical support from the people who build the systems
  • Need help? Speak with an expert

About this product

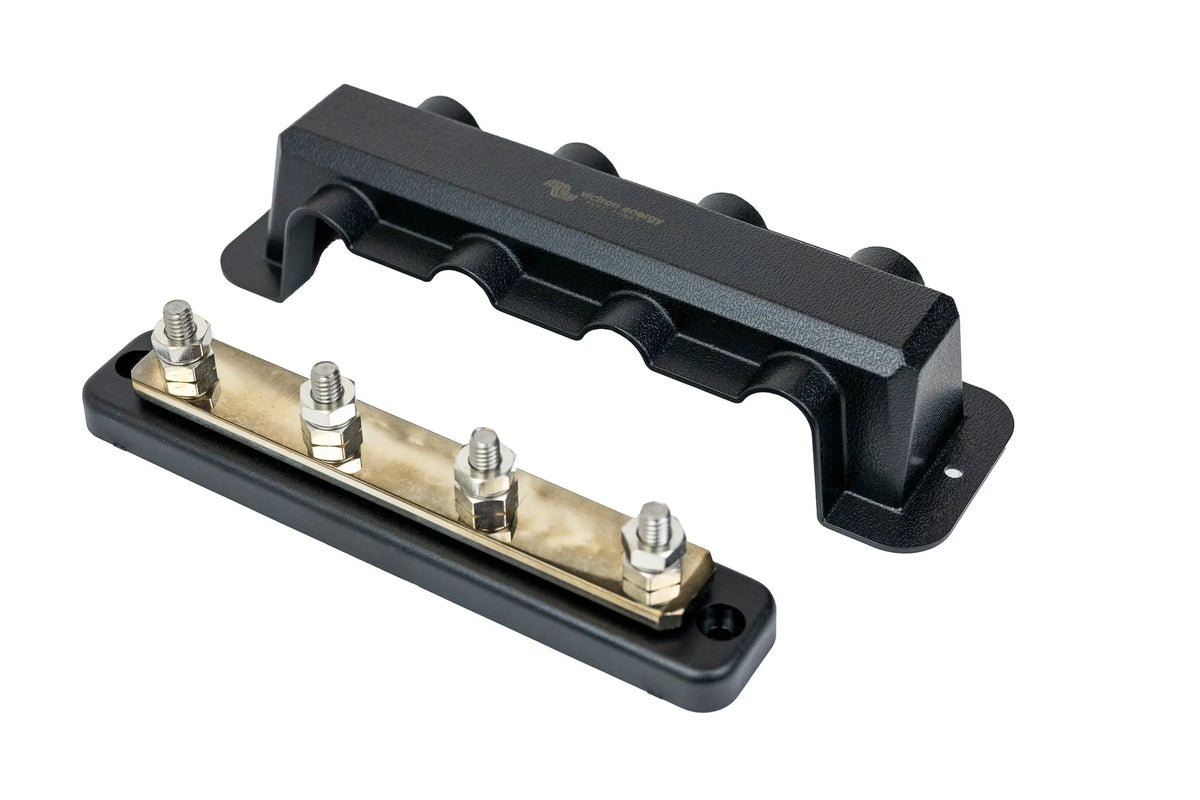

Compact 250A high-current copper busbar block with 4 terminal studs and insulating cover.

Centralises high-current DC cables into a safe distribution node rated for 250A continuous current. Solid tin-plated copper construction ensures minimal electrical resistance across four heavy-duty connection studs. Includes a protective insulating cover to shield live terminals inside battery compartments. Pick this heavy-duty busbar when building a robust 12V junction point for chargers, batteries, and distribution feeds.

🔧 Tech Specs

Shared
  • Continuous Current Rating : 250A DC
  • Max Voltage : 48V DC
  • Terminals : 4 x M8 threaded studs with flange nuts
  • Busbar Material : Tin-plated high-conductivity copper rail
  • Base & Cover : Fire-retardant ABS plastic base with snap-on protective cover
  • Mounting : 2-hole screw mounting footprint
  • Dimensions : 48 x 239 x 71 mm
