100A battery isolator key and switch kit

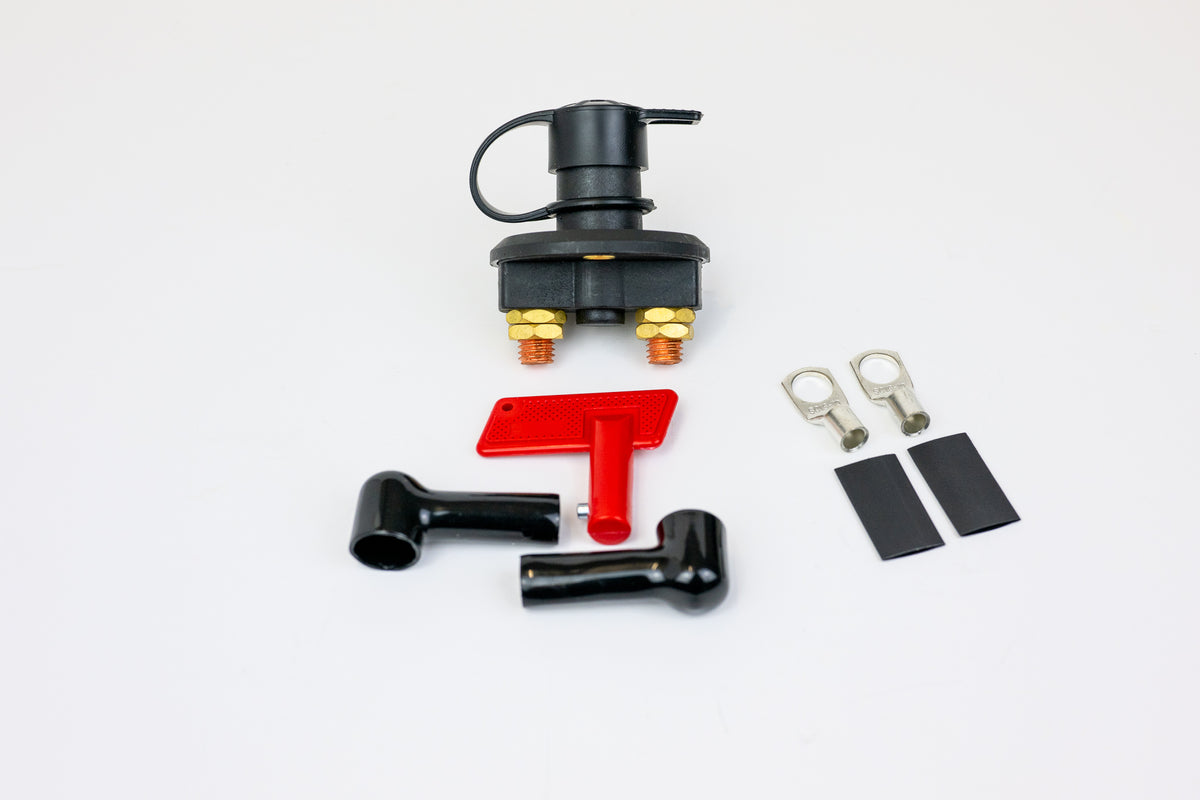

100A Battery Isolator Key/Switch Kit

£14.99
0
inc. VAT
Quantity:
Every order plants 1 tree with Ecologi.
SKU:
ISO100K

100A/275A Battery Isolator Key/Switch Kit

Master DC power disconnect switch kit available in 100A Key Switch or 275A Rotary Switch options.

Isolates your 12V DC power circuits safely by creating a physical air-gap disconnect between the battery bank and leisure circuits. This mechanical switch protects your electrical installation from accidental short circuits during maintenance, emergency cut-offs, or winter storage. Available in a removable-key 100A version or heavy-duty 275A continuous rotary model to suit your system demand. If you need rapid manual circuit isolation to safeguard your equipment and wiring, this kit is the ideal choice.

🔧 Tech Specs

Shared
  • Switch Variants : 100A Key Switch (removable red key) / 275A Heavy-Duty Victron Energy Battery Switch
  • Continuous Rating : 100A continuous (Key model) / 275A continuous (Rotary model)
  • Cranking / Peak Rating : 150A 5-sec (100A Key) / 1250A 10-sec (275A Rotary)
  • Voltage Range : 12V - 48V DC
  • Terminal Studs : M1 / M10 copper studs
  • Mounting : Surface (275A) or rear panel flush mount (both)
  • Material : Impact-resistant vapor-proof ABS housing with ignition protection
