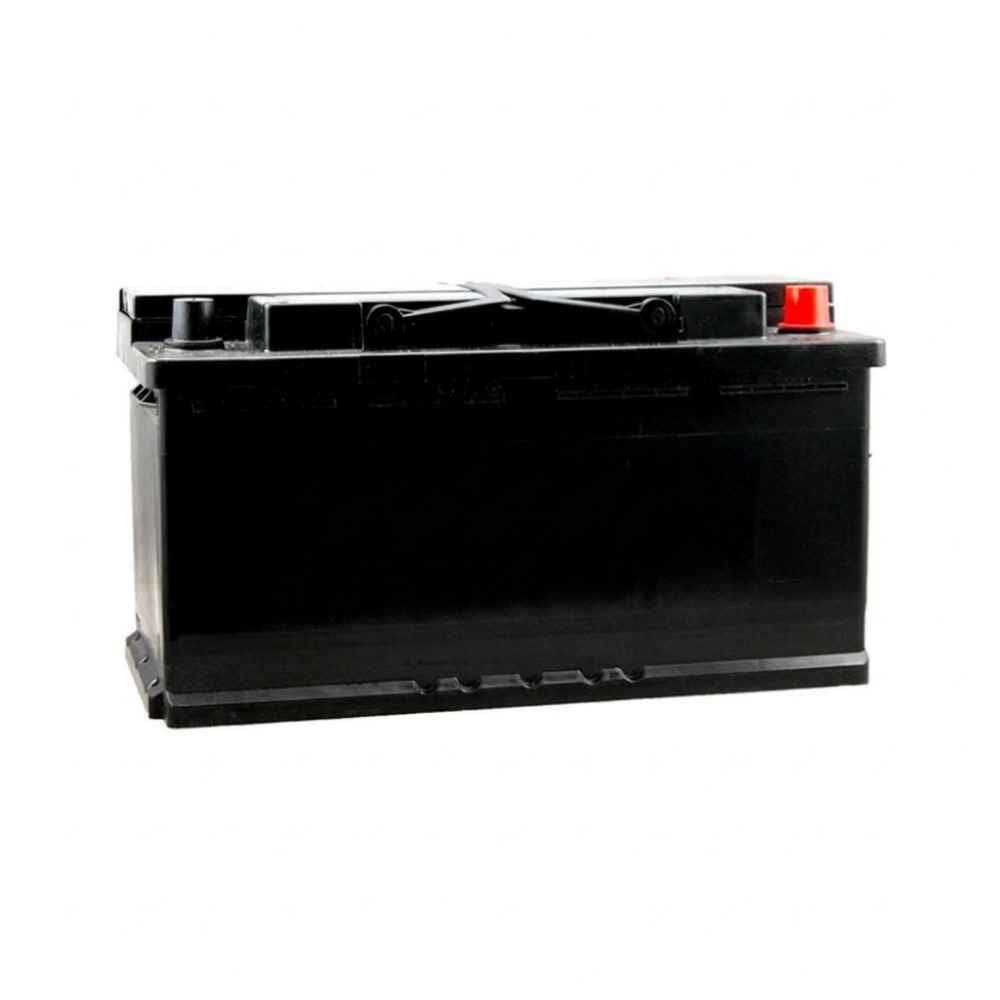

Essentials Low Height 95Ah AGM 12V Leisure Battery

NCC Trained · Victron Dealer

Essentials Low Height 95Ah AGM 12V Leisure Battery

Unbranded

£176.98

Available to order

Design your full system

Delivery

Dispatched every Monday and Thursday with next-day delivery

  • Made in the UK · NCC & Victron trained team
  • Technical support from the people who build the systems
  • Need help? Speak with an expert

About this product

Campervan Conversions · High-Reserve Lead-Acid · Under-Seat Fitment
✓ Low Height (190mm)✓ 95Ah AGM Chemistry✓ Maintenance-Free✓ 570Wh Usable Power✓ 2-Year Warranty
Maximum-capacity low-profile 95Ah AGM leisure battery designed to maximize 12V reserve power inside standard campervan seat pedestals.

Maximises single battery AGM off-grid storage capacity within tight under-seat height limits using a low-height design. Built to standard 019/L5 box dimensions, it delivers 95Ah of deep-cycle power and spill-proof reliability to keep essentials running longer. The sealed lead-acid construction requires zero maintenance and prevents leaks. If you need maximum lead-acid power for under-seat fitting without upgrading to lithium, this high-capacity unit is the ideal choice.

  • 95Ah 12V AGM leisure battery offering ~570Wh of usable energy (50% depth of discharge)
  • 190mm low-profile height suited for tight under-seat campervan base frames
  • Sealed maintenance-free AGM design with zero risk of acid spills
  • Low self-discharge rate holds charge during periods between campervan adventures
  • Robust plates engineered for deep cycling and high initial surge current capability
  • Includes external vent connection point for total safety inside vehicle living areas
  • Standard lead post terminals for easy wiring into split-charge or DC-DC systems
  • Covered by a 2-year manufacturer warranty

⚡ Key Features

01Max Capacity Low-Height Casing

Provides 95Ah of power in a 353mm x 175mm x 190mm frame, maximising energy density without exceeding under-seat clearance.

02Sealed & Leakproof

AGM technology holds liquid electrolyte bound in glass fiber mats, allowing multi-angle installation and zero maintenance.

03Dependable Off-Grid Power

Ideal for running 12V compressor fridges, diesel heaters, water pumps, lighting, and USB device chargers over off-grid stays.

042-Year Warranty

Tested and certified for deep-cycle leisure applications with a 2-year UK warranty.

🔋 Estimated Runtime

Based on System Builder appliance loads. This 95Ah AGM estimate uses 12V and a 50% discharge limit (570Wh available); the System Builder itself lists lithium batteries only. Each tile assumes that one load alone and no recharging or other loads. Actual runtime varies.

Compressor Fridge (48L)

~1.8 days

40W × 8h/day = 320Wh/day

LED Down Lights x 4

~14.3 days

8W × 5h/day = 40Wh/day

Phone/Tablet Chargers

~14.3 days

20W × 2h/day = 40Wh/day

12V TV (24 inch)

~6.3 days

30W × 3h/day = 90Wh/day

Diesel Heater

~8.1 days

8.8W × 8h/day = 70.4Wh/day

Water Pump

~38.0 days

60W × 0.25h/day = 15Wh/day

🔧 Tech Specs

Shared
  • Capacity : 95Ah (570Wh usable power at 50% DoD)
  • Nominal Voltage : 12V
  • Chemistry : AGM (Absorbed Glass Mat) Lead-Acid
  • Weight : 23.5 kg
  • Dimensions : 353mm (L) x 175mm (W) x 190mm (H)
  • Max Continuous Discharge Current : 15A
  • Cycle Life : 300-500 cycles at 50% DoD
  • Warranty : 2 Years

🔌 You Might Also Need

Victron Orion 18A Smart DC-DC Charger

Protects your alternator while providing multi-stage charging for AGM leisure batteries.

Smart Leisure Battery Charger

Multi-stage 12V battery charger for shore power or home battery maintenance.

Battery Isolator Switch & Copper Cabling

Master disconnect switch and heavy-duty cabling for secure installation.
