Victron Energy 600A busbar with 4 terminals

NCC Trained · Victron Dealer

Victron Energy Busbar 600A With 4 Terminals With Cover

Victron Energy

£117.00

Warranty 5 years

Available to order

Design your full system

183 five-star Google reviews

Delivery

We're closed for a family wedding from Monday 26 to Wednesday 28 October. Orders placed during this time are processed when we reopen on Thursday 29 October.

Free UK delivery on orders over £50

  • Made in the UK · NCC & Victron trained team
  • Technical support from the people who build the systems
  • Need help? Speak with an expert

About this product

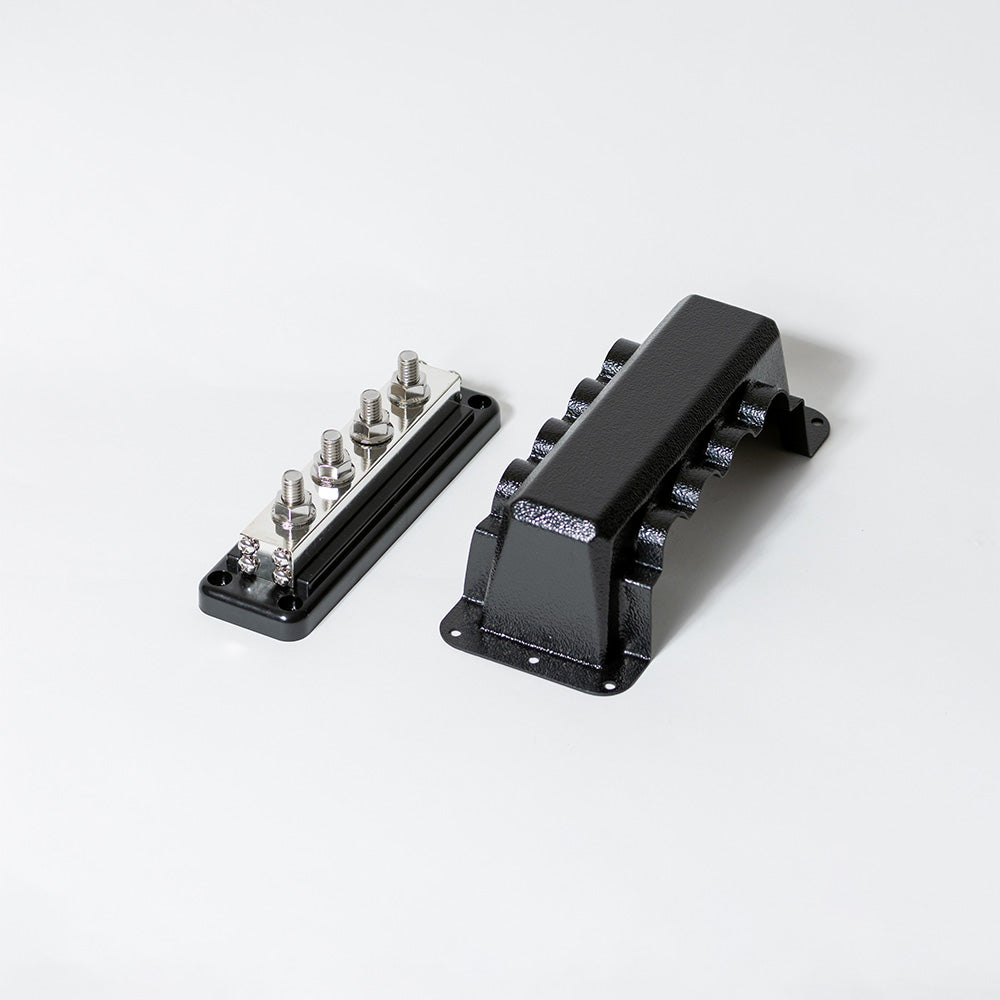

Heavy-duty 600A modular power distribution busbar with 4 terminal studs and protective enclosure.

Handles massive high-current DC loads up to 600A continuous across four heavy-duty M10 connection studs. Thick-gauge tin-plated copper rails deliver ultra-low resistance and minimal heat build-up under extreme power draw. A snap-on insulating cover protects high-amperage terminals against accidental short circuits. Designed for high-capacity multi-battery lithium setups and large power inverters requiring maximum current throughput.

🔧 Tech Specs

Shared
  • Continuous Current Rating : 600A DC
  • Max System Voltage : 70V DC
  • Terminals : 4 x M10 heavy-duty stainless steel connection studs
  • Busbar Material : Heavy tin-plated copper plate
  • Base & Enclosure : Glass-fiber reinforced nylon base with protective snap-on cover
  • Mounting : Secure dual-screw chassis mounting
  • Dimensions : 65 x 216 x 86 mm
