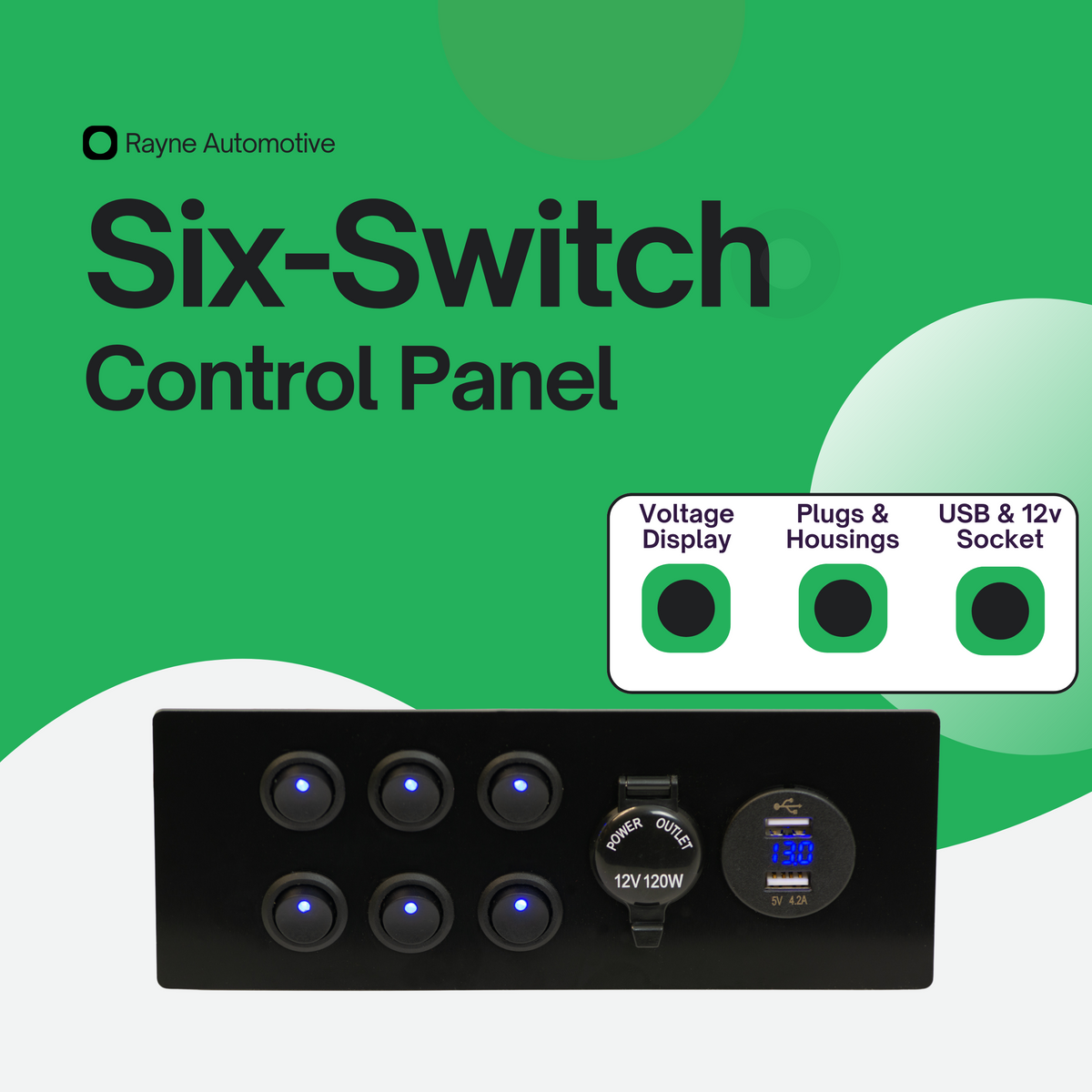

6-Switch Control Panel 12V - Satin Black

Satin black 6 switch control panel.

Some kind of switch panel is an essential part of any conversion or day van. Easily control your electrics from one convenient place.

Product description

Designed and manufactured by us, this is the 5th version of this control panel that has been the centre of our full wiring kits for 7 years now.

The latest design comes with the wiring loom pre-built on the back feeding into a simple 2 plug connection making the installation quicker and easier.

Features;

• 6 x rocker switch (1 is wired to the USB and 12V socket, the other 5 are free to wire)
• 1 x 12V socket
• 1 x double USB and voltage meter With a USB-C port

The USB will display the voltage in between the two USB ports 1 x USB-A  1 x USB-C when it's connected to the power and the top right-hand switch of the panel is turned on.

The wiring on the back is colour coded for simplicity, the three red wires are the power in, take these from your fuse box.

The 5 blue wires are the power out, run these to the positive of your loads/components.

The black wires are the earths, take the thick black wire to the leisure battery negative, then connect the thin black wires to the negative of your loads/components.

Kit contents

1 x 12V 6 switch control panel - satin black (21x 8cm)

1 x cutout template

4 x mounting screw

2 x connector block

14 x 6.3mm spade locking terminal
