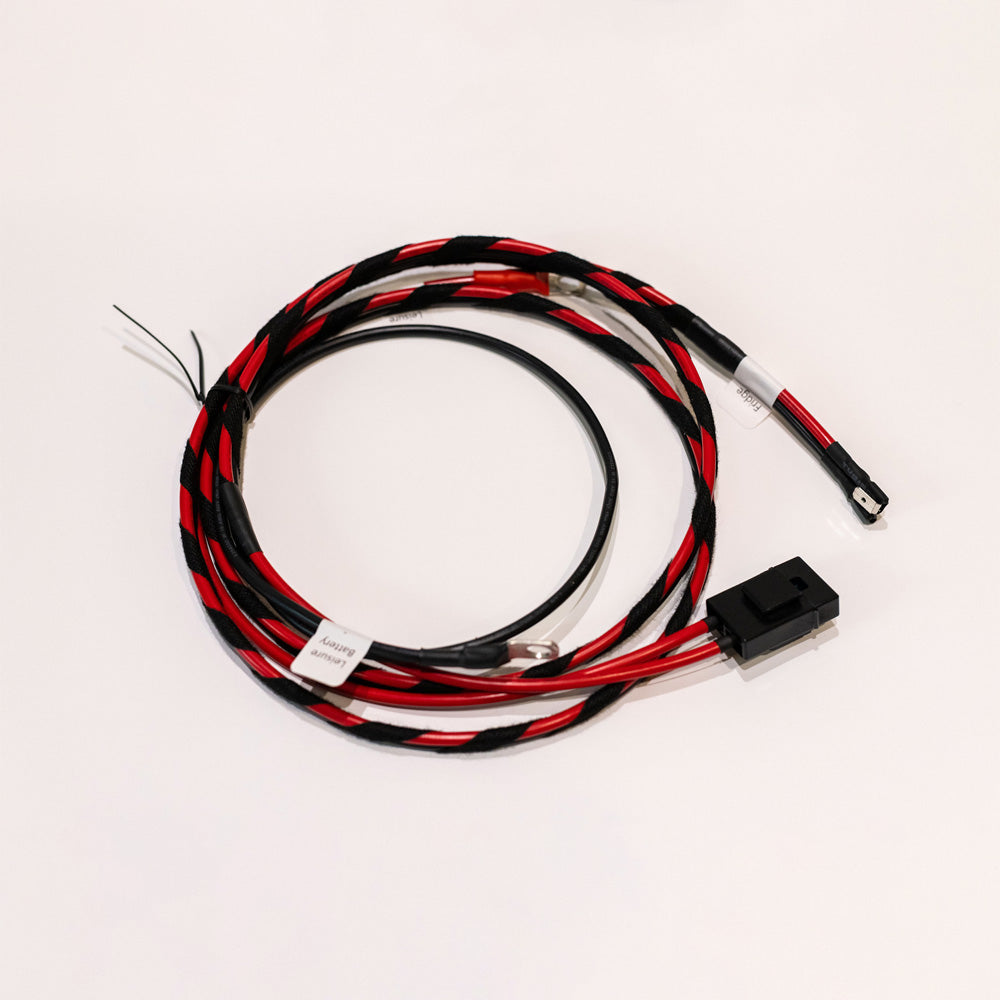

Wiring loom for CRX50 fridge battery connection.

NCC Trained · Victron Dealer

CRX50 Fridge Wiring Loom — For Waeco/Dometic Compressor Fridge

Waeco

£21.05 (options vary)

Warranty 1 year

Available to order

Loom Length
Design your full system

183 five-star Google reviews

Delivery

We're closed for a family wedding from Monday 26 to Wednesday 28 October. Orders placed during this time are processed when we reopen on Thursday 29 October.

  • Made in the UK · NCC & Victron trained team
  • Technical support from the people who build the systems
  • Need help? Speak with an expert

Options and prices

Every option below is priced live from the shop. Choose on this page or in the panel above.

Show all options and prices
OptionPrice
Loom Length: 1.5M £21.05
Loom Length: 2.5M £23.32
Loom Length: 3.5M £25.59
Loom Length: 4.0M £26.73

About this product

Low-voltage-drop pre-wired 12V DC power cable harness for Dometic/Waeco CRX50 fridges

Connects Dometic and Waeco CRX50 compressor fridges straight to your 12V power supply with zero fuss. Thick copper conductors maintain steady voltage over long runs to stop low-voltage cutout errors, making this pre-made loom far superior to risky DIY wiring. Pre-assembled with inline fuse protection and exact fridge power terminals for instant hookup. Choose this loom to protect your fridge compressor and ensure continuous, trouble-free cooling.

🔧 Tech Specs

Shared
  • Cable Length Variants : Van model and battery location specific (lengths vary by van and battery position)
  • Cable Gauge : 6.0mm² thin-wall copper DC cable (sized to prevent voltage drop)
  • Fuse Protection : Integrated inline fuse holder with 15A blade fuse
  • Terminal Fittings : Insulated female spade connectors / fridge terminal piggyback spade on live and 6.3mm spade on earth / ring terminals on battery end
  • Max Current Rating : 15A peak / 5A-7A continuous operating current
  • Compatibility : Dometic / Waeco CRX50, CRX65, CRE50, and similar 12V compressor fridges

🔌 You Might Also Need

12V Fuse Box or Power Board

Flat Twin 12V Cable per metre
