Electrical Mains 240V 2-Way Hook Up Kit (no charger)

£118.68
0
inc. VAT
Inlet socket type: Black flush mount
Number of double sockets: 1
Mains socket finish: Black nickel
Quantity:
Every order plants 1 tree with Ecologi.
SKU:
EHUB101STK46BN

Mains 240V electrical hook up kit

Easily add luxury to your camper with a mains hook up system, meaning you can have 240V power in your camper when you're on a campsite

Product description

This kit gives you a safe easy way to connect to a mains hook up when you arrive on a campsite, it comes with the consumer unit, cable, socket(s) and inlet socket.

Component descriptions

Some of these components can be swapped out using the menus above in one of four categories.

Mains consumer unit

A 2-way double pole consumer unit with a 40A 30ma Type A RCD combined in series with 6A and 16A double pole MCBs. Overall dimensions are 170mm x 150mm x 90mm (W x L x H)

Outlet Sockets & number of sockets

Available in a choice of finishes and you can add up to 4 double sockets in this kit.

All of the outlet sockets come in a double, with 2 x standard 3 pin UK plug outlets.

They are all provided with a back box too, the back boxes mount in behind the sockets to make sure the terminals aren't exposed.

Inlet socket

Covered surface mounted inlet socket. This is the best socket for mounting under the bonnet or beneath the rear bumper. It has two mounting screws on the base and takes a standard 3 pin round blue hook up lead. It is wired from the back of the pins, using screw clamp type fastenings.

Flush mounted inlet socket. This uses the same 3 pin round blue hook up lead to connect between the site post and your camper. It's designed to be mounted through the side of the van by cutting a hole. Supplied with a backing gasket (we use this as a template for cutting the hole). It has 4 screw holes, one in each corner to compliment the recommended fixing/sealing methods. Available in white or black.

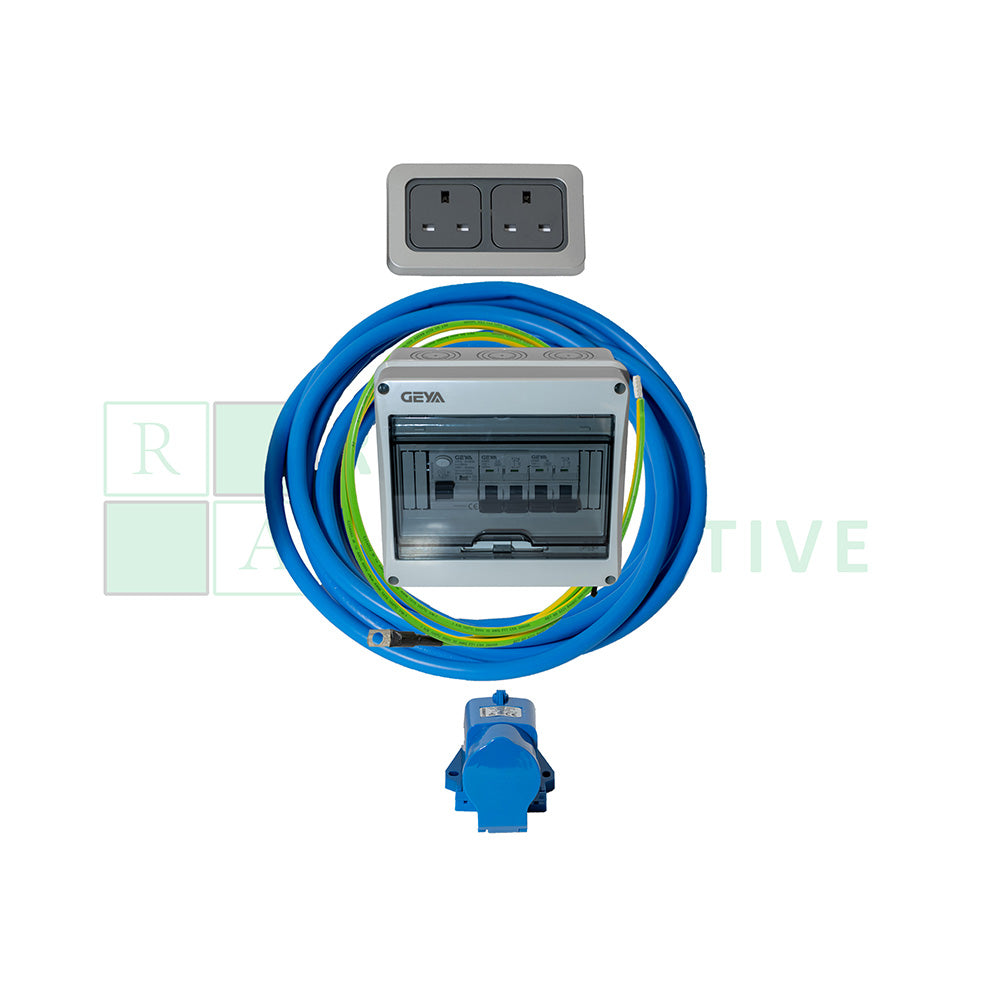

Kit contents

  • Mains consumer unit (un-wired).
  • 5M Mains 2.5mm2 arctic flex cable.
  • 4mm2 bonding wire.
  • Mains inlet socket, either covered surface mount or flush mounted (selectable above).
  • Either 1, 2, 3 or 4 double 240V sockets in a colour of your choice.

Key features

  • Easy install, supplied with wiring diagrams

  • Expert aftersales care provided

  • Small consumer unit size

Vendor: Rayne automotive
Type: Basic Wiring Kits, Mains Hook Up Kits, Victron Energy
Inlet socket type: Black flush mount, Covered surface mount, White flush mount
Number of double sockets: 1, 2, 3, 4
Mains socket finish: Black nickel, Brushed silver, C-line black, C-line silver
SKU: EHUB101STK46BN
