AGM & GEL BATTERIES · STANDARD ALTERNATORS (PRE-2015)

VSR Split Charge Kit

✓ Fit-and-Forget✓ 120A Continuous✓ Auto-Engage at 13.8V✓ Van-Specific Cables✓ No Programming

Complete split charge kit with Victron Cyrix VSR and van-specific cable kit — charges your leisure battery automatically whilst driving

Keeps your leisure battery topped up automatically whilst you drive, so you arrive at camp with a charged battery and peace of mind. The Victron Cyrix voltage-sensing relay monitors your alternator voltage and connects the two batteries when the engine is running, then isolates them when you park — protecting your starter battery from being drained.

This is the simplest, most affordable way to add split charging to a campervan with a standard alternator. No Bluetooth, no apps, no programming — the relay works entirely automatically. If your van is pre-2015 (and has a traditional alternator), and you're running AGM or gel leisure batteries, this kit does the job reliably and affordably.

Every cable is pre-cut to the length for your van model and battery location, with ring terminals professionally crimped and inline fuses already fitted. You're not trimming cable in a car park or hunting for the right fuse — it arrives ready to bolt in.

Automatic charging — connects batteries when engine runs, isolates when parked
Victron Cyrix microprocessor relay — not a cheap voltage switch
Pre-cut van-specific cables for 8 van models and 5 battery locations
Professionally crimped ring terminals with inline 100A fuses
No programming or Bluetooth required — true fit-and-forget
Budget-friendly split charge for AGM and gel batteries

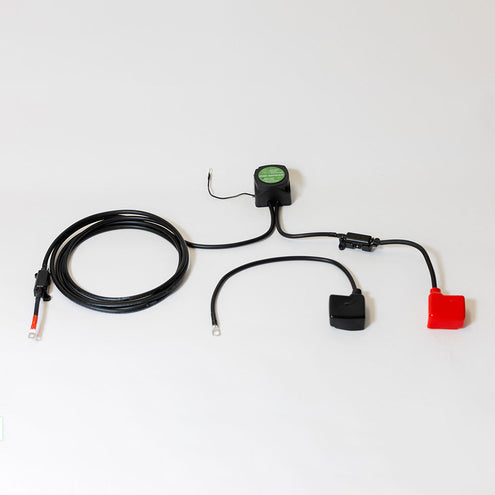

📦 What's Included

Victron Cyrix VSR Relay

Microprocessor-controlled 120A battery combiner that automatically connects and isolates your batteries based on voltage — not a basic voltage switch.

Van-Specific Cable Kit

16mm² tri-rated copper cable, pre-cut to the length for your van model and battery location. Ring terminals professionally crimped, inline 100A fuses fitted at both ends.

⚡ Key Features

01Protects Your Starter Battery

The relay only connects the batteries when the alternator is producing charge (above 13.8V). When you park, it disconnects at 12.8V — so your starter battery never gets drained by your leisure loads.

02Cables Pre-Cut for Your Van

Select your van model and where your battery lives (under seat, wheel arch, rear floor) and you'll get the exact cable lengths you need. No measuring, no trimming, no waste.

03Microprocessor, Not a Switch

The Victron Cyrix uses voltage trend monitoring to prevent chattering on and off at borderline voltages. Cheaper relays just flip at a set voltage — the Cyrix watches the trend before committing.

04Add a Fuse Box at Checkout

Optional 6-way or 12-way fuse box available. If you're building a full 12V system, the fuse box distributes power to your lights, sockets, fridge, and other loads from one tidy location.

📊 Which Split Charge Kit?

Kit	Best For	Alternator	Batteries	Bluetooth
VSR	Budget installs	Standard only	AGM/Gel	No
Orion 18A	Small vans	Standard + Smart	All inc. Lithium	Yes
Orion 30A	Medium vans	Standard + Smart	All inc. Lithium	Yes
Orion XS 50A	Large vans	Standard + Smart	All inc. Lithium	Yes
Orion XS 70A	Very large vans	Standard + Smart	All inc. Lithium	Yes
CTEK D250SE	Dual input (solar)	Standard + Smart	All inc. Lithium	No

🔧 Tech Specs

Relay & Protection

Relay Type : Victron Cyrix battery combiner (microprocessor VSR)
Max Current : 120A continuous
Engage Voltage : 13.8V (with voltage trend monitoring)
Disengage Voltage : 12.8V
Fuse Protection : Dual inline 100A fuses (battery and relay ends)
Battery Compatibility : AGM, gel, lead-acid (NOT lithium)
Smart Alternator : No — use an Orion DC-DC charger for Euro 6 (2015+) engines

Cable Kit

Cable Gauge : 16mm² tri-rated multi-strand copper
Cable Length : Van model and battery location specific (select from dropdown)
Terminals : M8 heavy-duty copper ring terminals, professionally crimped
Van Models Covered : 8 models — see variant selector
Battery Locations : 5 positions — under seat, wheel arches, rear floor

🔌 You Might Also Need

Leisure Battery

AGM or gel to suit your power needs (3 capacities)

Battery Linking Wires

Connect multiple batteries in parallel (various lengths)

12V Wiring Loom

For 12-pin power board connection (van-specific)

❓ FAQ

Will this work with my van?

If your van has a standard alternator (most vehicles before 2015, or commercial vehicles without stop-start technology), the VSR kit will work. If your van has a smart alternator (Euro 6 engines from 2015 onwards, usually with stop-start), you need a DC-DC charger instead — the VSR cannot charge from a smart alternator.

Can I use this with lithium batteries?

No. The VSR operates on voltage thresholds that don't suit lithium battery charging profiles. For lithium batteries, use one of the Victron Orion DC-DC charger kits instead — they have proper lithium charge algorithms.

What if I don't know my battery location?

Select the location where your leisure battery will be installed — under the driver or passenger seat, near a wheel arch, or under the bed at the rear. The cable length is calculated for a clean, direct route from the starter battery to that location. If you're unsure, measure the approximate cable run and choose the closest option.

Do I need the fuse box option?

If you're just adding split charging to an existing setup with a fuse box already in place, select 'No Fuse Box'. If you're starting from scratch or want a tidy distribution point for your 12V loads, add the 6-way (SC7) or 12-way (SC6) fuse box.
