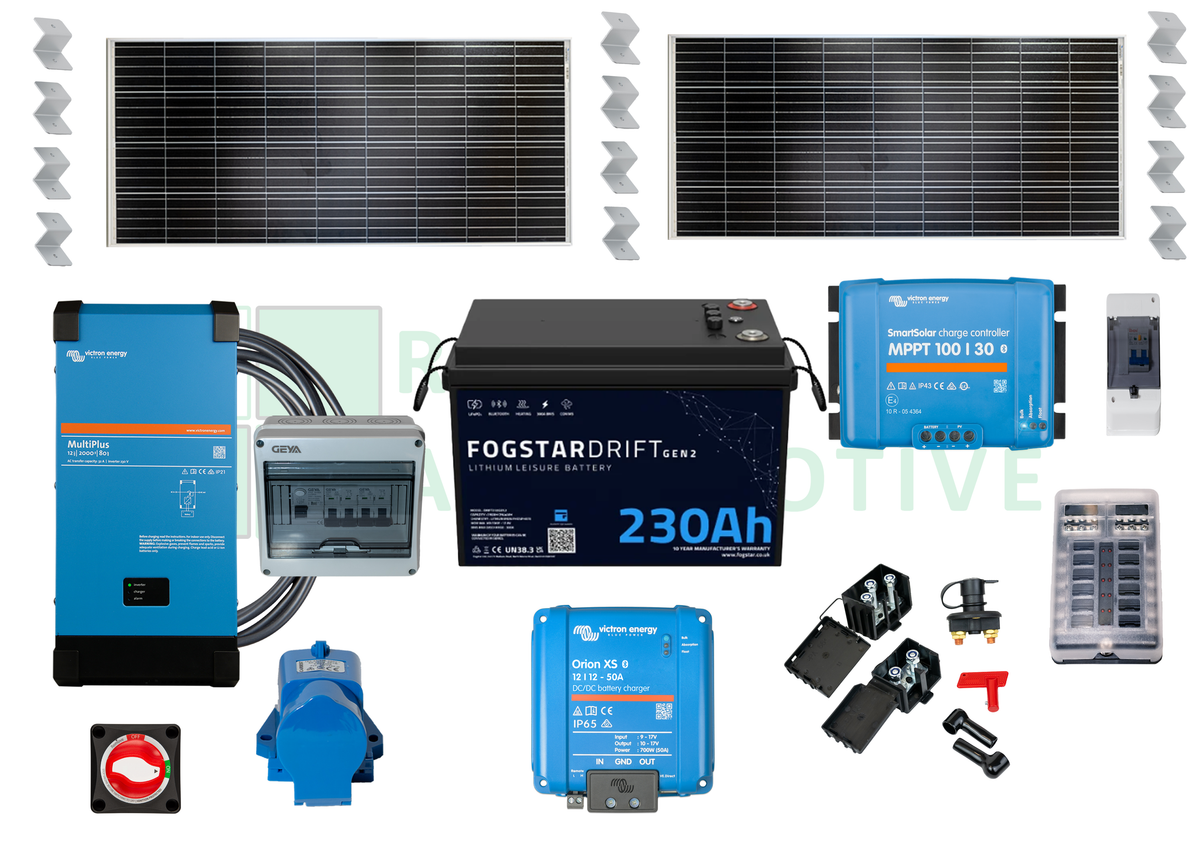

The complete off-grid system in unmounted form — XS 50A core install kit, 380W rigid solar, Multiplus 2000Va inverter-charger, mains kit (pre-wired) and a 230Ah lithium battery
One purchase and your camper is a genuine off-grid machine — DC charging, solar harvesting, 240V inverter power, mains hook-up, and a 230Ah lithium battery to run it all. The aim here is to cover all of your fusing, switching, wiring, battery and charging for the complete electrical system. Every part is specified to work together: the charger suits the battery, the cable suits the charger, the Multiplus inverter and mains kit handle the 240V side.
This is the component version for a conventional, self-mounted/connected install: the 12V Core Install Kit gives you the Orion XS 50A charger, 12-way fuse box, busbar and isolator set, and the van layout wiring loom; the rigid solar kit adds 380W of harvesting with its SmartSolar MPPT controller; the mains wiring kit and Multiplus 2000Va complete the 240V side.
Cooking on electricity is the headline. The pre-programmed Multiplus delivers 1600W of pure sine 240V — induction hob, kettle, air fryer — silently from your own battery, and acts as an 80A charger when you hook up. No gas refills, no cooking fumes.
Rigid Solar Panel Kit — 2× 190W Victron panels with SmartSolar 100/30 MPPT controller, pre-programmed with standard cable kit and isolator switch
Victron Multiplus 2000Va inverter-charger with DC leads and isolator — pre-programmed in house
Mains Wiring Kit for Multiplus — consumer unit with 2 x RCBOs, IP67 inlet, Multiplus-specified connections
Fogstar Drift Gen2 230Ah lithium battery — 2,944Wh with Bluetooth monitoring
Electric-cooking capable: 1600W continuous pure sine 240V
☀️ Solar Yield — Real UK Estimates
380W array (2× 190W) — Summer
908Wh
approx. 71Ah per day
380W array (2× 190W) — Winter
281Wh
approx. 22Ah per day
Real UK seasonal estimates from our power calculator's solar model — 2.39 effective sun-hours/day in summer, 0.74 in winter. Yields shown per full day.
🔋 Estimated Runtime
Based on the System Builder’s appliance power and daily-use settings, with a 230Ah × 12.8V = 2944Wh lithium battery. Each tile shows one load on its own, with no solar or alternator charging; no reserve or losses are deducted. Real mixed-use runtime will be shorter.
Compressor Fridge (48L)
~9.2 days
40W × 8h/day = 320Wh/day
LED Down Lights x 4
~73.6 days
8W × 5h/day = 40Wh/day
Phone/Tablet Chargers
~73.6 days
20W × 2h/day = 40Wh/day
12V TV (24 inch)
~32.7 days
30W × 3h/day = 90Wh/day
Diesel Heater
~41.8 days
8.8W × 8h/day = 70.4Wh/day
Water Pump
~196.3 days
60W × 0.25h/day = 15Wh/day
🔌 What Can It Run?
The MultiPlus 2000VA delivers 1600W of continuous pure sine 240V power with a confirmed 4000W peak rating, and provides 80A battery charging on hook-up. Here is what it can realistically run off-grid:
Phones, Laptops + TV
70-350W Comfortable combined load
✓
Travel Kettle
500-800W No problem
✓
Microwave
700-1000W Runs comfortably
✓
Air Fryer
800-1500W Check its nameplate rating
✓
Hair Dryer
1200-1600W Short use within the continuous limit
✓
Power Tools
300-1600W 4000W peak helps with start-up demand
✓
Induction Hob (Low)
1000-1600W Only where the actual input stays within 1600W
✓
Standard Kettle
2000-2400W Above the 1600W continuous limit
✗
Combined Load Examples
Lights + television + devices + microwave: around 1200W — comfortable
Air fryer or low-setting induction cooking: use as the main load and keep the total below 1600W
Wattages are typical values — check each appliance label. Keep the combined continuous load within 1600W. The 4000W figure is a short peak capability, not a continuous appliance allowance.
1600W continuous pure sine inverter with built-in 80A multi-stage charger and automatic transfer switch. Pre-programmed in house. Supplied with professionally crimped DC battery leads and isolator switch.
5
Fogstar Drift Gen2 230Ah Lithium Leisure Battery
LiFePO4 lithium with built-in Bluetooth monitoring and battery heating — 2,944Wh of storage.
⚡ Key Features
01Off-Grid Means Off-Grid
380W of solar refills the battery faster than a typical van's daily drain; the Multiplus turns the battery into 240V mains wherever you are. Park up for days and live normally.
02Electric Cooking Changes the Van
Induction hob, air fryer, kettle — silently powered from your own battery. No gas refills, no carbon monoxide worries from cooking, no flame near soft furnishings.
03XS 50A — The Efficiency Choice
98.5% efficiency means virtually none of your alternator's power is wasted as heat, and large batteries recover at up to 50Ah per hour of driving. Ideal when you're running a big bank.
04Charging From Every Direction
XS 50A from the alternator, 380W of MPPT-tracked solar, 80A from the Multiplus on hook-up. The 230Ah battery always recovers fast.
Distribution : 12-way fuse box + Dual busbar & isolator set

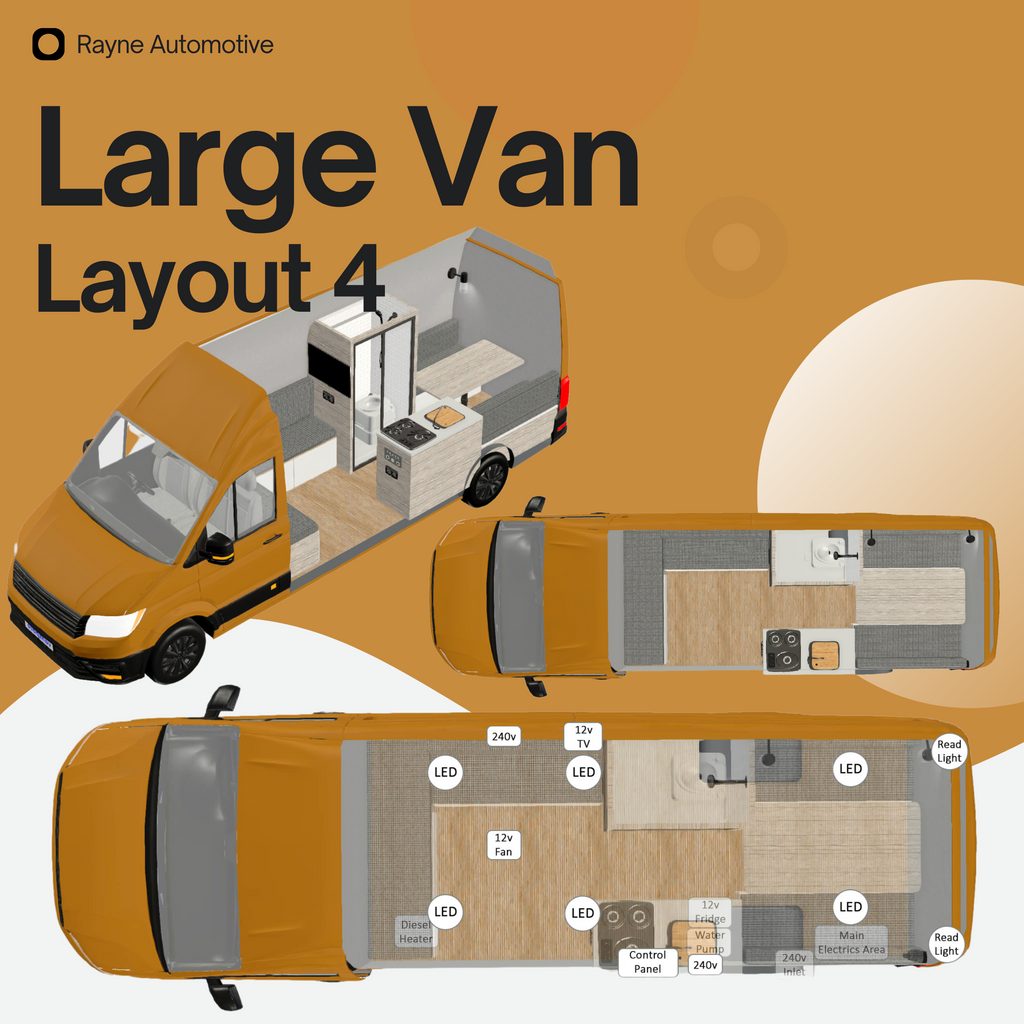

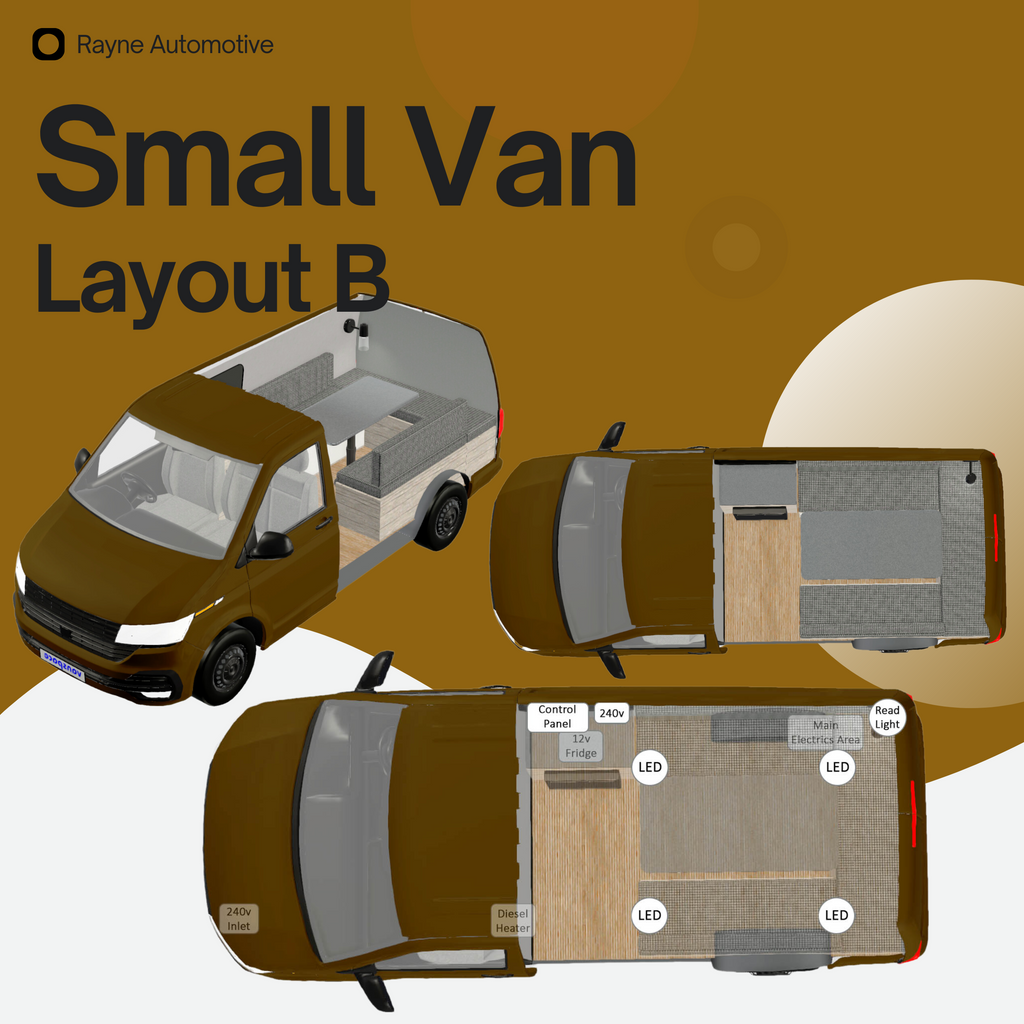

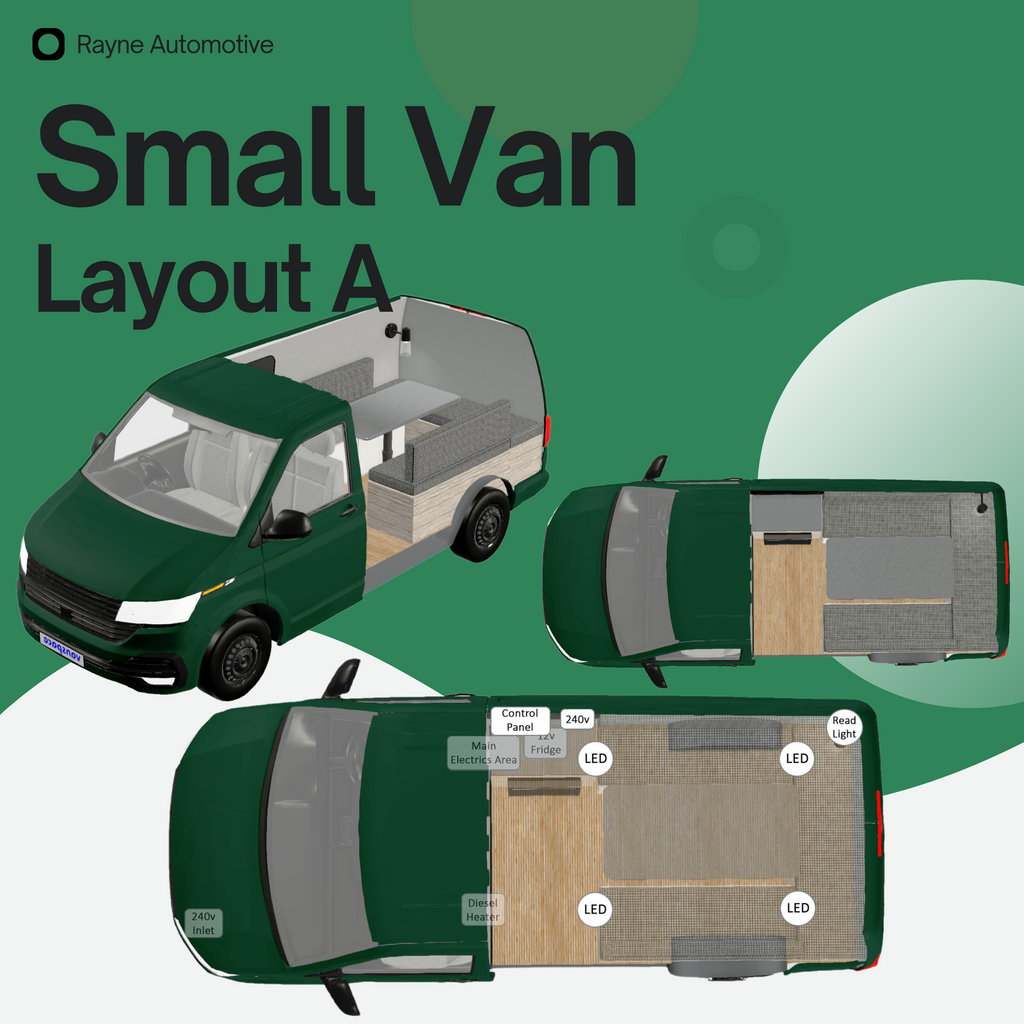

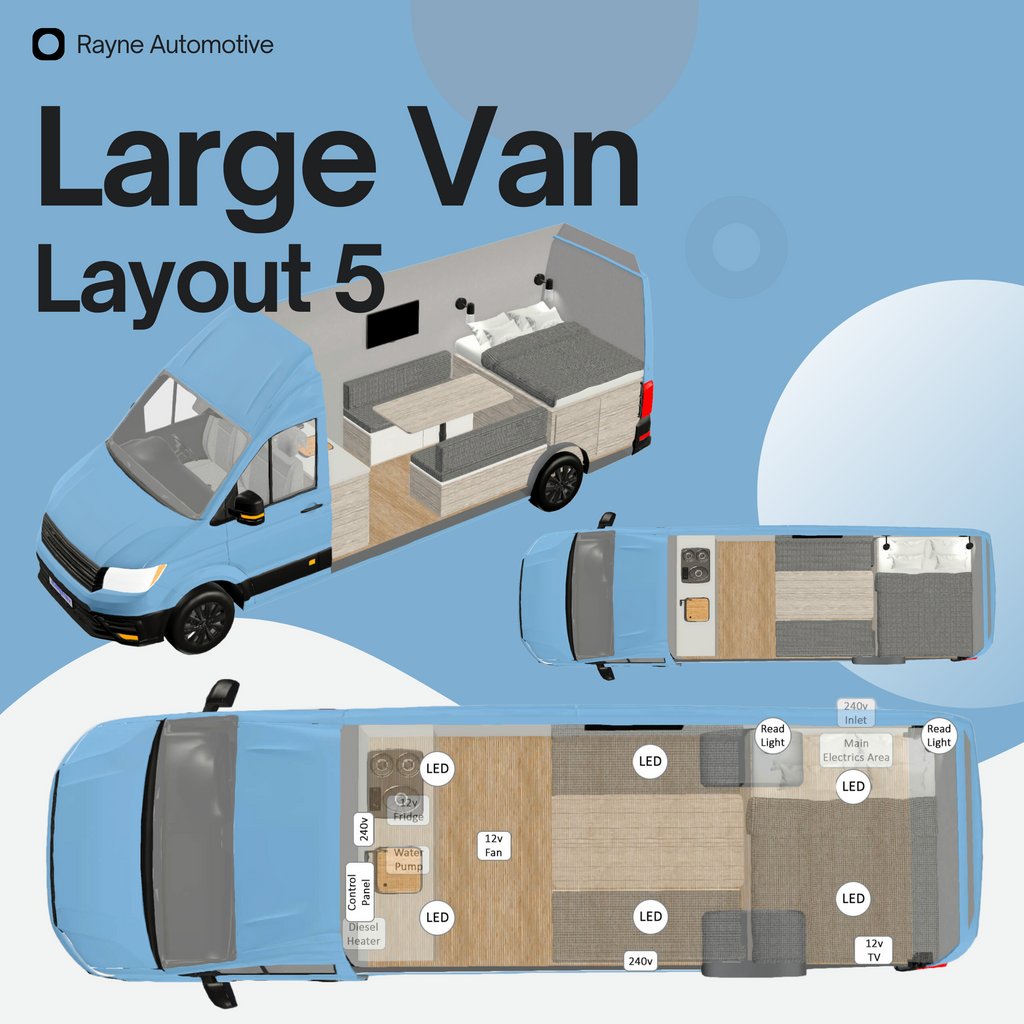

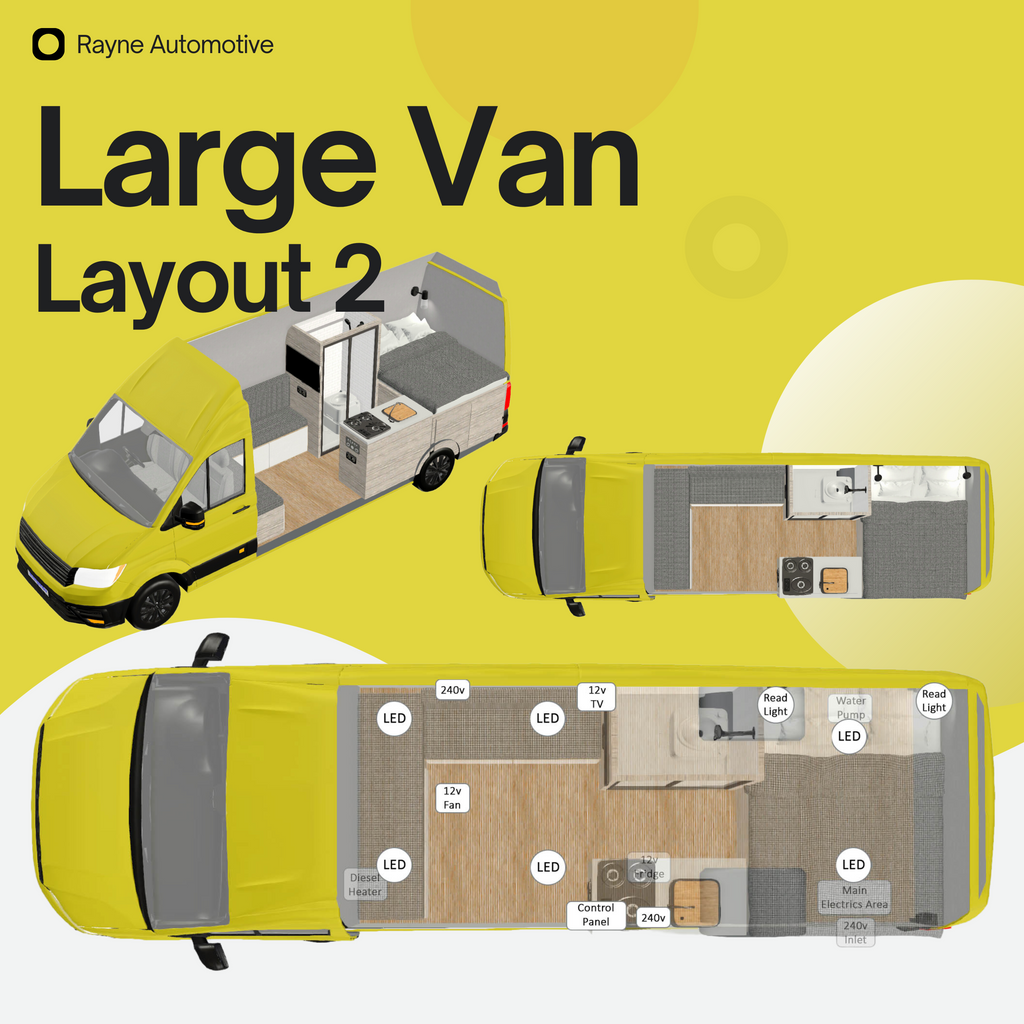

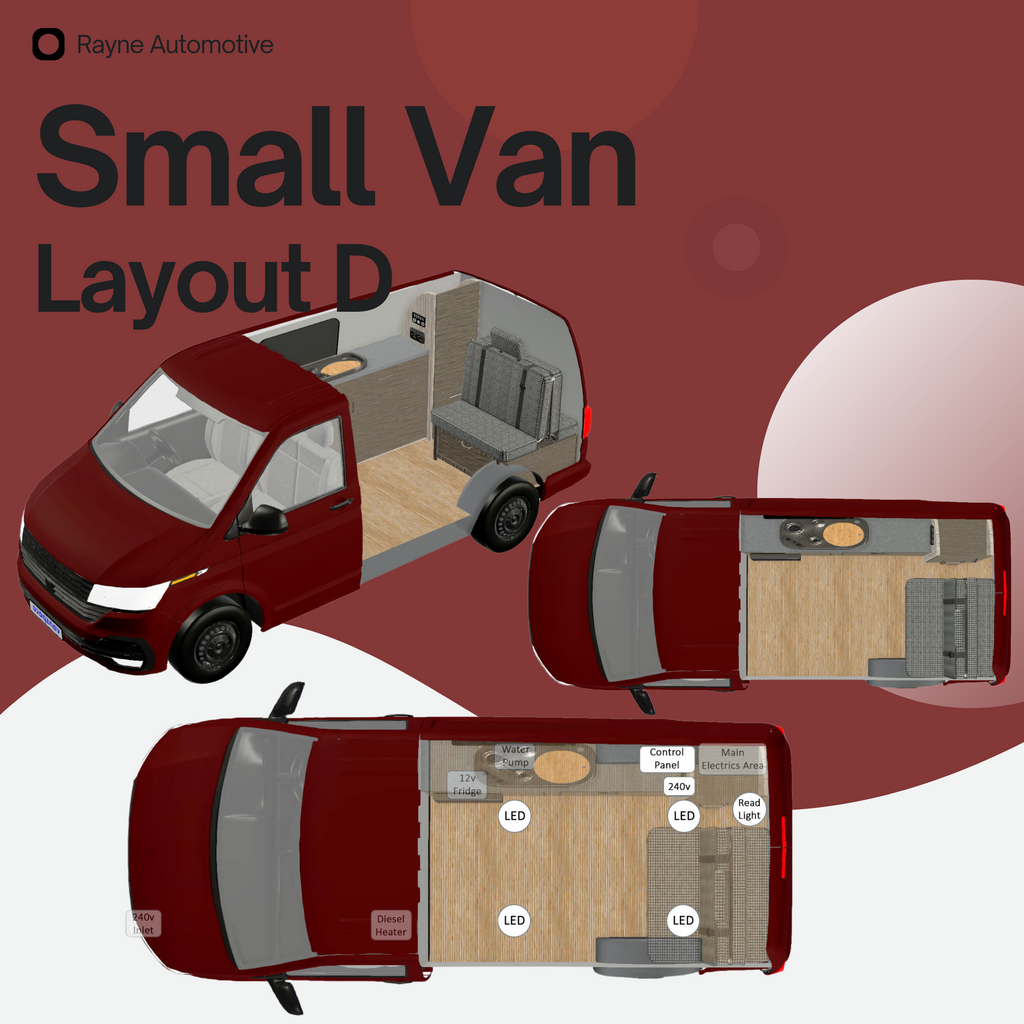

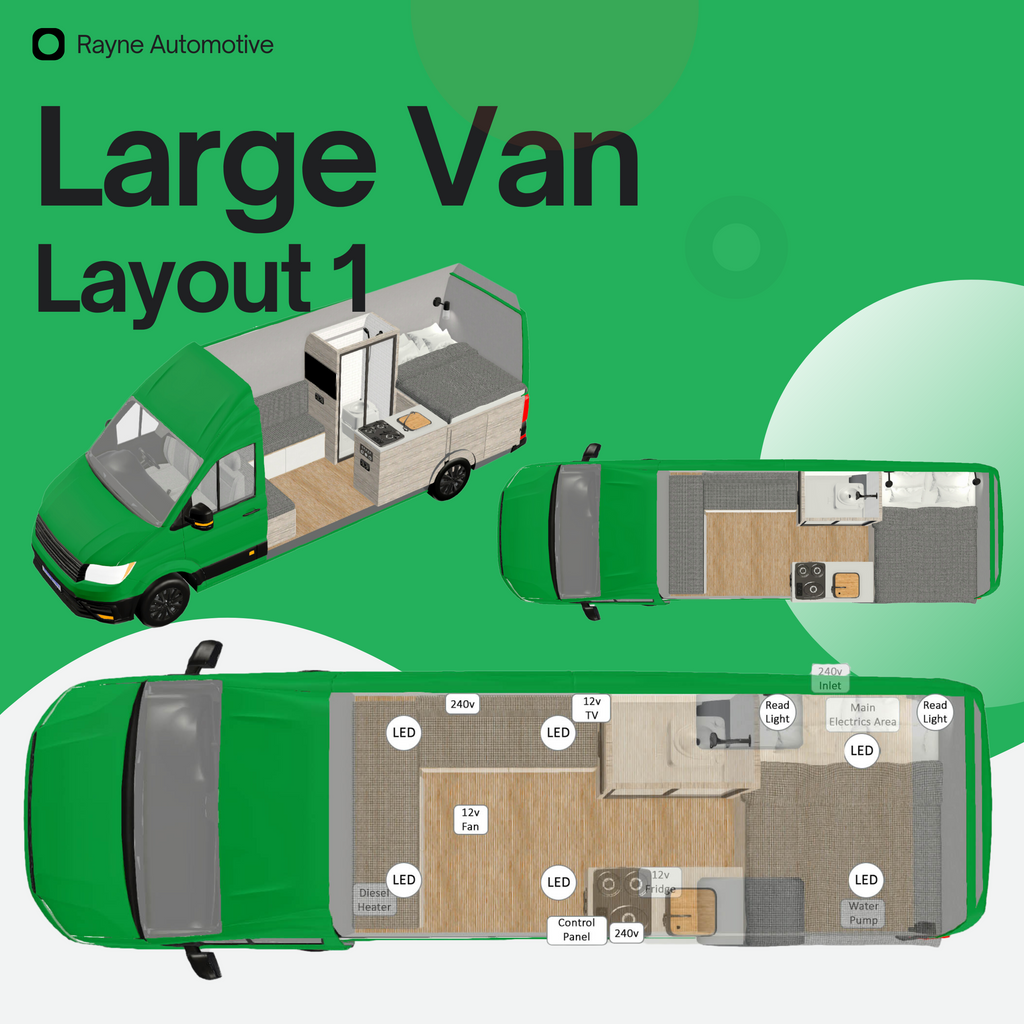

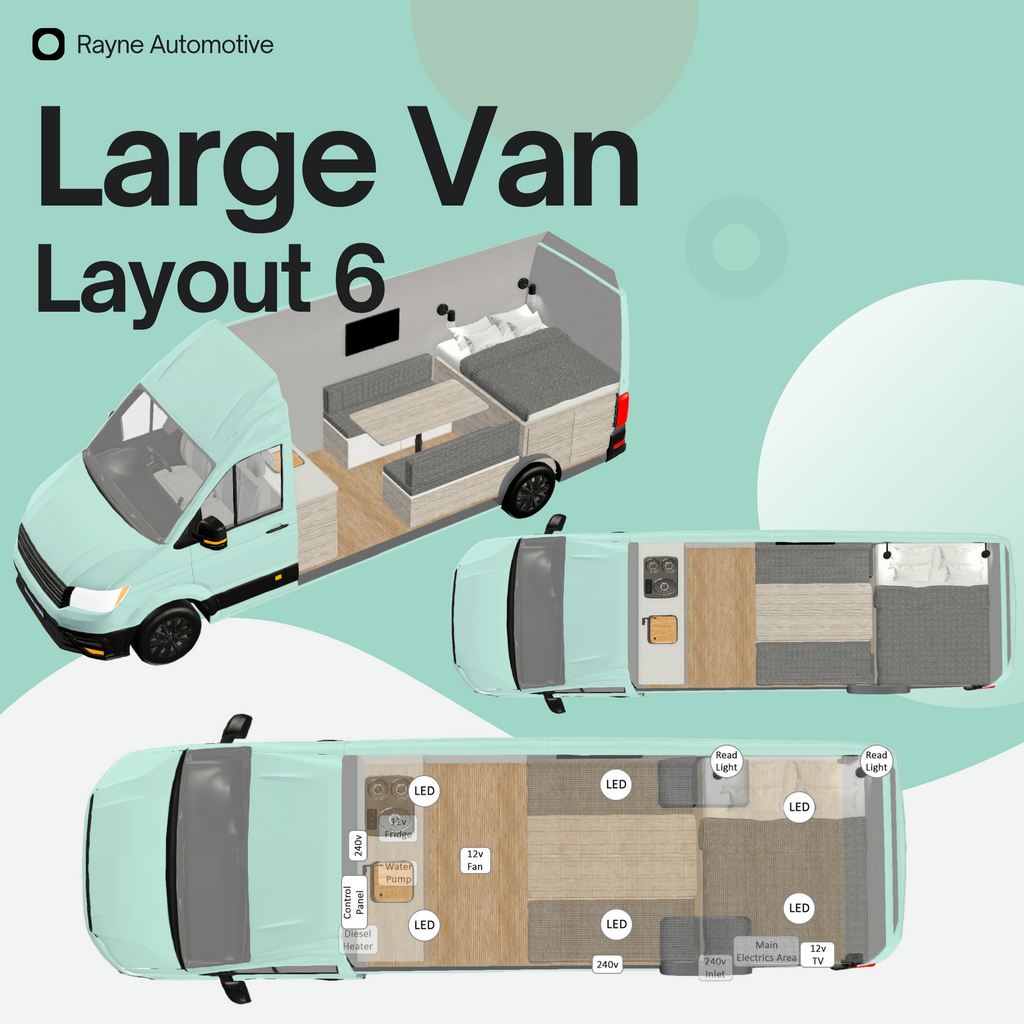

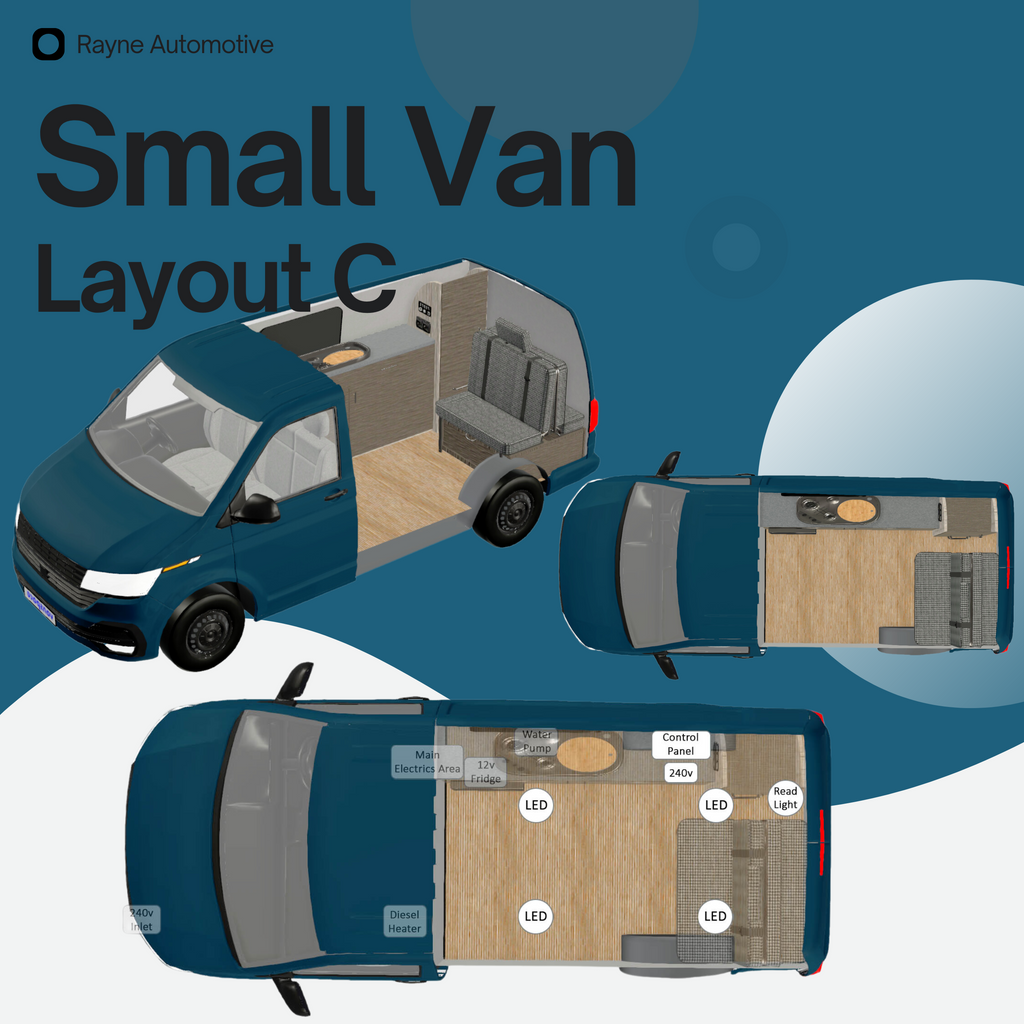

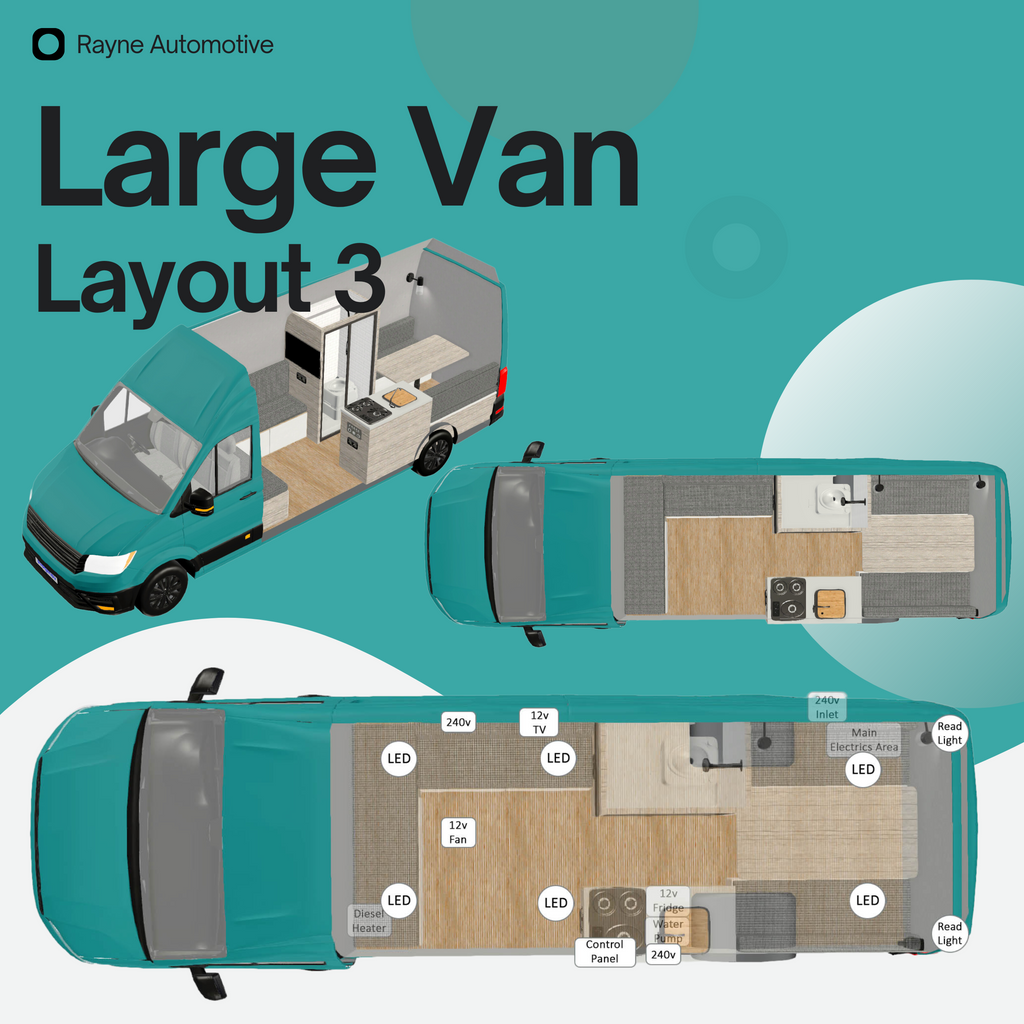

Layouts : 10 — Small Van A-D, Large Van 1-6 (loom and cables drawn to order)
📐 Component Dimensions
Component dimensions (L x W x H) — tap to expand and check your fit-out space
Victron Orion XS 50A DC-DC charger: 140 x 108 x 70 mm
12-way fuse box: 140 x 95 x 40 mm
Victron 150A busbar: 230 x 110 x 70 mm
SmartSolar 100/30 MPPT controller: 100 x 113 x 50 mm
Solar PV Isolator (DC Breaker): 140 x 65 x 90 mm
2 x 190W rigid solar panels: 1485 x 668 x 30 mm each (10.5 kg)
Victron Multiplus 2000Va inverter/charger: 506 x 236 x 147 mm
Mains consumer unit (2 x RCBO): 175 x 145 x 100 mm
Fogstar Drift Gen2 230Ah lithium battery: 383 x 193 x 250 mm
🔌 You Might Also Need
MC4 Internal Connector Service
clean pass-through cable entry for the solar run
C-line Sockets & Switches
your 240V outlets and 12V fittings for the living area
Roof-mount fixings & sealant
not supplied with the mount hardware
❓ FAQ
Can I really cook on electricity off-grid?
Yes — the Multiplus delivers 1600W of continuous pure sine 240V, which runs a single-zone induction hob, air fryer, or kettle (check your appliance's rating). With 230Ah of battery and 380W of solar, cooking bursts are comfortably within the daily budget.
Which layout should I choose?
We offer 10 layouts — Small Van A-D and Large Van 1-6 — with looms and cables drawn to order. If yours isn't listed, call or email us before ordering and we'll spec a custom one.
I'm not sure which system level I need.
Try our online System Builder at systembuilder.rayneautomotive.co.uk. The Off-Grid Adventure suits off-grid trips with electric cooking; the Full Off-Grid adds the Multiplus II 3000Va, 760W of solar, monitoring and a 460Ah battery for full-time living.
Can I install this myself?
The 12V side is very achievable for a competent DIYer — drawn-to-order cables, labelled loom, straightforward connections. For the 240V side (Multiplus and mains wiring) we recommend a qualified installer signs off the final connection.
