Mains 240V Power Board with Charger

NCC Trained · Victron Dealer

Mains 240V Power Board with Charger

Rayne Automotive

£221.15 (options vary)

Warranty 1 year

Available to order

Charger Size
Config
Design your full system

183 five-star Google reviews

Delivery

We're closed for a family wedding from Monday 26 to Wednesday 28 October. Orders placed during this time are processed when we reopen on Thursday 29 October.

Free UK delivery on orders over £50

  • Made in the UK · NCC & Victron trained team
  • Technical support from the people who build the systems
  • Need help? Speak with an expert

Options and prices

Every option below is priced live from the shop. Choose on this page or in the panel above.

Show all options and prices
OptionPrice
7A / Board Only £221.15
7A / With Wiring (Covered) £279.41
7A / With Wiring (Black) £284.32
7A / With Wiring (White) £284.32
17A / Board Only £256.77
17A / With Wiring (Covered) £315.03
17A / With Wiring (Black) £319.94
17A / With Wiring (White) £319.94
30A / Board Only £285.90
30A / With Wiring (Covered) £344.16
30A / With Wiring (Black) £349.07
30A / With Wiring (White) £349.07
7A / With Wiring Loom (No Inlet) £272.38
17A / With Wiring Loom (No Inlet) £308.00
30A / With Wiring Loom (No Inlet) £337.13

About this product

Campervan installations requiring 240V mains sockets and dedicated 12V battery charging from campsite hook-up without an inverter
✓ Pre-Wired Board✓ Integrated Victron Charger✓ Bluetooth App Control✓ RCD Safe

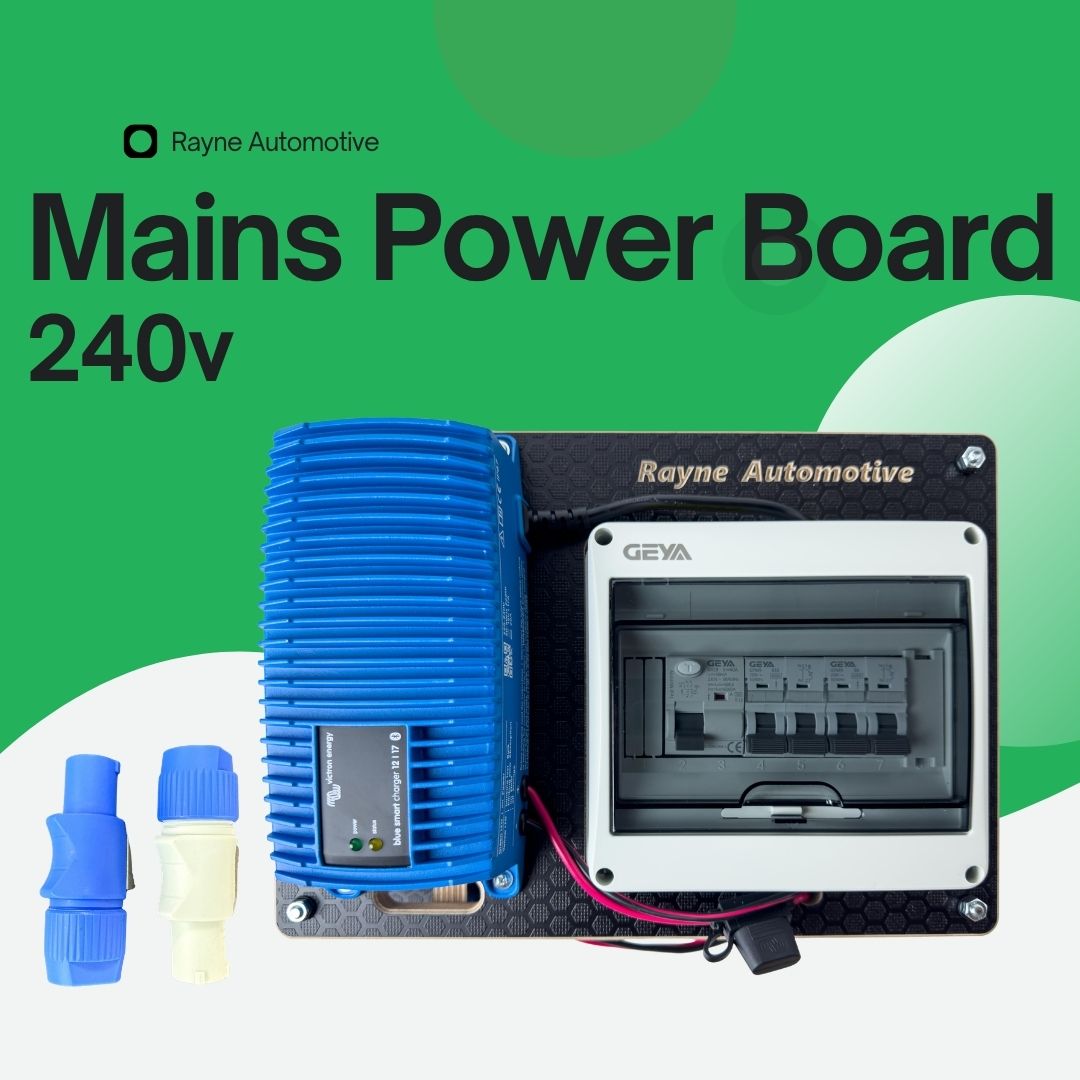

All-in-one pre-wired 240V mains distribution board with integrated Victron Blue Smart mains battery charger.

Powers your 240V AC sockets from campsite mains whilst automatically charging your 12V leisure battery, complete with pre-wired consumer unit, double-pole type A RCD protection, and fused DC output leads ready to wire in. Pre-wired and hand-assembled in the UK by Rayne Automotive on a CNC-machined phenolic plywood backing board, it features a Victron Blue Smart charger (7A, 17A, or 30A) for multi-stage battery care. Integrated Bluetooth provides wireless charge monitoring and setup via the VictronConnect app. Ideal for campervan owners wanting a complete, safe mains hookup and charging solution in one panel.

  • Choice of Charging Power: Select between 7A (budget/small battery), 17A (standard leisure setup), or 30A (fast charging / lithium banks) Victron chargers.
  • Bluetooth Smart Built-In: Monitor battery charging voltage, current, and charge stage directly on your smartphone via VictronConnect.
  • Complete AC Protection: Fitted with a double-pole 30mA RCD and dual MCBs to protect all 240V AC socket outlets.
  • Lithium & AGM Compatible: Preset charging profiles for LiFePO4, AGM, GEL, and standard lead-acid batteries.
  • Pre-Wired Simplicity: Comes complete with AC input terminals, pre-wired socket outputs, fused DC battery leads, and CNC phenolic plywood mounting board.
  • All Victron components pre-programmed for lithium batteries before dispatch — less setup required, just connect and go

📊 Variants Compared

Charger Model Charge Rate Battery Compatibility Best For
VARIANTS) Headers: Charger Model Charge Rate Battery Compatibility Best For
Rows 7A Victron Blue Smart: 7A AGM / Gel Small AGM maintenance charging
17A Victron Blue Smart 17A AGM / Gel / Lithium Typical AGM setups
30A Victron Blue Smart 30A AGM / Gel / Lithium SCHEMATIC:
PLACEHOLDER — Mains 240V Power Board with Charger wiring diagram to be inserted] Shows Protected PowerCon inlet connection Victron Blue Smart charger Anderson connector to 12V power board AC distribution to 240V socket loop and 2-layer mounting system.

🔧 Tech Specs

Shared
  • Nominal AC Voltage : 230V AC, 50Hz (180-265V AC operating range)
  • Max AC Input Current : 16A campsite hook-up limit
  • DC Charger Output Options : 7A / 17A / 30A DC @ 12V
  • Charge Algorithm : 6-stage adaptive charge cycle (includes LiFePO4 profile)
  • Charger Efficiency : Up to 93%-94%
  • RCD Protection : 30mA Double Pole RCD
  • Circuit Breakers : 1x 6A MCB (Charger/Lighting) + 1x 16A MCB (Sockets)
  • Backboard Dimensions : 350 x 254 x 130 mm
  • Total Weight : 4 kg
  • Warranty : 1 Year Board / 5 Years Victron Charger
  • Bluetooth Range : Up to 10 metres

🗺️ How It Fits Your System

[Schematic to be inserted]

Shows how this product fits within the larger camper electrics system.

🔌 You Might Also Need

Mains Inlet Socket (Black or White Flush Mount): For external 240V site hook-up connection.

Double Sockets (Black Nickel, Brushed Silver, or C-Line): 240V switched 3-pin interior socket outlets.

10M Mains Hook-Up Lead: Campsite power connection extension cable.

❓ FAQ

Which charger size should I choose?

7A is ideal for light power users with smaller Lead-Acid/AGM batteries up to 95Ah. 17A is our recommended standard for 100Ah-150Ah AGM/Lithium batteries. 30A is best for large battery banks (200Ah+) or rapid recharging during short campsite stays.

Does this charger support Lithium LiFePO4 batteries?

Yes. All Victron Blue Smart chargers include a dedicated Lithium charging profile accessible via the VictronConnect app. COMPARISON TABLE (CHARGER VARIANTS): Headers: Charger Model, Charge Rate, Battery Compatibility, Best For Rows: 7A Victron Blue Smart: 7A, AGM / Gel, Small AGM maintenance charging 17A Victron Blue Smart: 17A, AGM / Gel / Lithium, Typical AGM setups 30A Victron Blue Smart: 30A, AGM / Gel / Lithium, SCHEMATIC: [SCHEMATIC PLACEHOLDER — Mains 240V Power Board with Charger wiring diagram to be inserted] Shows: Protected PowerCon inlet connection, Victron Blue Smart charger, Anderson connector to 12V power board, AC distribution to 240V socket loop, and 2-layer mounting system. YOU MIGHT ALSO NEED: - Mains Inlet Socket (Black or White Flush Mount): For external 240V site hook-up connection. - Double Sockets (Black Nickel, Brushed Silver, or C-Line): 240V switched 3-pin interior socket outlets. - 10M Mains Hook-Up Lead: Campsite power connection extension cable. --------------------------------------------------------------------------------

Questions and answers

Can Rayne Automotive help me choose the right option?

Yes. Use the System Builder for a full specification, or book a consultation and tell us what you want to run and what is already fitted.

Do you supply trade accounts?

Yes. Van converters can apply for a Rayne Automotive trade account for kit pricing and support.

Is help available after I buy?

Yes. The Help Centre carries installation instructions, and the team supports what it sells.
