Mains 240V Power Board for Multiplus

NCC Trained · Victron Dealer

Mains 240V Power Board for Multiplus

Rayne Automotive

£183.51 (options vary)

Warranty 1 year

Available to order

Config
Design your full system

183 five-star Google reviews

Delivery

We're closed for a family wedding from Monday 26 to Wednesday 28 October. Orders placed during this time are processed when we reopen on Thursday 29 October.

Free UK delivery on orders over £50

  • Made in the UK · NCC & Victron trained team
  • Technical support from the people who build the systems
  • Need help? Speak with an expert

Options and prices

Every option below is priced live from the shop. Choose on this page or in the panel above.

Show all options and prices
OptionPrice
Board Only £183.51
With Wiring (Covered) £241.77
With Wiring (Black) £246.68
With Wiring (White) £246.68
With Wiring Loom (No Inlet) £234.74

About this product

Campervan systems integrating a Victron MultiPlus or MultiPlus-II inverter/charger
✓ Pre-Wired MultiPlus Board✓ Double Pole RCBO Protection✓ Plug & Play 240V AC Distribution✓ BS 7671 Compliant

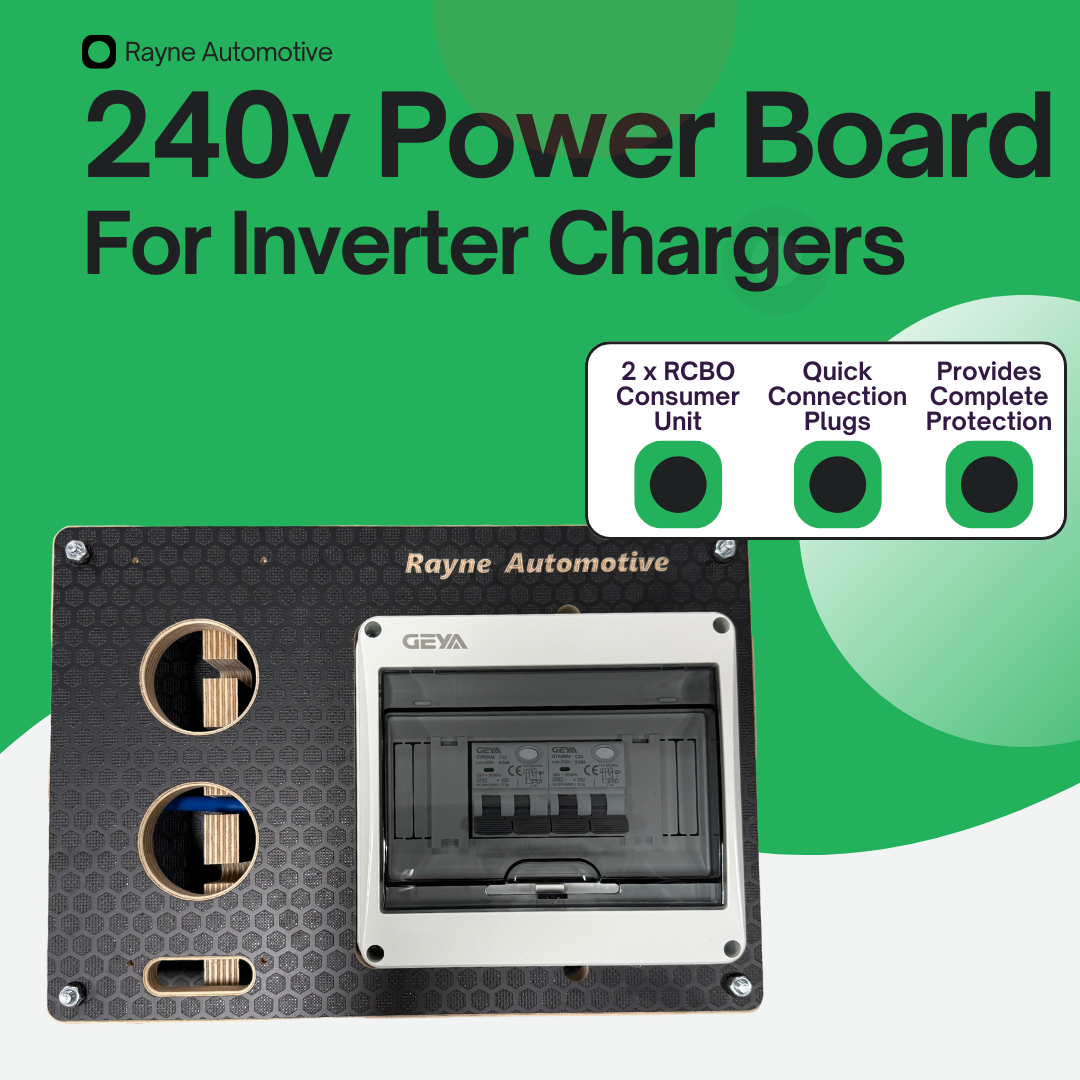

Professional pre-wired 240V mains distribution board engineered specifically for Victron MultiPlus inverter/charger installations.

Simplifies AC wiring by providing a pre-wired, pre-tested 240V distribution system designed specifically for Victron MultiPlus inverter/chargers. Mounted on a CNC-machined phenolic plywood backing board, it delivers complete double-pole circuit protection and correct neutral-earth bonding required for safe switching between shore power and inverter output (handled inside the MultiPlus). Pre-fitted RCBOs guarantee full BS 7671 compliance whilst drastically reducing installation time. This is the ultimate choice for installers who want a clean, professional, and safe mains setup without the hassle of custom wiring.

  • MultiPlus Ready: Engineered specifically for seamless AC In and AC Out integration with Victron MultiPlus & MultiPlus-II inverter/chargers.
  • Complete AC Safety: Features a double-pole 30mA Type A RCBOs for complete protection on campsite hook-up or inverter supply.
  • Pre-Wired & Tested: Fully wired in-house with tri-rated mains cable and heavy-duty terminal blocks for fast, error-free installation.
  • Clean CNC Mounting: Pre-mounted on a durable CNC-machined phenolic plywood backboard with pre-drilled mounting locations for a factory-finish installation.
  • Standard UK Compliance: Built to meet UK 18th Edition BS 7671 section 721 standards for caravan and motorhome electrical installations.
  • All Victron components pre-programmed for lithium batteries before dispatch — less setup required, just connect and go

📊 Variants Compared

MultiPlus Model Inverter Output Charger Transfer Switch Best For
MultiPlus MODELS) Headers: MultiPlus Model Inverter Output Charger Transfer Switch Best For
Rows 500Va: 500Va (350W) 20A 16A Light loads — laptops chargers
800Va 800Va (650W) 35A 16A Everyday electronics + travel kettle
1200Va 1200Va (840W) 50A 16A Balanced power — small microwave
1600Va 1600Va (1300W) 70A 16A Kitchen appliances short bursts
2000Va 2000Va (1600W) 80A 32A Full campervan — kettles microwaves
3000Va 3000Va (2400W) 120A 32A SCHEMATIC:
PLACEHOLDER — Mains 240V Power Board for MultiPlus wiring diagram to be inserted] Shows Protected PowerCon inlet connection Victron MultiPlus inverter/charger connections AC distribution to 240V socket loop and 2-layer mounting system.

🔧 Tech Specs

Shared
  • Operating Voltage : 230V AC, 50Hz
  • Max Current Rating : 16A (standard UK campsite hook-up limit)
  • RCD Protection : 30mA Double Pole RCD (Type A)
  • Circuit Breakers : Double Pole MCB / RCBO protection for socket circuits
  • Wiring Spec : 2.5mm² tri-rated / flexible mains cable
  • Backboard Dimensions : 350 x 254 x 130 mm
  • Total Weight : 4 kg
  • Standards : BS 7671 18th Edition Section 721, BS EN 61008
  • Warranty : 1 Year

🗺️ How It Fits Your System

[Schematic to be inserted]

Shows how this product fits within the larger camper electrics system.

🔌 You Might Also Need

240V loom

12V boards

multiplus 2000va

❓ FAQ

Do I need this board if I am installing a Victron MultiPlus?

Yes. The MultiPlus has AC input and AC output terminals, but regulations require double-pole RCBO protection and circuit breakers between the campsite inlet, the MultiPlus, and your 240V sockets. This board provides that complete distribution setup pre-wired.

Will this work with 1200VA, 2000VA, and 3000VA MultiPlus units?

Absolutely. It is designed to pair with Victron MultiPlus inverter/chargers rated from 500VA up to 3000VA with 16A pass-through capability. COMPARISON TABLE (COMPATIBLE MultiPlus MODELS): Headers: MultiPlus Model, Inverter Output, Charger, Transfer Switch, Best For Rows: 500Va: 500Va (350W), 20A, 16A, Light loads — laptops, chargers 800Va: 800Va (650W), 35A, 16A, Everyday electronics + travel kettle 1200Va: 1200Va (840W), 50A, 16A, Balanced power — small microwave 1600Va: 1600Va (1300W), 70A, 16A, Kitchen appliances, short bursts 2000Va: 2000Va (1600W), 80A, 32A, Full campervan — kettles, microwaves 3000Va: 3000Va (2400W), 120A, 32A, SCHEMATIC: [SCHEMATIC PLACEHOLDER — Mains 240V Power Board for MultiPlus wiring diagram to be inserted] Shows: Protected PowerCon inlet connection, Victron MultiPlus inverter/charger connections, AC distribution to 240V socket loop, and 2-layer mounting system. YOU MIGHT ALSO NEED: - 240V loom - 12V boards - multiplus 2000va --------------------------------------------------------------------------------

Questions and answers

Can Rayne Automotive help me choose the right option?

Yes. Use the System Builder for a full specification, or book a consultation and tell us what you want to run and what is already fitted.

Do you supply trade accounts?

Yes. Van converters can apply for a Rayne Automotive trade account for kit pricing and support.

Is help available after I buy?

Yes. The Help Centre carries installation instructions, and the team supports what it sells.
