Victron Cerbo GX Mk2 + GX Touch Display | Campervan & Motorhome Power Monitoring

NCC Trained · Victron Dealer

Victron Cerbo GX Mk2 + GX Touch Display | Campervan & Motorhome Power Monitoring

Rayne Automotive

£179.99 (options vary)

Warranty 1 year

Available to order

GX Touch Display
Design your full system

183 five-star Google reviews

Delivery

Dispatched every Monday and Thursday with next-day delivery

Free UK delivery on orders over £50

  • Made in the UK · NCC & Victron trained team
  • Technical support from the people who build the systems
  • Need help? Speak with an expert

Options and prices

Every option below is priced live from the shop. Choose on this page or in the panel above.

Show all options and prices
OptionPrice
No £179.99
5 Inch Screen £327.95
7 Inch Screen £351.71

About this product

DC BATTERY SYSTEMS · MONITORING · OFF-GRID SYSTEMS
✓ Cerbo GX Mk2✓ GX Touch 50✓ Venus OS✓ WiFi/Ethernet✓ VRM Portal
Central monitoring and control hub for Victron power systems — track every component from one display or remotely via VRM

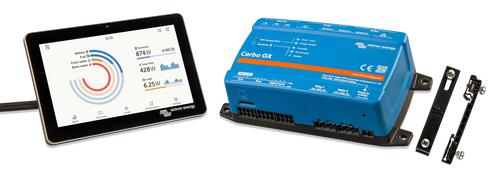

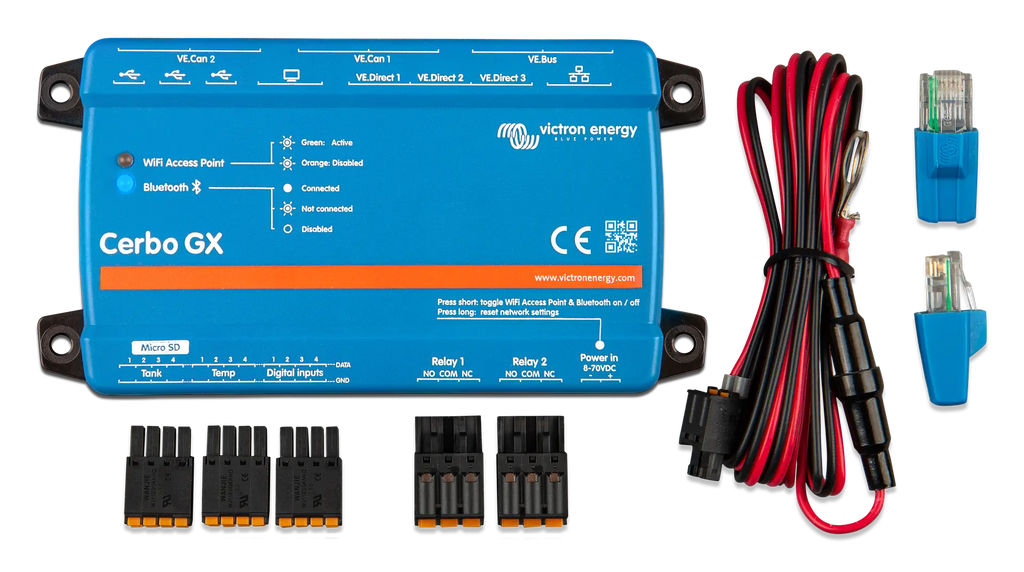

Brings all your Victron components onto a single dashboard so you can monitor battery state of charge, solar yield, power consumption, and inverter status at a glance. The Cerbo GX Mk2 connects to your MPPT controller, battery BMS, inverter/charger, and shunt via VE.Direct, VE.Can, and BMS Can cables, displaying live data on the optional GX Touch 50 or 70 touchscreen. Built-in WiFi and the free VRM portal let you check your system remotely from a smartphone. If you are building a multi-component Victron system and want professional-grade monitoring without guesswork, this is the central hub that ties it all together.

  • Central monitoring hub for all Victron components — MPPT, inverter/charger, battery BMS, and shunt

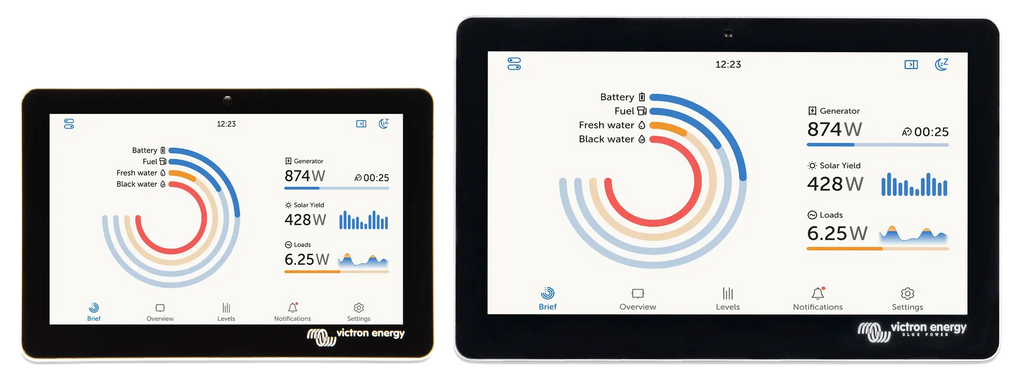

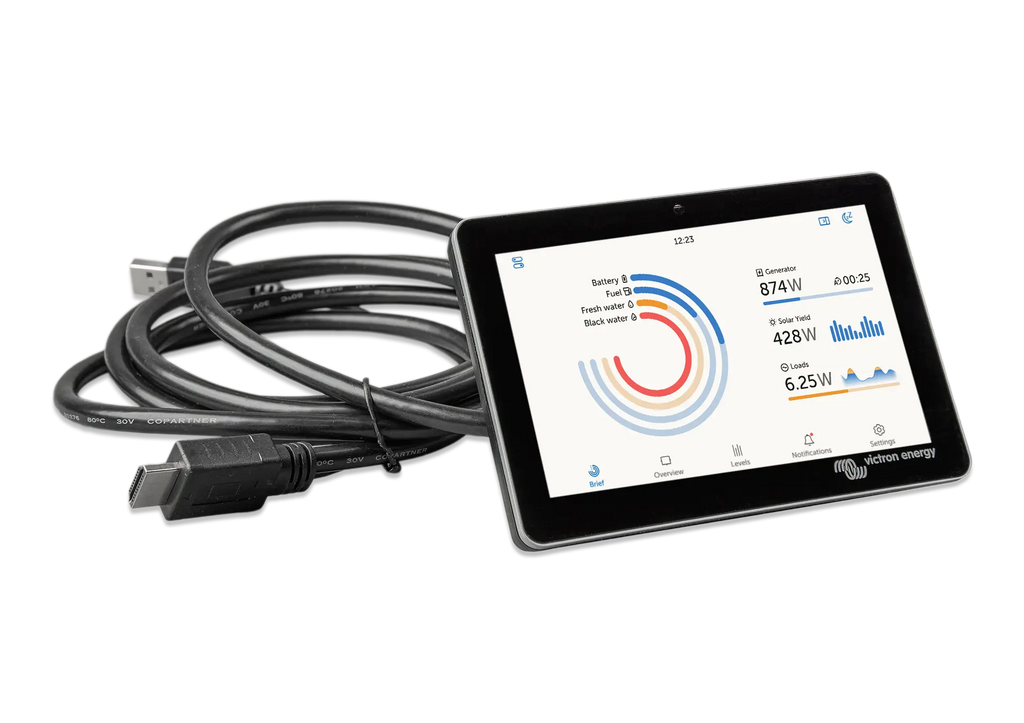

  • Optional GX Touch 50 (5-inch) or GX Touch 70 (7-inch) touchscreen display with capacitive touch
  • Connects via VE.Direct, VE.Can, and BMS Can ports
  • Built-in WiFi and Ethernet for remote monitoring via the free VRM portal
  • Runs Venus OS — Victron's open-source monitoring platform
  • Supports tank level monitoring (GX Tank 140 module, sold separately)
  • VRM app shows historical data, alarms, and system status from anywhere

⚡ Key Features

01Single Dashboard for Everything

Instead of checking separate apps for your solar controller, battery, and inverter, the Cerbo GX aggregates everything onto one screen. State of charge, solar input, load draw, charge status — all visible at a glance.

02Remote Monitoring via VRM Portal

Connect the Cerbo to WiFi and access your system remotely through the free Victron VRM app or web portal. Get alarm notifications, historical trends, and real-time status from your phone anywhere in the world.

03BMS Can Integration

Connects directly to Fogstar Drift Gen2 batteries via CAN bus cables for cell-level monitoring without an external shunt. See individual cell voltages, temperature, and BMS protection status on the GX Touch display.

04Tank & Temperature Support

Add the GX Tank 140 module (sold separately) to monitor fresh water, grey water, and waste tank levels, plus temperature sensors for fridge and heating systems. One hub for your entire van's systems.

🔧 Tech Specs

Shared
  • Processor : Dual-core 1GHz
  • Display : Optional GX Touch 50 (5-inch) or GX Touch 70 (7-inch) — sold separately or as a bundle
  • Connectivity : WiFi 2.4GHz, Ethernet (RJ45), Bluetooth
  • Ports : 3x VE.Direct, 2x VE.Can, 1x BMS Can, 2x USB, 1x RS485
  • Bluetooth : Built-in (for setup via VictronConnect app)
  • Mounting : Surface mount or DIN-rail with DIN35 adapter (not included)
  • Power Supply : 8.5V-70V DC (12V/24V compatible)
  • Dimensions (Cerbo) : 115mm x 85mm x 40mm
  • Dimensions (Touch 50) : 132mm x 87mm x 20mm
  • Operating System : Venus OS
  • Warranty : 1 Year (Rayne Automotive)
  • Kit Contents : 1x switch panel, 1x cutout template, 4x mounting screws, 2x connector blocks, 14x 6.3mm spade terminals

🔌 You Might Also Need

VE.Direct Cables

Connect MPPT controller and SmartShunt to Cerbo GX

BMS Can Cable

Connect Fogstar Drift Gen2 battery to Cerbo GX

GX Tank 140 Module

Add tank level monitoring

Questions and answers

Can Rayne Automotive help me choose the right option?

Yes. Use the System Builder for a full specification, or book a consultation and tell us what you want to run and what is already fitted.

Do you supply trade accounts?

Yes. Van converters can apply for a Rayne Automotive trade account for kit pricing and support.

Is help available after I buy?

Yes. The Help Centre carries installation instructions, and the team supports what it sells.
