Rayne Automotive Small Van A van layout wiring diagram

Campervan Power Board with Van Layout Wiring Loom — Pre-Wired & Tested

£521.35
0
inc. VAT
Charger Size: 18A
Van Layout: Small Van A
Quantity:
Every order plants 1 tree with Ecologi.
SKU:
PB12VWL-18A-SVA
Power Board + Matching Loom · Plug-and-Play 12V · All 10 Van Layouts

12V Power Board (with Van Layout Loom)

✓ 5 Board Options (18A–XS 70A)✓ Pre-Wired & Tested✓ 10 Van Layouts✓ Bluetooth Charging✓ Professionally Crimped
The pre-wired, tested 12V power board supplied with your van's layout wiring loom — mounting, fusing, switching and connection as two matched parts

Rayne Automotive's 12V power board — charger, fusing, switching and monitoring assembled and bench-tested on a CNC-machined phenolic plywood plate — paired with the van layout wiring loom that matches your exact conversion.

Choose your amperage — 18A, 30A, 30A HD or the Orion XS 50A / XS 70A — and your layout. The board arrives tested and ready to mount; the loom completes the furniture-plan runs, pre-terminated for a tidy, precise install.

  • Pre-wired, bench-tested board — mount it, connect the battery, done
  • Matching van layout loom — the furniture-plan runs, pre-terminated, colour coded and labelled
  • Five board options from 18A to the Orion XS 70A
  • 10 van-specific layouts

📦 What's Included

1

12V power board, pre-wired and bench-tested (amperage of your choice)

2

Van layout wiring loom (10 layouts)

3

Battery cable kit

🔧 Tech Specs

  • Board Options : 18A · 30A · 30A HD (150A Max Load) · Orion XS 50A · Orion XS 70A
  • Plate : CNC-machined phenolic plywood
  • Dimensions : 354 × 245 × 150mm
  • Layouts : Small Van A–D · Large Van 1–6
  • Bluetooth : Charger monitoring on board

❓ FAQ

Which amperage do I need?

Match your charger to your leisure battery size and how quickly you want to recover — each board's product page lists the guidance. All options charge lithium and AGM.

Why the loom as well as the board?

The board covers generation and protection; the loom carries power to your furniture plan — lights, sockets, switches — with every run pre-terminated and labelled for your exact layout. You Might Also Need: leisure battery · solar panel kit · mains 240V power board

Vendor: Rayne Automotive
Type: DC Battery Systems
Charger Size: 18A, 30A, 30A 150A Max, XS 50A, XS 70A

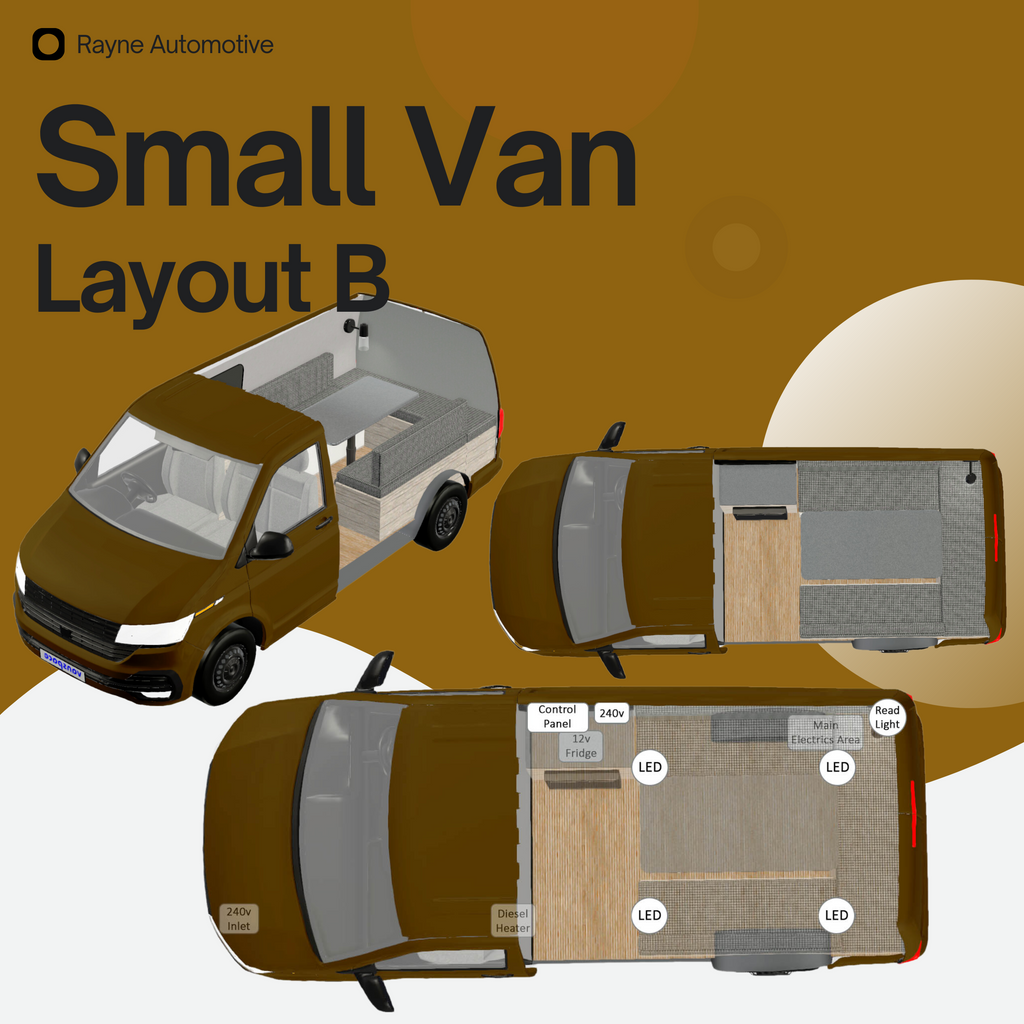

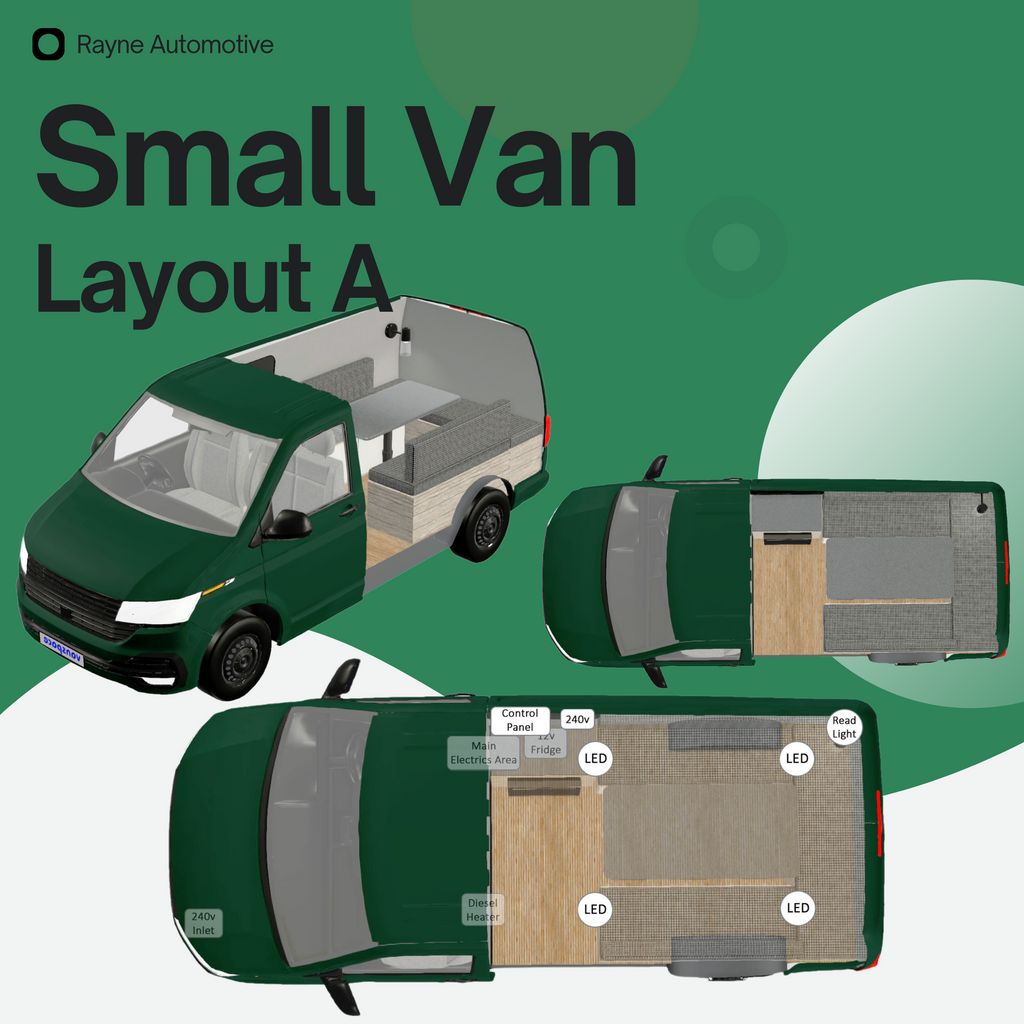

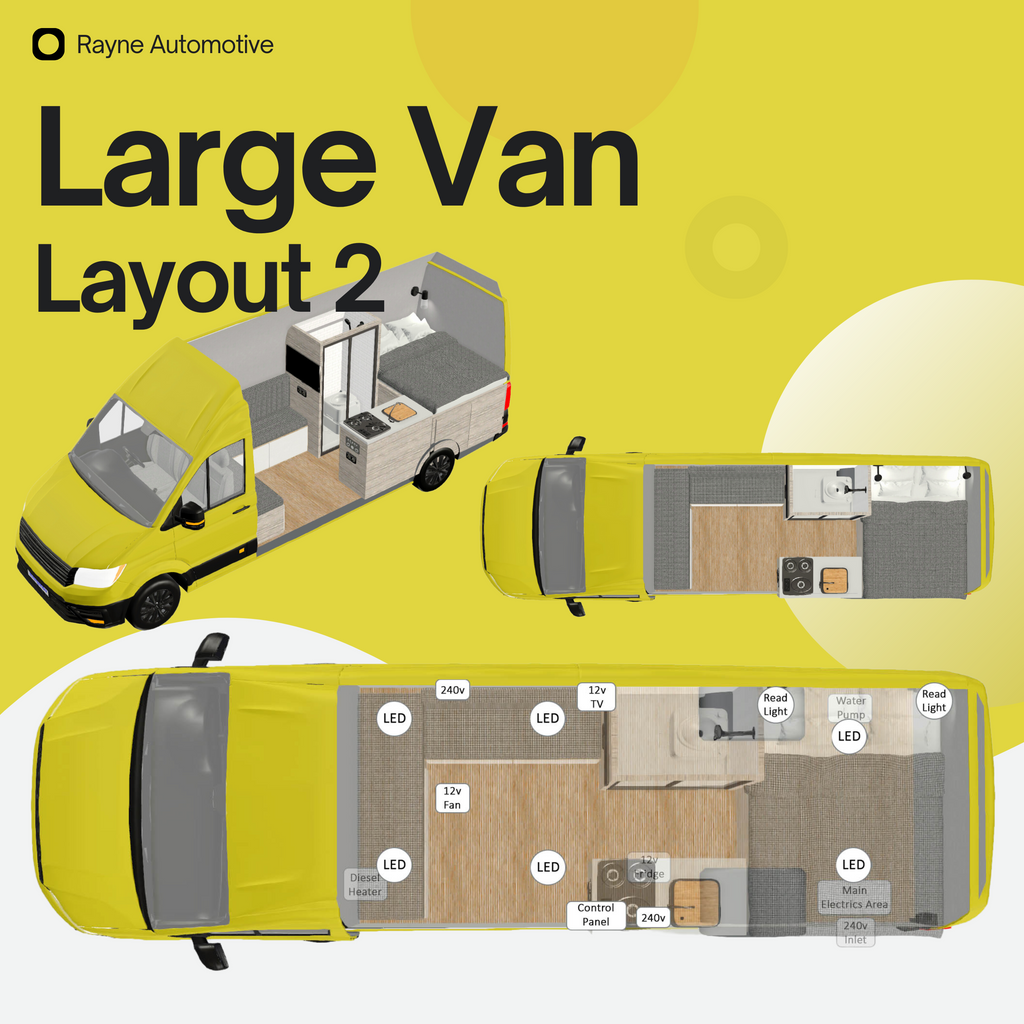

Van Layout: Small Van A, Small Van B, Small Van C, Small Van D, Large Van 1, Large Van 2, Large Van 3, Large Van 4, Large Van 5, Large Van 6
SKU: PB12VWL-18A-SVA

Related product
