Complete 12V Install Kit · Charger + Van Layout Loom · Self-Mounted/Connected Install

12V Core Kit (Install Kit)

✓ 4 Charger Options (18A–XS 70A)✓ 10 Van Layouts✓ Loom Included✓ Bluetooth Charging✓ Professionally Crimped

The 12V core install kit with your van's layout wiring loom included — DC-DC charger, fuse box, professionally crimped cable kit and the loom that completes the runs from the fuse box onward

Everything the 12V side of your conversion needs, in one kit and in unmounted form. You mount and connect the components — charger, fuse box, battery cables — up to the fuse box, with every cable pre-cut and professionally crimped for your exact van.

From the fuse box onward, the included van layout wiring loom completes the runs for you: loads defined, voltage drop calculated, cable selected, pre-terminated, colour coded, labelled, laid out for your van's specific furniture plan. Pick your DC-DC charger — Orion Smart 18A or 30A, or the XS 50A / XS 70A for bigger lithium banks — and your layout from the 10 van-specific options.

Self-mounted, connected install up to the fuse box — every split charge and battery cable pre-terminated and labelled
The included van layout loom completes the runs from the fuse box onward — loads defined, voltage drop calculated, cable selected, colour coded and labelled
Four charger options from Orion Smart 18A to the Orion XS 70A, all with Bluetooth monitoring

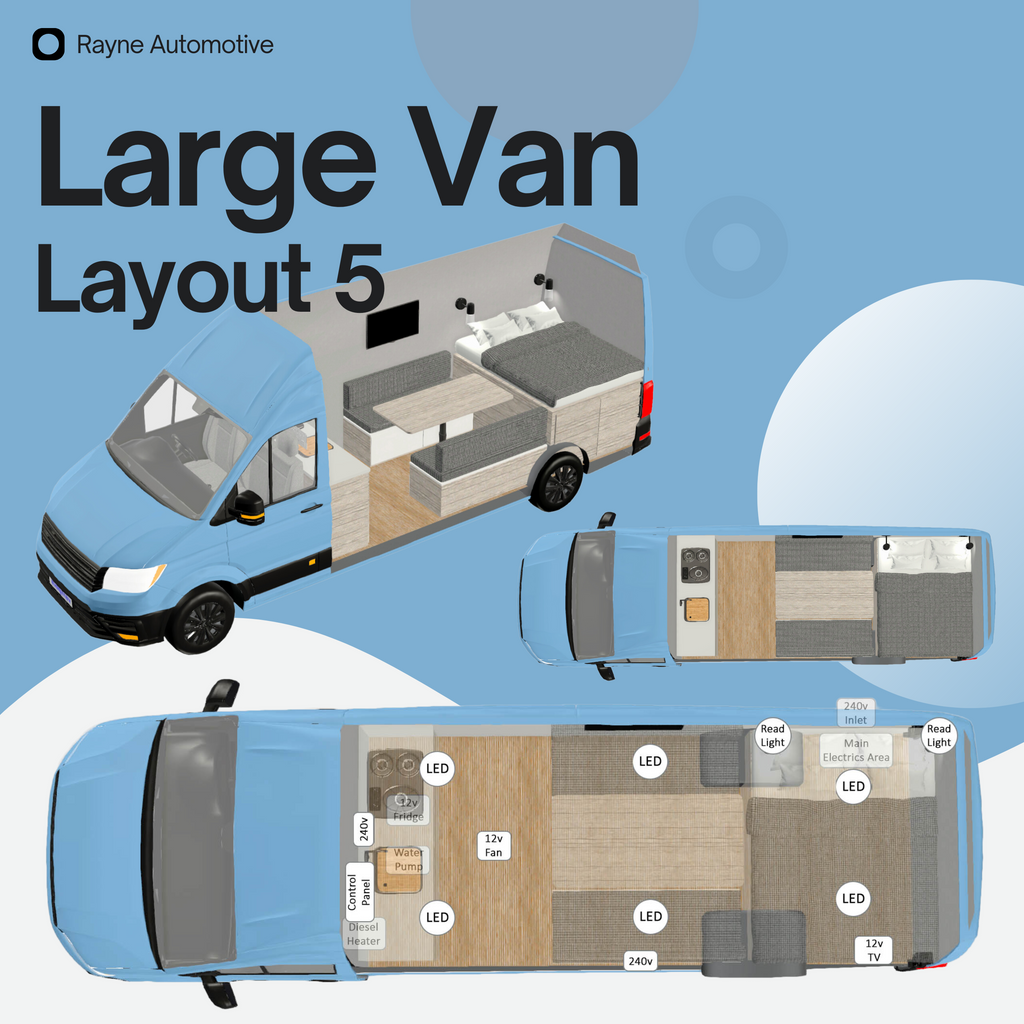

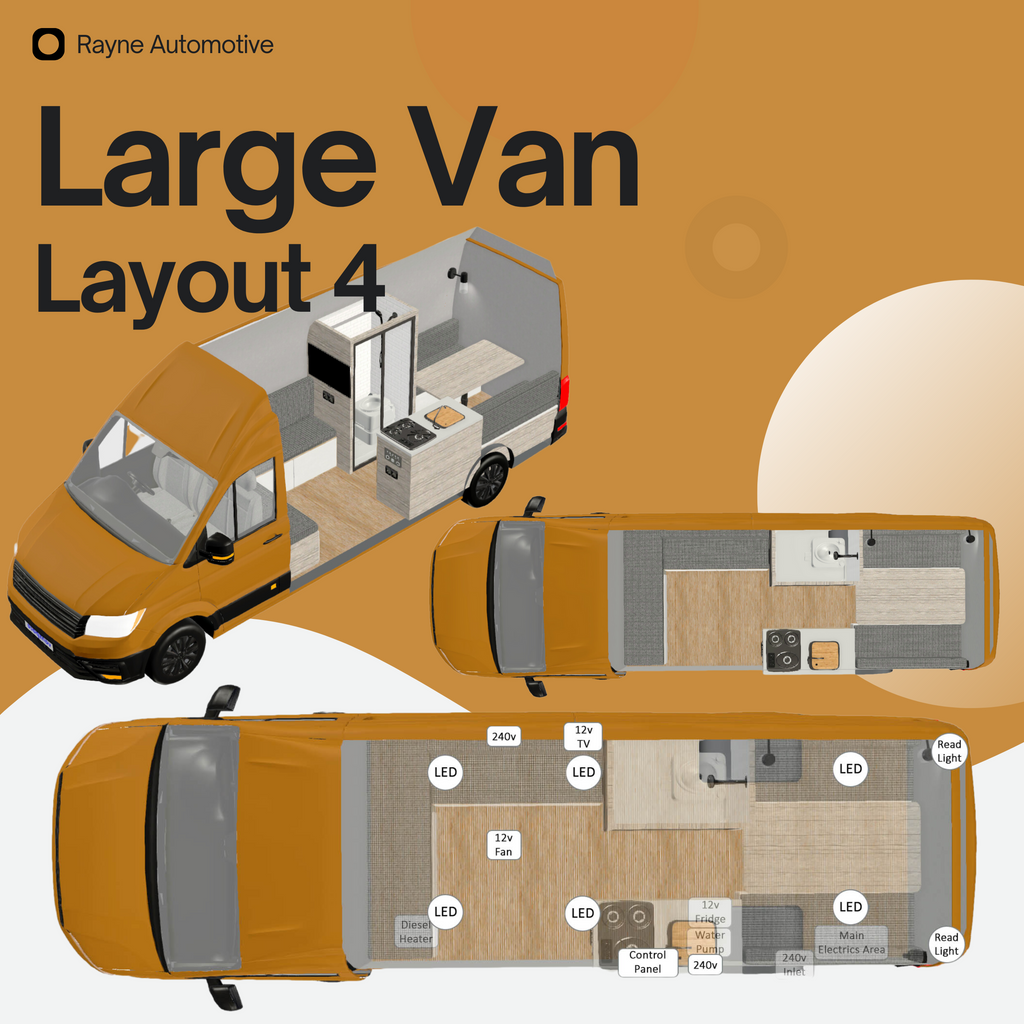

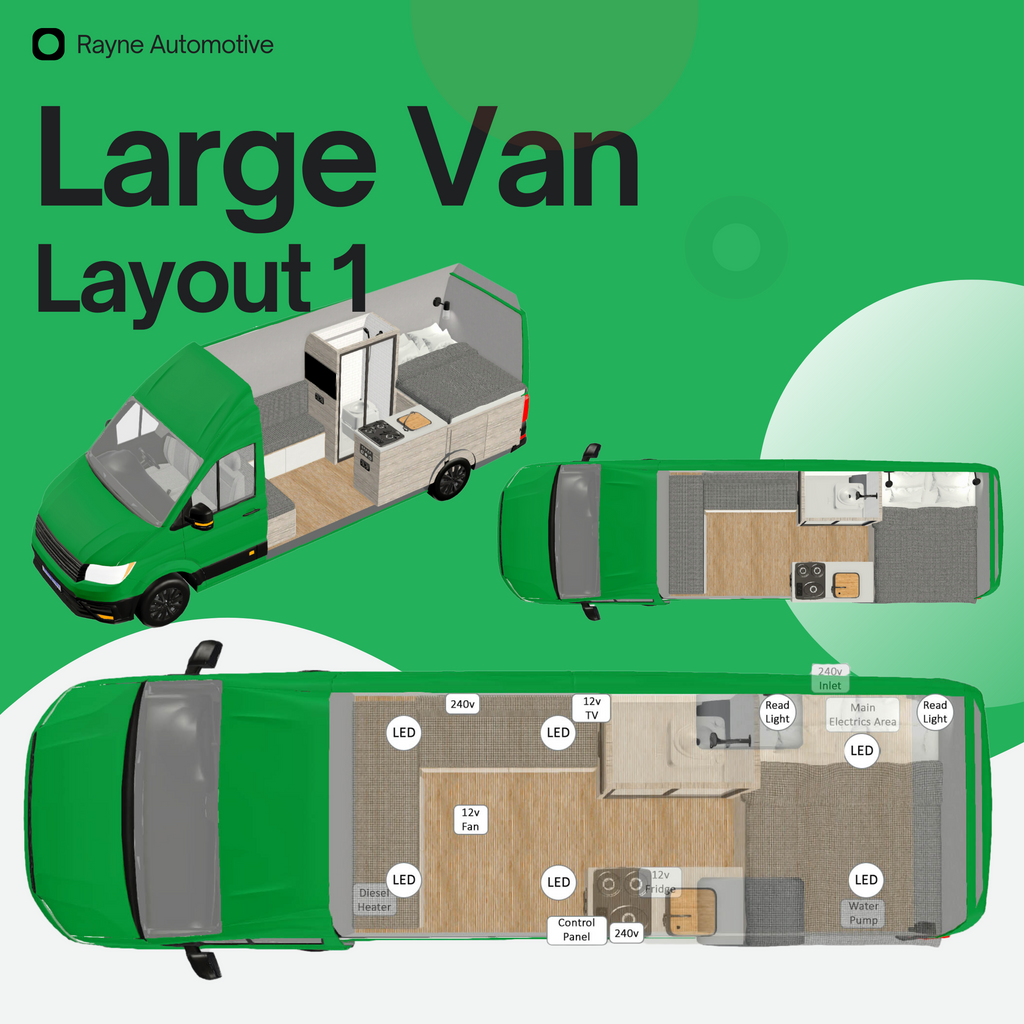

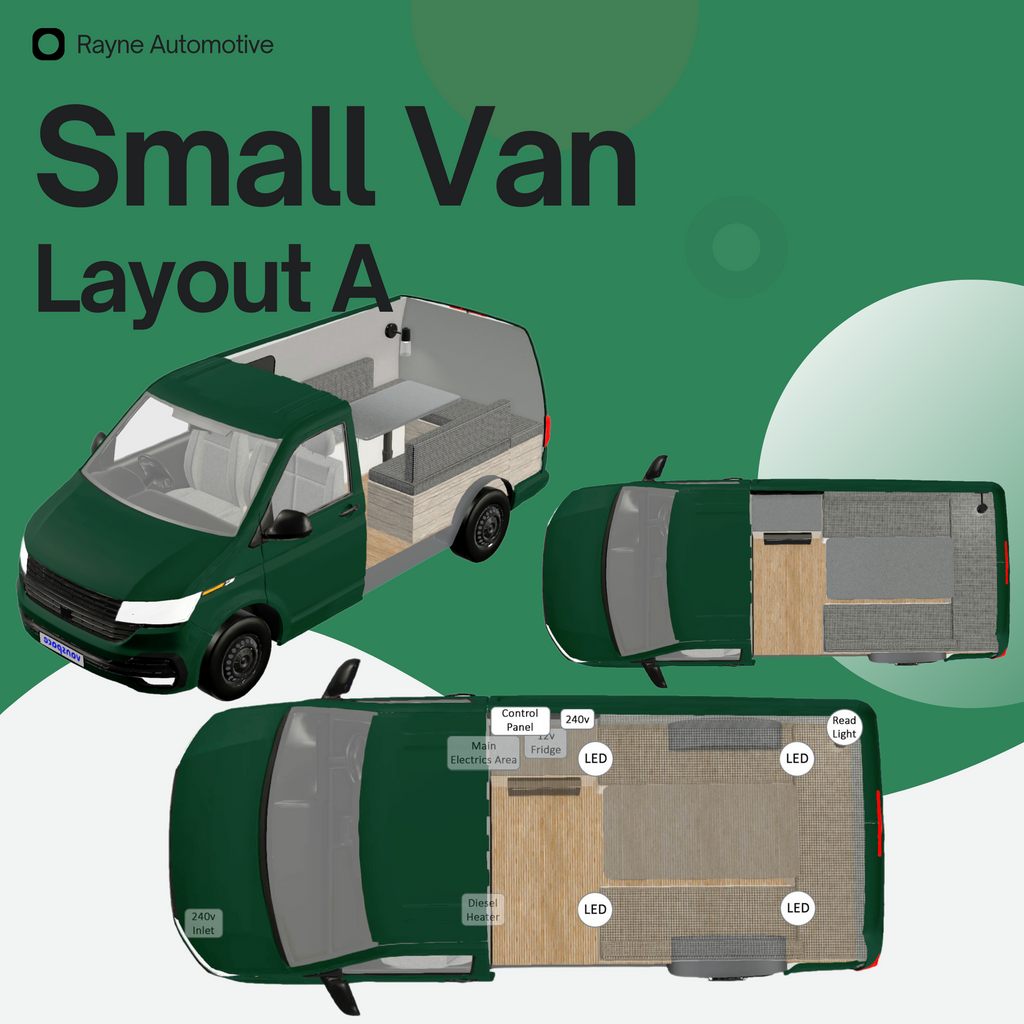

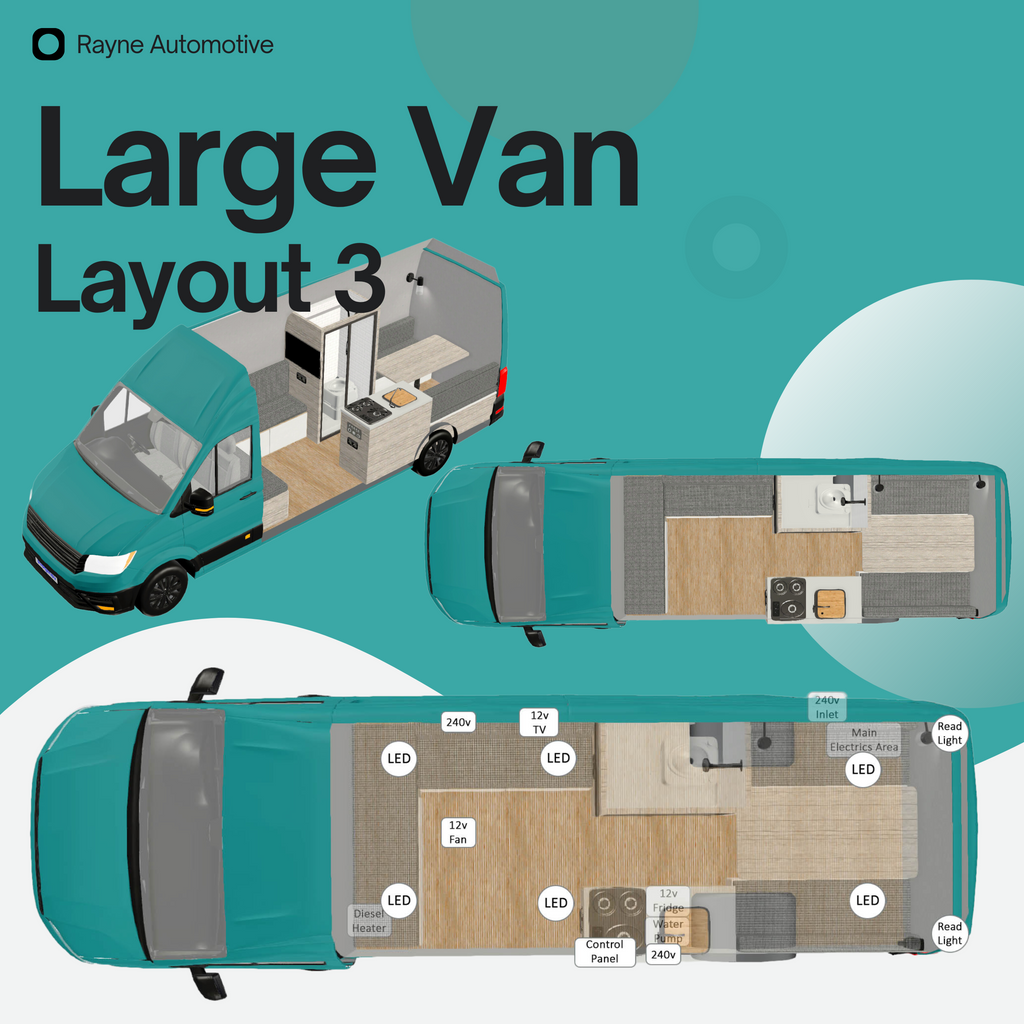

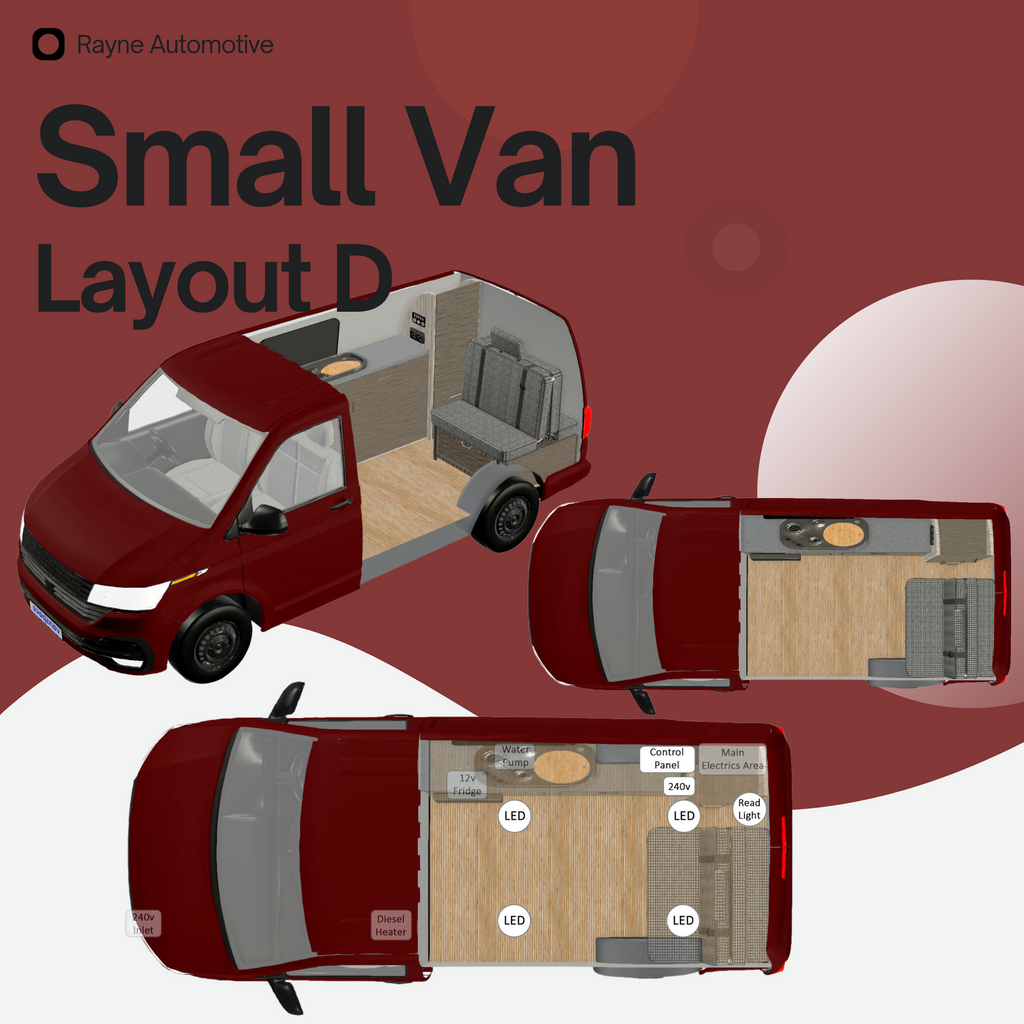

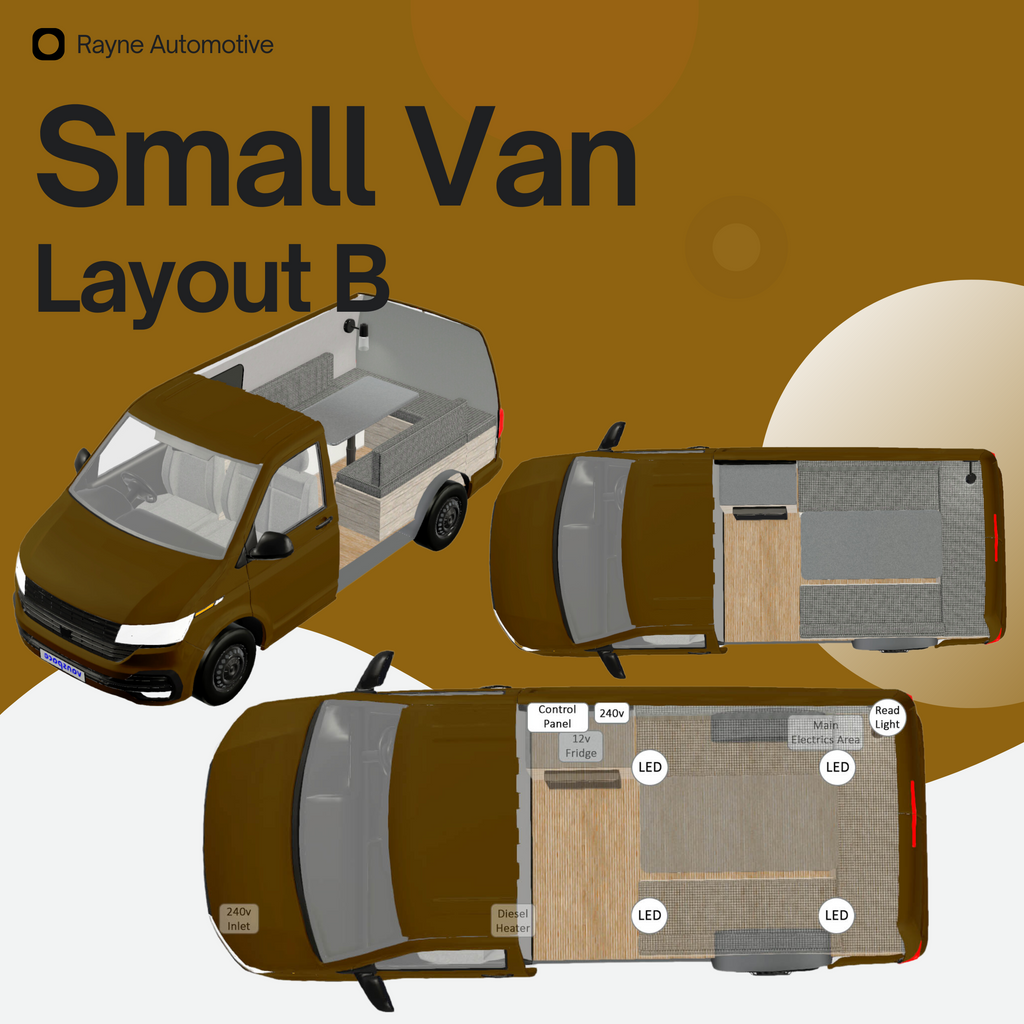

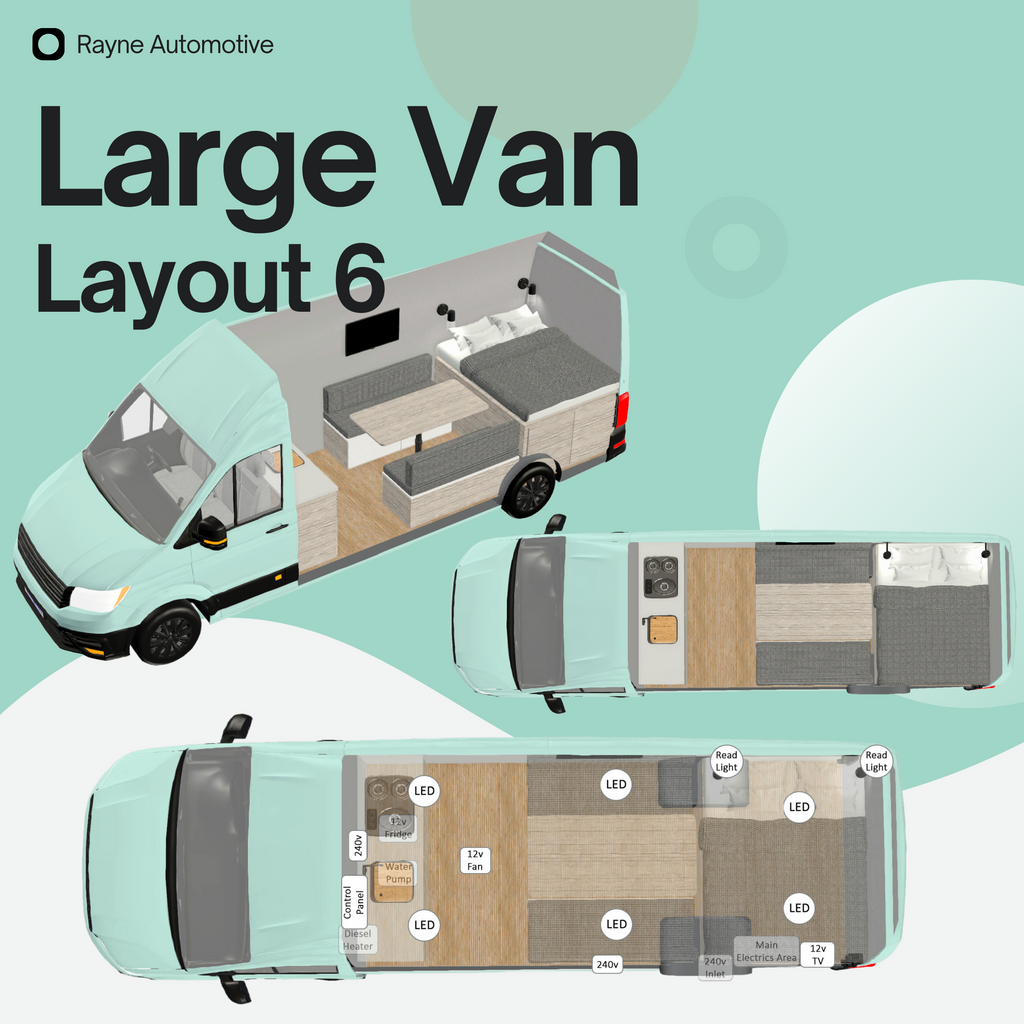

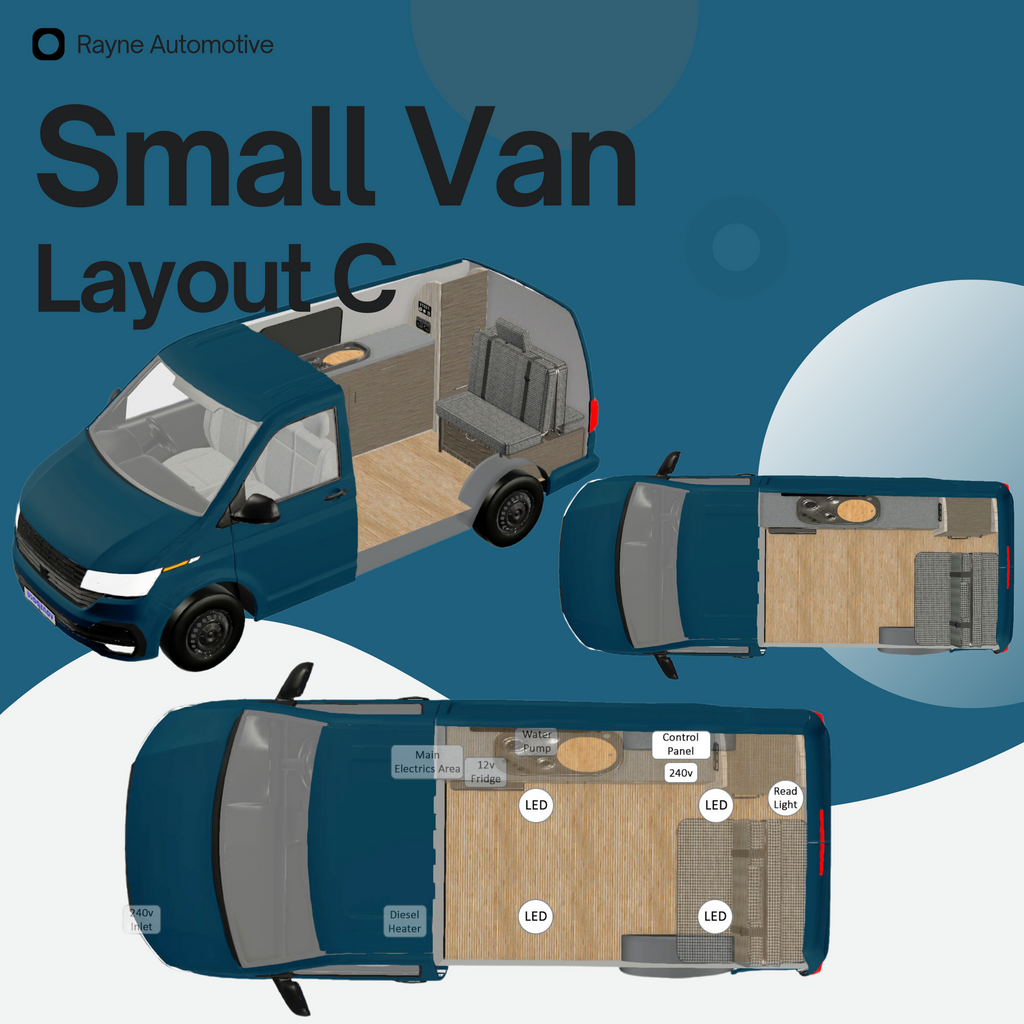

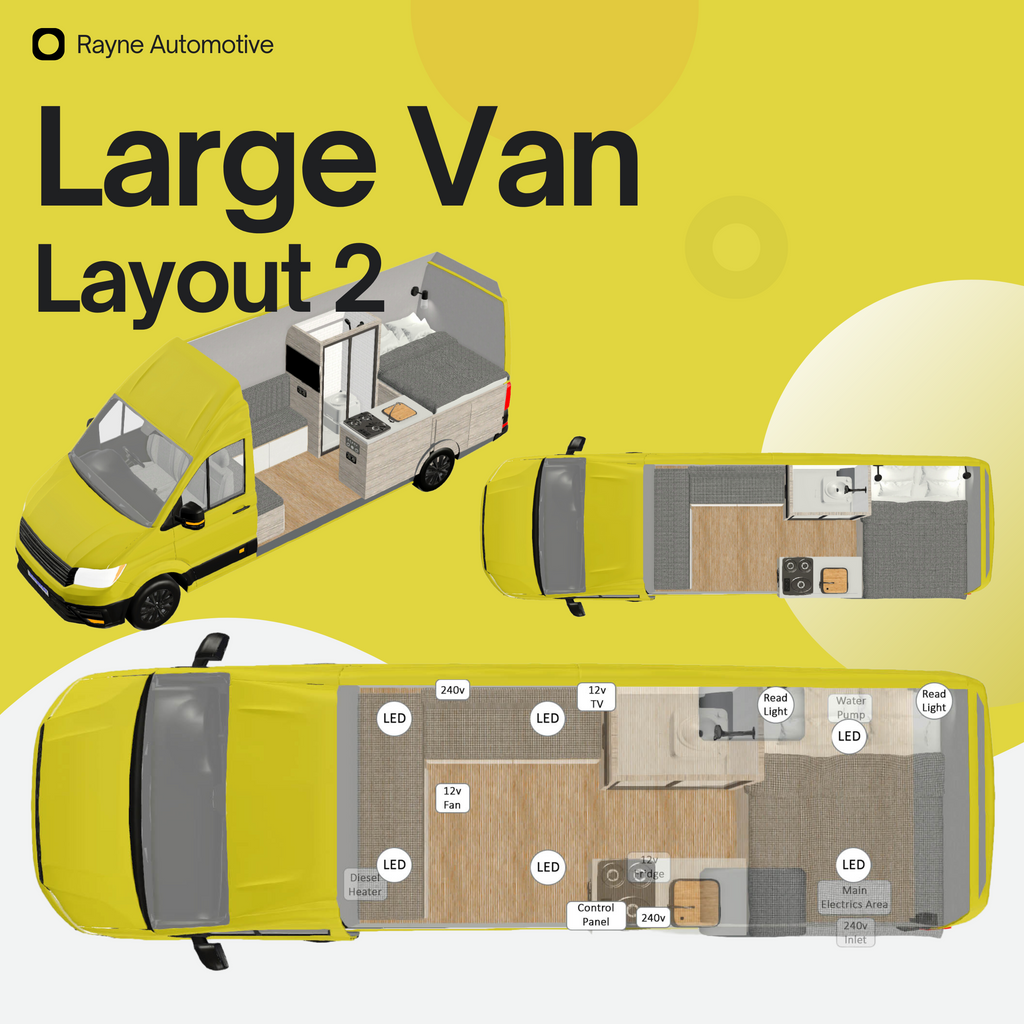

10 van-specific layouts — Small Van A–D and Large Van 1–6

📦 What's Included

Victron DC-DC charger (18A / 30A / XS 50A / XS 70A)

Van-specific battery cable kit (professionally crimped, sized to your charger)

12-way fuse box

Dual busbar & isolator set

Van layout wiring loom (10 layouts)

🔧 Tech Specs

Charger Options : Orion Smart 18A or 30A · Orion XS 50A or XS 70A
Bluetooth : Charge monitoring and configuration on all four chargers
Layouts : Small Van A–D · Large Van 1–6
Fuse Box : 12-way, busbar-fed
Busbars : Dual busbar & isolator set, fused to 100A

❓ FAQ

What's the difference between this and the Power Board version?

Same electrical spec, different format. The Power Board version arrives as pre-wired, tested panels — the fastest, tidiest install. The install kit features pre-cut, professionally crimped cables for the split charge and fuse box — a self-mounted, connected install up to the fuse box. From the fuse box onward you self-wire unless you add the van layout wiring loom — more freedom, slightly less precision.

Which charger should I pick?

Match the charger to your leisure battery: 18A suits small AGM systems, 30A covers most mid-size builds, and the XS 50A / XS 70A recover bigger lithium banks fastest. All four charge lithium and AGM.

What if my layout doesn't match?

Pick the closest of the 10 layouts at checkout and note your actual furniture plan — every loom is built to order. You Might Also Need: leisure battery · solar panel kit · mains hook-up kit

Vendor:	Rayne Automotive
Type:	DC Battery Systems
DC-DC Charger:	18A, 30A, XS 50A, XS 70A
Van Layout:	Small Van A, Small Van B, Small Van C, Small Van D, Large Van 1, Large Van 2, Large Van 3, Large Van 4, Large Van 5, Large Van 6
SKU:	COREKIT-18A-SVA
