Β£186.09 (options vary)
Warranty 1 year
Available to order
183 five-star Google reviews
Delivery
We're closed for a family wedding from Monday 26 to Wednesday 28 October. Orders placed during this time are processed when we reopen on Thursday 29 October.
Free UK delivery on orders over £50
Every option below is priced live from the shop. Choose on this page or in the panel above.
| Option | Price |
|---|---|
| 15A | Β£186.09 |
| 30A | Β£262.87 |
| 50A | Β£296.85 |
| 45A (150V) | Β£333.85 |

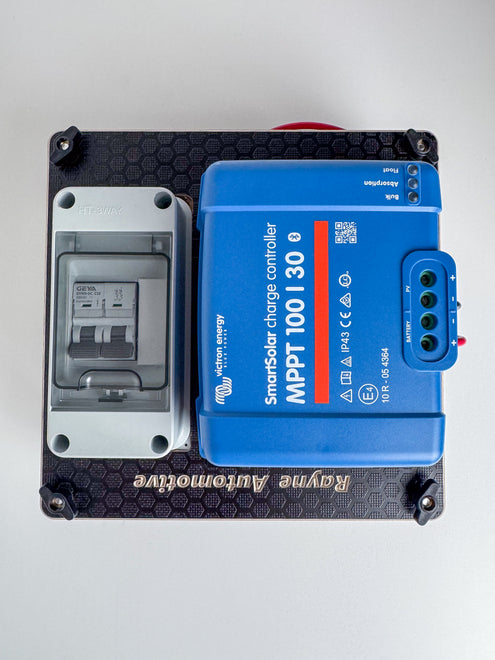

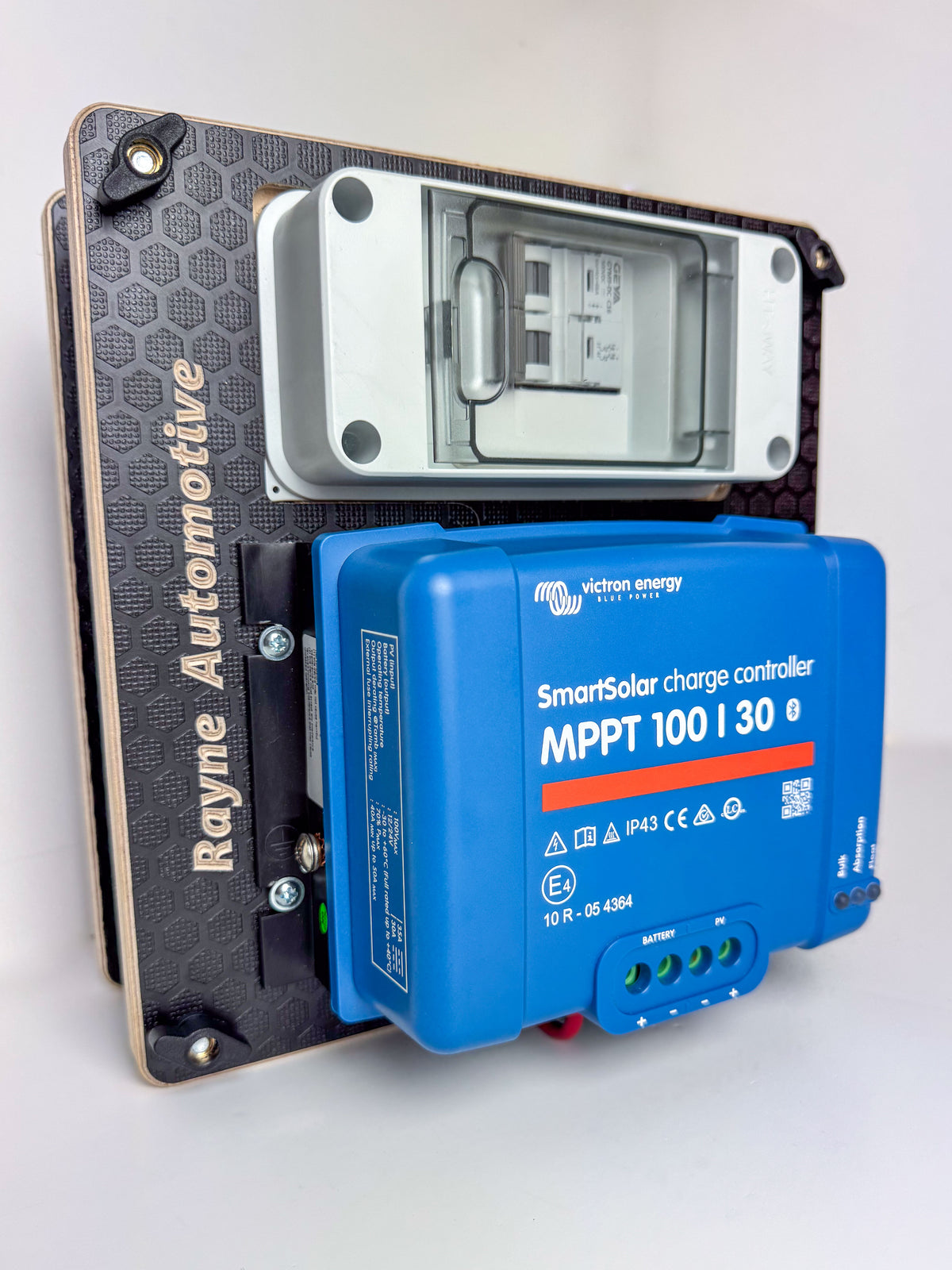

The Rayne solar PV board is the third board in our modular camper electrics system. It has a PV isolator (DC circuit breaker) and a Victron Smart Solar Bluetooth-compatible charge controller, so you can monitor your data. The DC output goes through an Anderson plug to the 12 volt board, and power from the roof panel connects with MC4 connectors. Every cable is labeled and color-coded, and the connectors only fit one way.
Combines a high-efficiency Victron SmartSolar MPPT charge controller and a DC circuit breaker PV isolator switch onto a single pre-wired, CNC-cut phenolic plywood panel. Eliminates complex bench wiring whilst providing safe DC power isolation for rapid installation and easy maintenance. The pre-mounted backplate ensures full safety compliance and clean cable management in your electrical cupboard. Available in 15A, 30A, 45A, and 50A controller variants for solar arrays from 200W to 800W+, this board is the ideal choice for a professional plug-and-play setup.
| Controller | Max Panels (Parallel) | Max Panels (Series) | Cold Weather Safe | Best For | ||
|---|---|---|---|---|---|---|
| PV POWER BOARD VARIANTS) | Headers: Controller | Max Panels (Parallel) | Max Panels (Series) | Cold Weather Safe | Best For | |
| Rows | 15A (75/15): 1x 150W or 1x 190W | Not recommended | No | Entry-level single panel | ||
| 30A (100/30) | 2-3x 150W or 190W | 2x 190W (47V) | Marginal | Multi-panel parallel setups | ||
| 45A (150/45) | 4+ panels | 4x 190W (94V) | Yes | Series arrays / cold weather protection | ||
| 50A (100/50) | 3-4x 150W or 190W | 2x 190W (47V) | Marginal | SCHEMATIC: | ||
| PLACEHOLDER β Solar PV Power Board wiring diagram to be inserted] Shows | Victron SmartSolar MPPT controller | rotary PV isolator switch | MC4 input connectors from solar array | Anderson output connector to 12V power board | MIDI output fuse | and battery connection points. |
[Schematic to be inserted]
Shows how this product fits within the larger camper electrics system.
The board comes in 15 amp, 30 amp and 50 amp versions. There is also a 150 volt 45 amp version for higher voltage panel arrays.
Yes. The charge controller is a Victron Smart Solar and is Bluetooth compatible, for data monitoring.
Power from the roof panel connects with MC4 connectors, which only plug in one way.
The DC output goes through a yellow Anderson plug into the 12 volt board.
Yes. The board has a PV isolator, which is a DC circuit breaker.
Phone consultations with our designers and technicians, email, WhatsApp, and the online knowledge base.
Yes. Use the System Builder for a full specification, or book a consultation and tell us what you want to run and what is already fitted.
Yes. Van converters can apply for a Rayne Automotive trade account for kit pricing and support.
Yes. The Help Centre carries installation instructions, and the team supports what it sells.
Plan the charging, storage and distribution together with the System Builder, browse the example complete systems, or book a consultation and tell us what you want to run and what is already fitted.
